Bosch Rexroth 3842547077

CURVE 90+ HOR AL 30° R700

MPN: 3842547077
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547077?

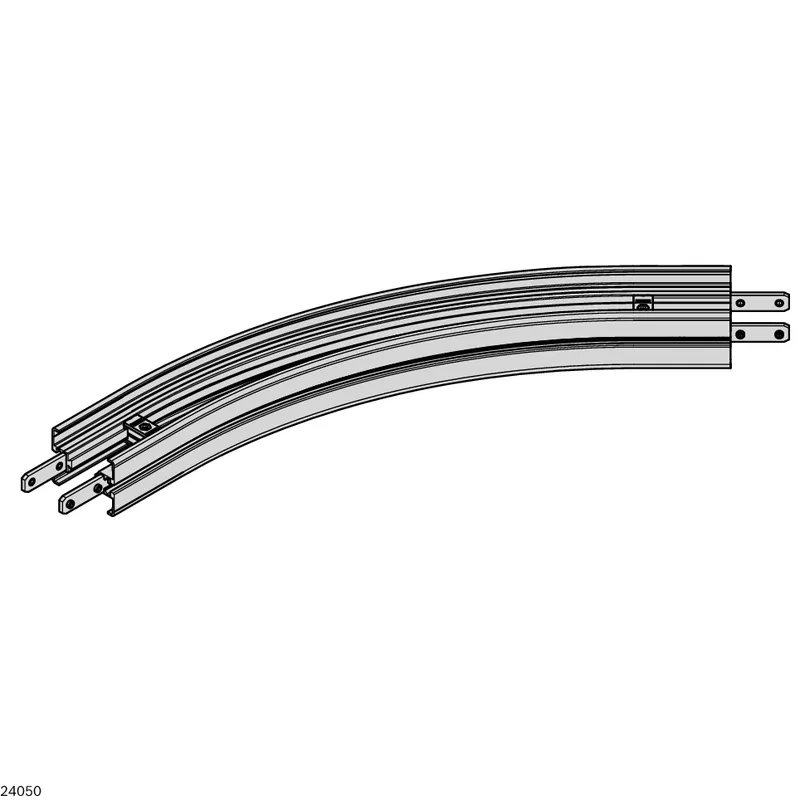

Sliding curve horizontal AL VFplus 90 30° R700

The sliding curve provides a horizontal change in direction for the chain, for when there is not enough space for a curve wheel or the speeds or product dimensions do not permit conveying over a curve wheel

Specifications

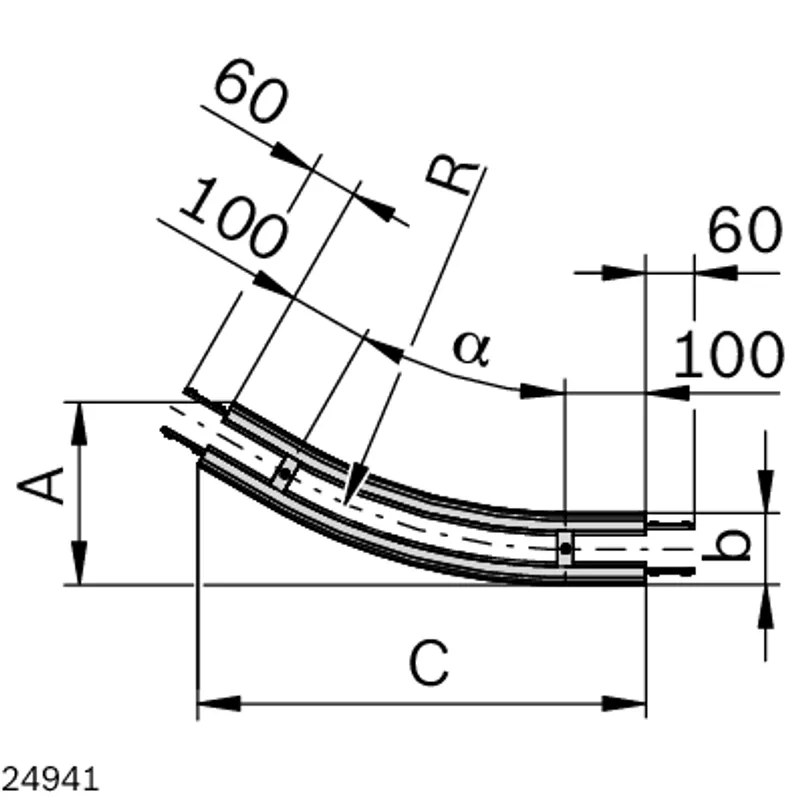

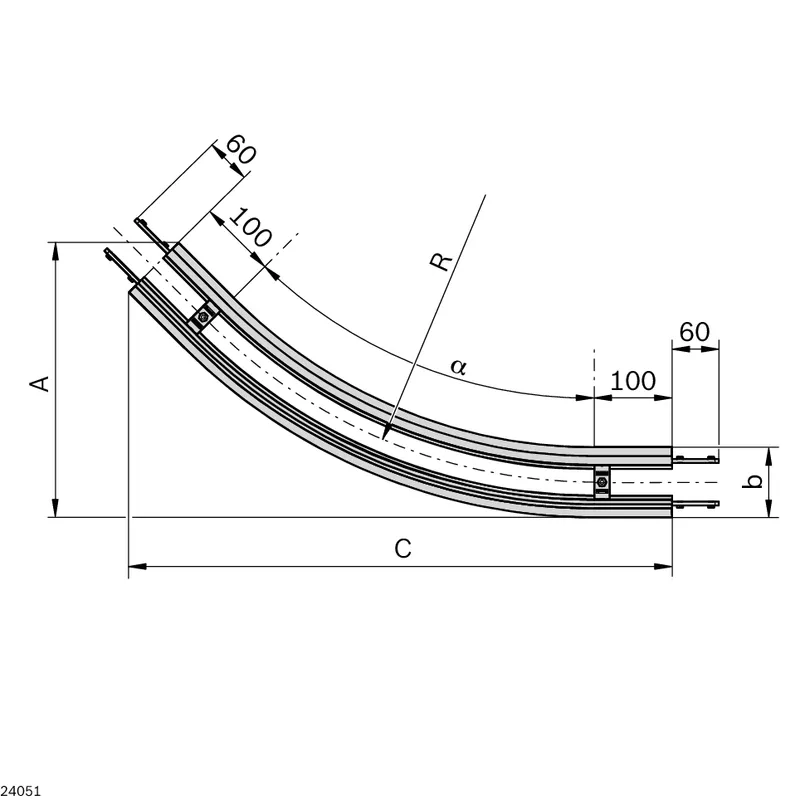

Deflection angle [α] [°]	30
Dimension A [mm] [mm]	277.8
Size [b] [mm]	90
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Cross connector: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized
Actual chain length [m]	2x 0,56
Effective sliding rail length [m]	4x 0,56
Required accessories	Slide rail: Length calculation
Weight [kg]	1.7
