Mechanical accessories for linear axes Parts
Compare Mechanical accessories for linear axes
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mechanical accessories for linear axes | Nominal size [mm] | Outer diameter D [mm] | Weight [kg] | Dimension D [mm] |
|---|---|---|---|---|---|
| R039660543 | Centering rings | 7 | 3.0 | 0.01 | 3 |

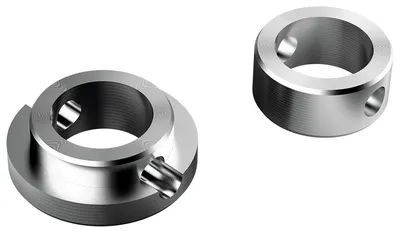

| R039660542 | Centering rings | 5 | 3.0 | 0.01 | 3 |
| R039660551 | Centering rings | 16 - 12 | 5.0 | 0.01 | 5 |
| R039660546 | Centering rings | 16 | 6.0 | 0.01 | 6 |
| R039660550 | Centering rings | 12 - 9 | 4.0 | 0.01 | 4 |
| R039660577 | Centering rings | 12 - 7 | 3.5 | 0.01 | 3.5 |
| R039660545 | Centering rings | 12 | 4.0 | 0.01 | 4 |
| R141900037 | Mounting flanges | VKK-100 | — | 0.34 | — |
| R141900036 | Mounting flanges | VKK-070 | — | 0.35 | — |

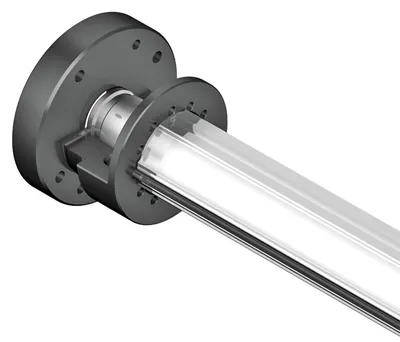

| R141900035 | Mounting flanges | VKK-050 | — | 0.36 | — |

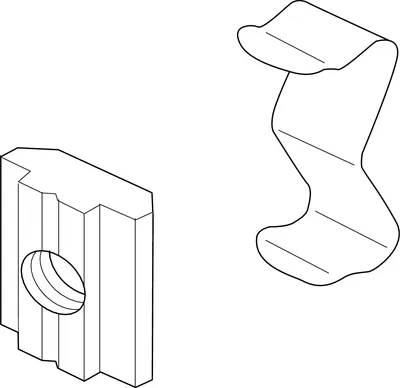

| R345403049 | Sliding blocks and springs | MKK-/MKR-165; MKR-145 | — | 0.75 | — |
| R037520009 | Cover | 70 | — | 0.02 | — |

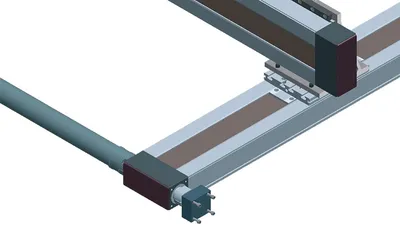

| R037550009 | Cover | 145 | — | 0.12 | — |
| R037540009 | Cover | 110 | — | 0.08 | — |
| R037530009 | Cover | 90 | — | 0.05 | — |

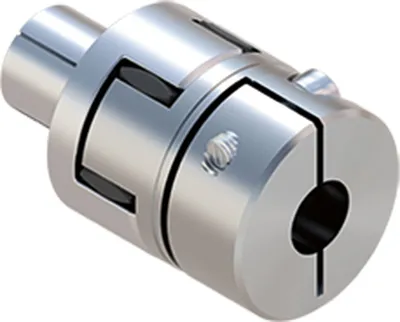

| R913067250 | Coupling | — | 41.0 | 0.18 | 41 |
| R039151011 | Connecting shafts | 140; 165 | 35.0 | 29.43 | 35 |
| R039151013 | Connecting shafts | 110; 145 | 18.0 | 2.78 | 18 |

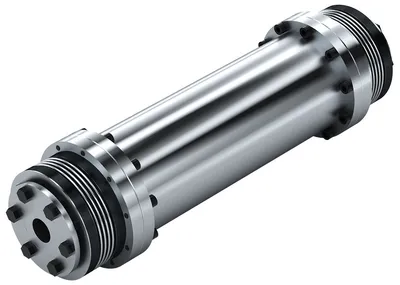

| R039151012 | Connecting shafts | 80/110/145 | 18.0 | 9.71 | 18 |
| R039151014 | Connecting shafts | 80 | 18.0 | 1.8 | 18 |
| R039151015 | Connecting shafts | 65 | 16.0 | 1.17 | 16 |

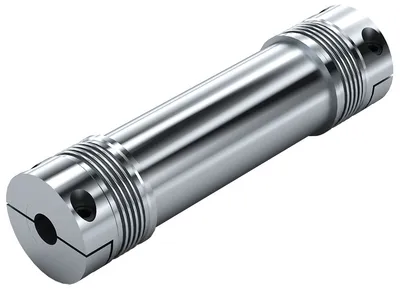

| R039151021 | Connecting shafts | 40 | 10.0 | 295.2 | 10 |

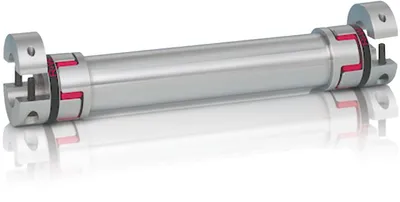

| R039151022 | Connecting shafts | 70 | 8.0 | 502.7 | 8 |

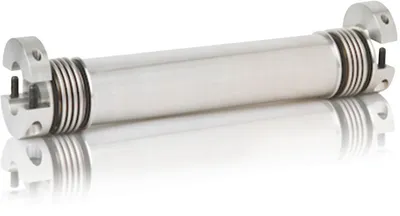

| R039151019 | Connecting shafts | 200 | 24.0 | 8.2 | 24 |
