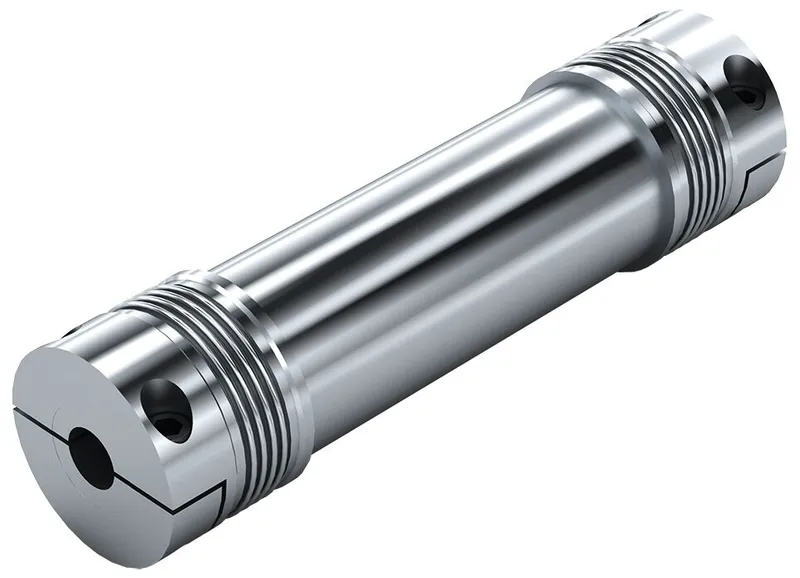

CONNECTING SHAFT MKR-080 / MLR-080

Name: CONNECTING SHAFT MKR-080 / MLR-080
Brand: Bosch Rexroth
SKU: R039151014

MPN: R039151014 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mechanical accessories for linear axes
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R039151014 be shipped?

R039151014 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R039151014 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R039151014 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R039151014, subject to availability and destination.

Compensation of misalignments Backlash-free and torsionally stiff Bridge large distances between axes Clamping hub (mounting and removal without shifting aligned axes) Dynamically balanced as per VDI 2060

Specifications

Mechanical accessories for linear axes	Connecting shafts
Nominal size [mm]	80
Outer diameter D [mm]	18.0
Torque [Nm]	60
Weight [kg]	1.8

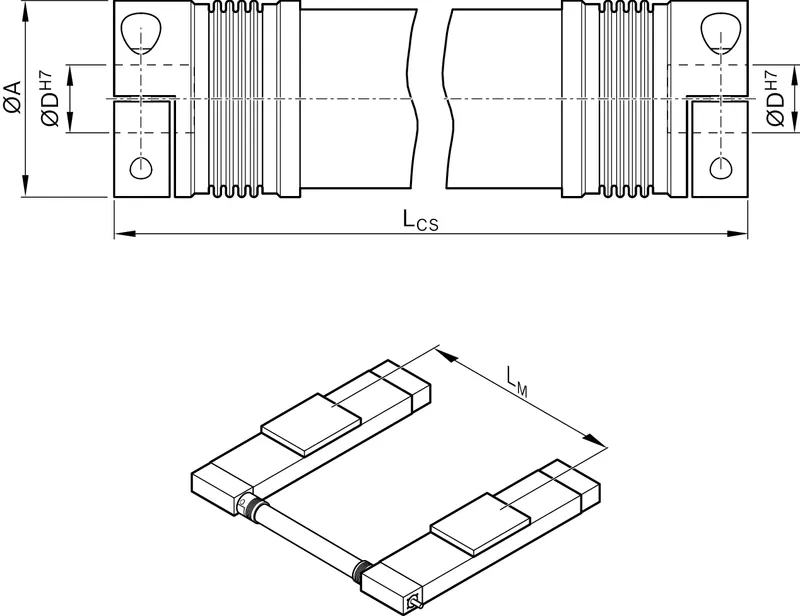

Overall length of the connecting shaft Lcs	LM – 144 mm
Mass m	0.85 + 0.00145 x (L<sub>cs</sub> – 120)
Mass moment of inertia	510 + 1.18 x (L<sub>cs</sub> – 120)
Shaft design for connecting shafts	4
Dimension A (profiled rail systems) [mm]	66
Dimension D [mm]	18
Dimension Lcs max. [mm]	4000
Dimension Lcs min. [mm]	171
