Mechanical accessories for linear axes Parts
Compare Mechanical accessories for linear axes
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Weight [kg] | Dimension A (profiled rail systems) [mm] | Dimension B (profiled rail systems) [mm] | Dimension C [mm] |
|---|---|---|---|---|---|
| R037541041 | CKK-/CKR-110/145 | 0.05 | 107 | 8.5 | 18 |

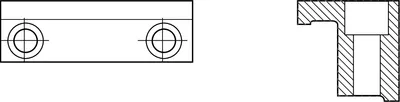

| R037541052 | OBB-085 | 0.1 | 68 | 15 | 38 |
| R037541050 | OBB-120 | 0.13 | 88 | 19 | 50 |
| R117519201 | MKR-080 | 0.03 | 62 | 11 | 40 |
| R117539014 | MKK-/MKR-140/-165 | 0.47 | 163 | 29 | 105 |
| R117529044 | MKR-145 | 0.38 | 163 | 29 | 105 |

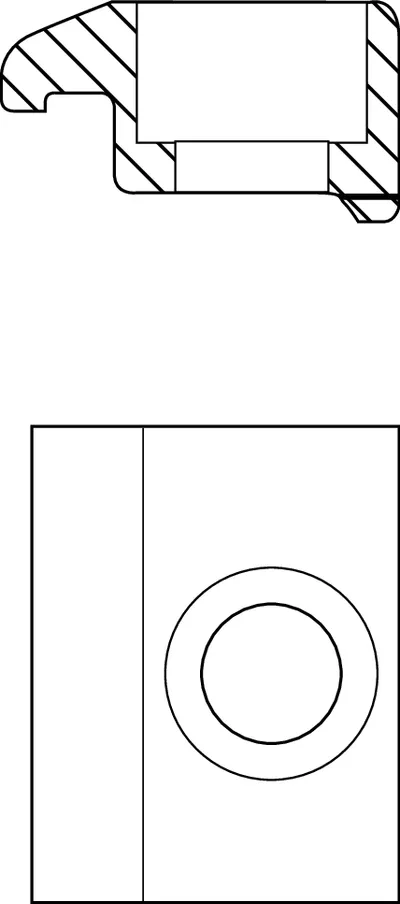

| R117529026 | CKK-/CKR-200; MKK-/MKR-/MLR-110; OBB-120 | 0.15 | 108 | 19 | 70 |
| R117519200 | MKR-080 | 0.01 | 25 | — | — |
| R117519024 | MKK-/MKR-/MLR-080; MKK-/MKR-065 | 0.06 | 78 | 14 | 50 |

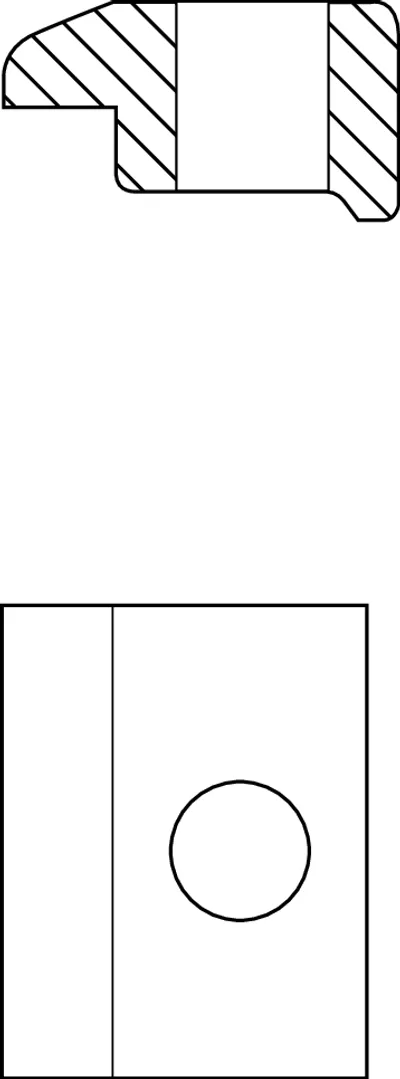

| R117519202 | MKR-080 | 0.07 | 142 | 11 | 40 |
| R039171083 | — | 0.02 | 14 | 5 | 7 |
| R039171082 | — | 0.01 | 12 | 3.5 | 6 |
| R039171084 | CKK-/CKR-280 | 0.15 | 12 | 18 | 14 |
| R037570025 | 280-DB | 7.24 | 278 | — | 30 |
