Schneider Electric

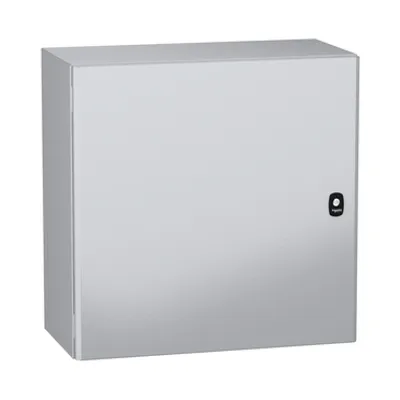

NSYS3DC6630Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x600x300mm, IP66, IK10
PanelSeT S3D Parts
Schneider Electric

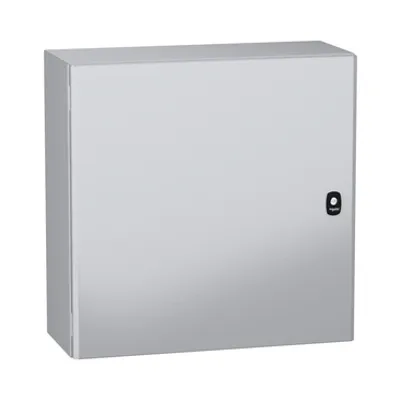

NSYS3DC6625Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x600x250mm, IP66, IK10
Schneider Electric

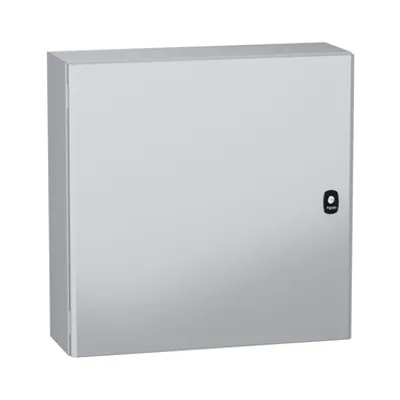

NSYS3DC6620Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x600x200mm, IP66, IK10
Schneider Electric

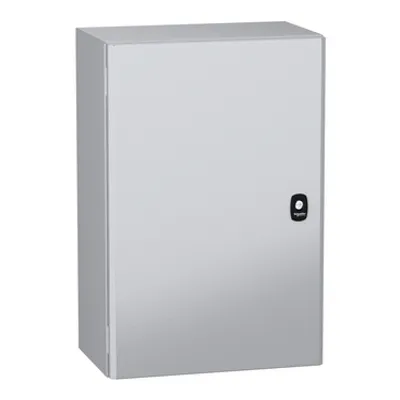

NSYS3DC6425Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x400x250mm, IP66, IK10
Schneider Electric

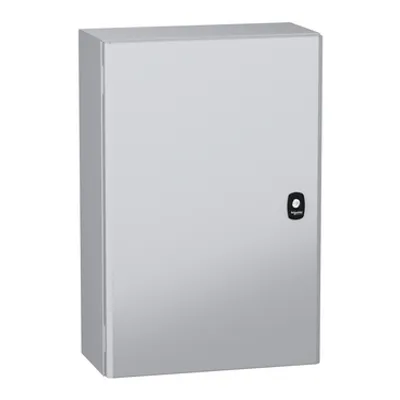

NSYS3DC6420Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x400x200mm, IP66, IK10
Schneider Electric

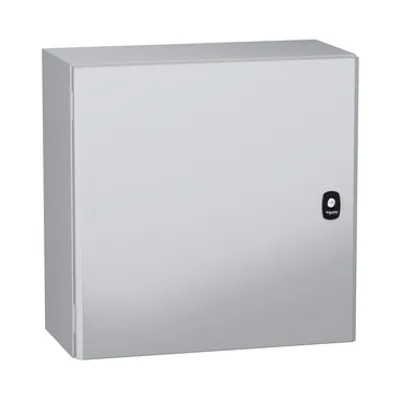

NSYS3DC5525Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 500x500x250mm, IP66, IK10
Schneider Electric

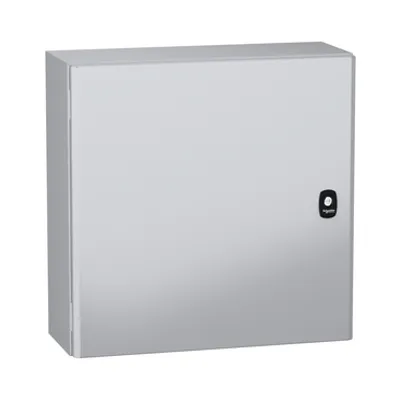

NSYS3DC5520Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 500x500x200mm, IP66, IK10
Schneider Electric

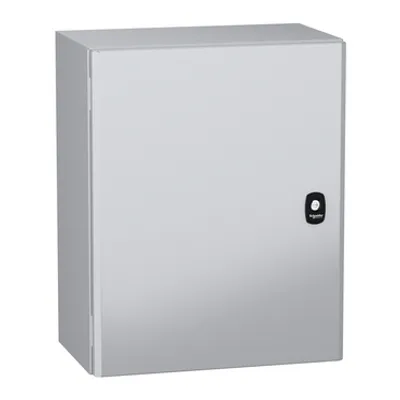

NSYS3DC5425Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 500x400x250mm, IP66, IK10
Schneider Electric

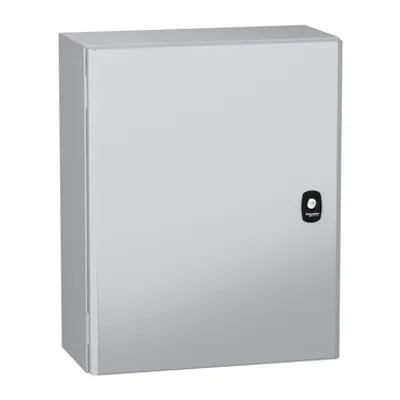

NSYS3DC5420Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 500x400x200mm, IP66, IK10
Schneider Electric

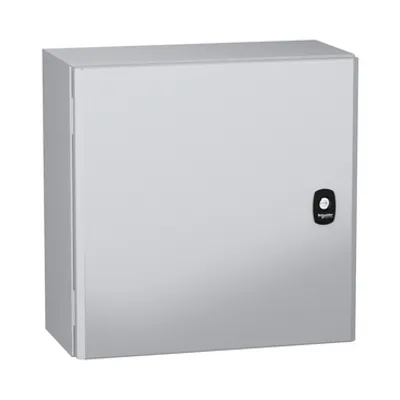

NSYS3DC4420Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x400x200mm, IP66, IK10
Schneider Electric

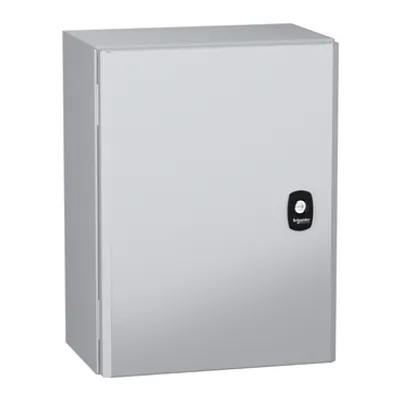

NSYS3DC4320Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x300x200mm, IP66, IK10
Schneider Electric

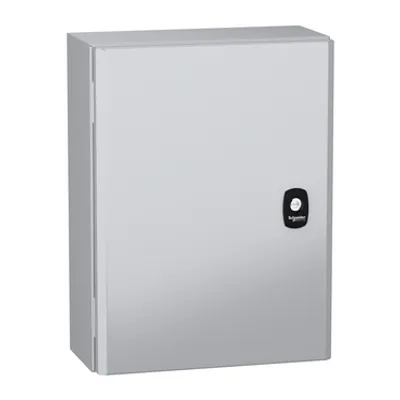

NSYS3DC4315Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x300x150mm, IP66, IK10
Schneider Electric

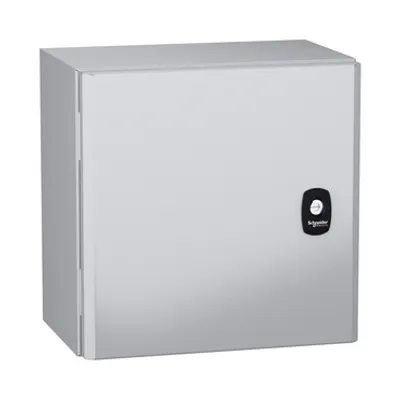

NSYS3DC3320Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 300x300x200mm, IP66, IK10
Schneider Electric

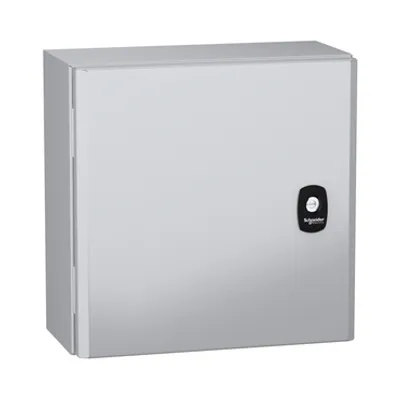

NSYS3DC3315Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 300x300x150mm, IP66, IK10
Schneider Electric

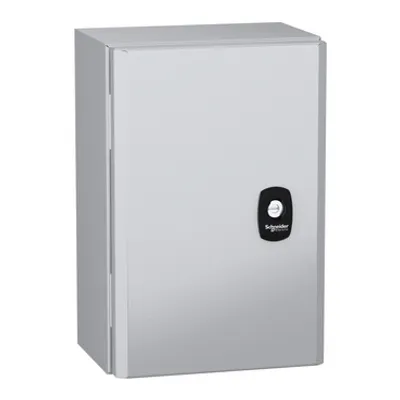

NSYS3DC3215Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 300x200x150mm, IP66, IK10
Schneider Electric

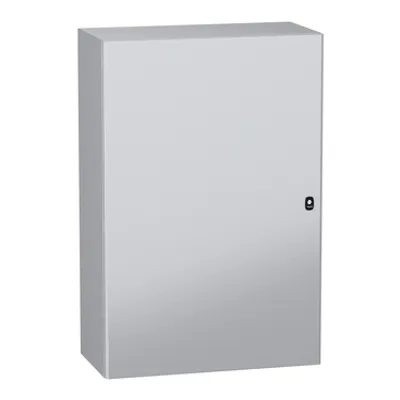

NSYS3DC12840Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1200x800x400mm, IP66, IK10
Schneider Electric

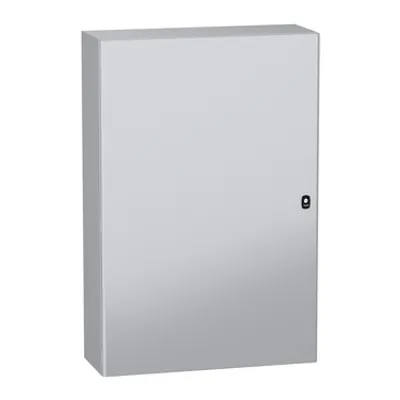

NSYS3DC12830Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1200x800x300mm, IP66, IK10
Schneider Electric

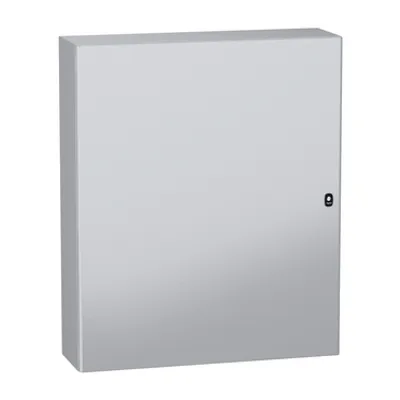

NSYS3DC121030Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1200x1000x300mm, IP66, IK10
Schneider Electric

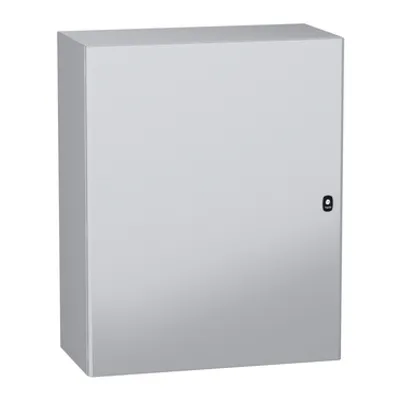

NSYS3DC10840Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x400mm, IP66, IK10
Schneider Electric

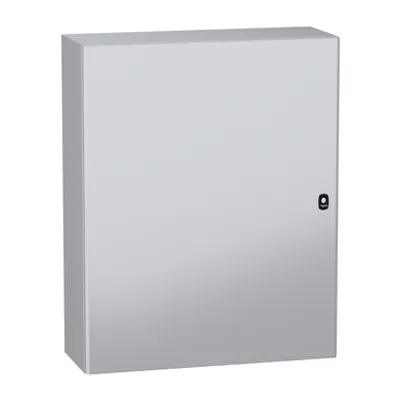

NSYS3DC10830Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x300mm, IP66, IK10
Schneider Electric

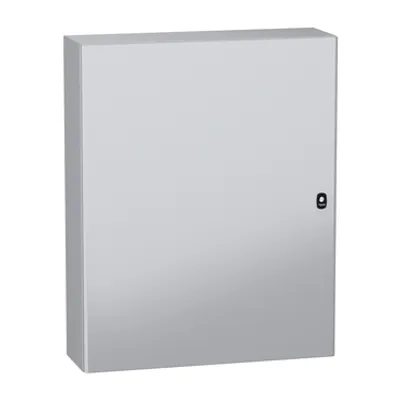

NSYS3DC10825Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x250mm, IP66, IK10
Schneider Electric

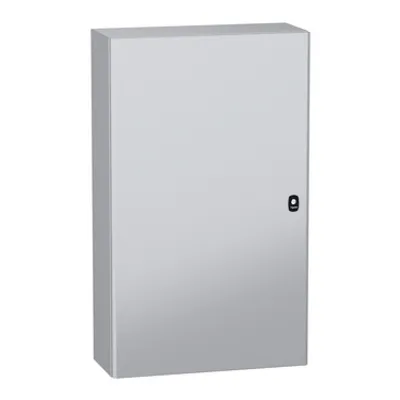

NSYS3DC10625Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x600x250mm, IP66, IK10
Schneider Electric

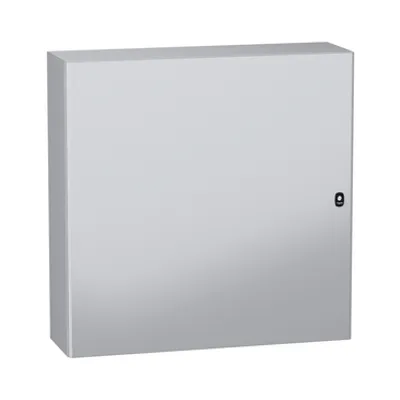

NSYS3DC101030Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x1000x300mm, IP66, IK10
Schneider Electric

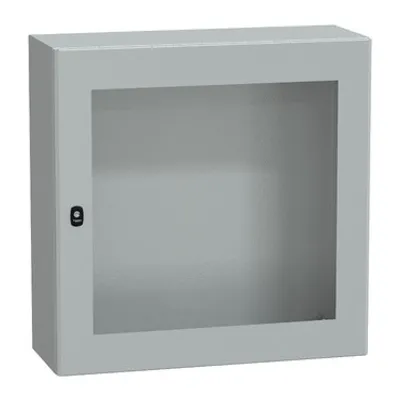

NSYS3D8830TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x800x300mm, IP66, IK08
Compare PanelSeT S3D
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Enclosure nominal height | Enclosure nominal width | Enclosure nominal depth | Lock type | Net weight |
|---|---|---|---|---|---|
| NSYS3DC6630 | 600 mm | 600 mm | 300 mm | 3 points lock, screw driver insert | 17.4 kg |
| NSYS3DC6625 | 600 mm | 600 mm | 250 mm | 3 points lock, screw driver insert | 16.1 kg |
| NSYS3DC6620 | 600 mm | 600 mm | 200 mm | 3 points lock, screw driver insert | 14 kg |
| NSYS3DC6425 | 600 mm | 400 mm | 250 mm | 3 points lock, screw driver insert | 12 kg |
| NSYS3DC6420 | 600 mm | 400 mm | 200 mm | 3 points lock, screw driver insert | 11.4 kg |
| NSYS3DC5525 | 500 mm | 500 mm | 250 mm | Screw driver insert lock | 11.15 kg |
| NSYS3DC5520 | 500 mm | 500 mm | 200 mm | Screw driver insert lock | 10.4 kg |
| NSYS3DC5425 | 500 mm | 400 mm | 250 mm | Screw driver insert lock | 9.75 kg |
| NSYS3DC5420 | 500 mm | 400 mm | 200 mm | Screw driver insert lock | 8.9 kg |
| NSYS3DC4420 | 400 mm | 400 mm | 200 mm | Screw driver insert lock | 7.25 kg |
| NSYS3DC4320 | 400 mm | 300 mm | 200 mm | Screw driver insert lock | 6.2 kg |
| NSYS3DC4315 | 400 mm | 300 mm | 150 mm | Screw driver insert lock | 5.4 kg |
| NSYS3DC3320 | 300 mm | 300 mm | 200 mm | Screw driver insert lock | 4.508 kg |
| NSYS3DC3315 | 300 mm | 300 mm | 150 mm | Screw driver insert lock | 4.352 kg |
| NSYS3DC3215 | 300 mm | 200 mm | 150 mm | Screw driver insert lock | 3.007 kg |
| NSYS3DC12840 | 1200 mm | 800 mm | 400 mm | 3 points lock, screw driver insert | 50 kg |
| NSYS3DC12830 | 1200 mm | 800 mm | 300 mm | 3 points lock, screw driver insert | 44.6 kg |
| NSYS3DC121030 | 1200 mm | 1000 mm | 300 mm | 3 points lock, screw driver insert | 52.3 kg |
| NSYS3DC10840 | 1000 mm | 800 mm | 400 mm | 3 points lock, screw driver insert | 42 kg |
| NSYS3DC10830 | 1000 mm | 800 mm | 300 mm | 3 points lock, screw driver insert | 34.2 kg |
| NSYS3DC10825 | 1000 mm | 800 mm | 250 mm | 3 points lock, screw driver insert | 32.6 kg |
| NSYS3DC10625 | 1000 mm | 600 mm | 250 mm | 3 points lock, screw driver insert | 25.5 kg |
| NSYS3DC101030 | 1000 mm | 1000 mm | 300 mm | 3 points lock, screw driver insert | 45 kg |
| NSYS3D8830T | 800 mm | 800 mm | 300 mm | 3 points lock, 3 mm double-bar | 31 kg |
Common to all listed parts
| Range | PanelSeT |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Mounting plate description | Without mounting plate |
| Installation accessory type | Wall-mounting |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Accessibility for operation | Front |
