Schneider Electric NSYS3DC4315

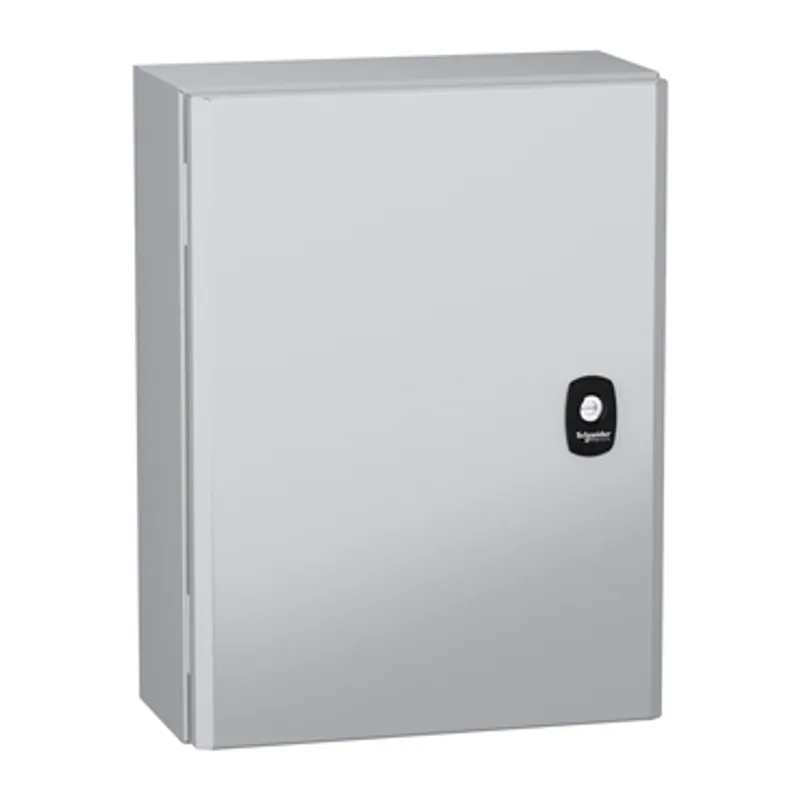

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x300x150mm, IP66, IK10
- MPN
- NSYS3DC4315
- EAN
- 3606480314001
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYS3DC4315 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYS3DC4315?
Schneider Electric Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x300x150mm, IP66, IK10, manufacturer part number NSYS3DC4315. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DC |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Single piece body, Gutter-shaped front profile double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | Screw driver insert lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL |
| Net weight | 5.4 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 50.000 cm × 32.000 cm × 20.000 cm (L × W × H), 5.400 kg |
| Package 2 | 48 PAM, 120.000 cm × 100.000 cm × 142.000 cm (L × W × H), 277.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3DC4315: frequently asked questions
Can I still buy the NSYS3DC4315 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYS3DC4315, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYS3DC4315 be shipped?
NSYS3DC4315 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DC4315 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DC4315 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DC4315, subject to availability and destination.
