Schneider Electric
NSYS3D8830PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x800x300mm, IP66, IK10
PanelSeT S3D Parts
Schneider Electric
NSYS3D8830Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x800x300mm, IP66, IK10
Schneider Electric

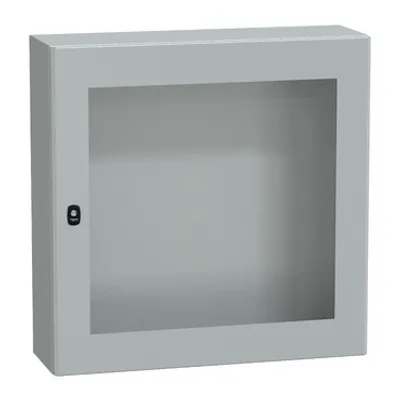

NSYS3D8825TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x800x250mm, IP66, IK08
Schneider Electric

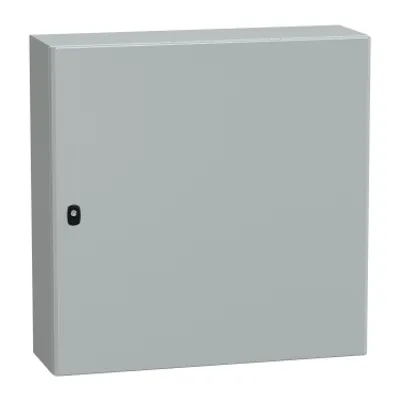

NSYS3D8825PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x800x250mm, IP66, IK10
Schneider Electric
NSYS3D8825Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x800x250mm, IP66, IK10
Schneider Electric

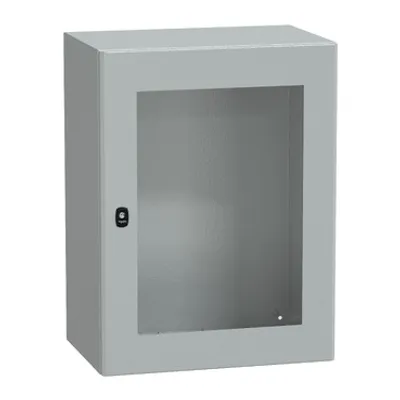

NSYS3D8640TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x600x400mm, IP66, IK08
Schneider Electric

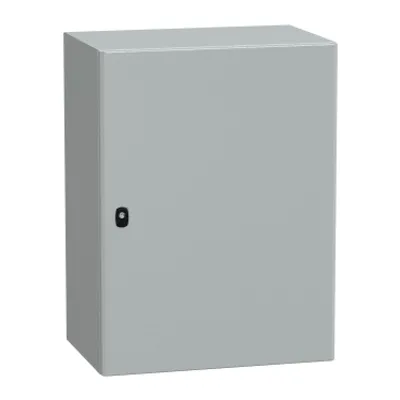

NSYS3D8640PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x600x400mm, IP66, IK10
Schneider Electric

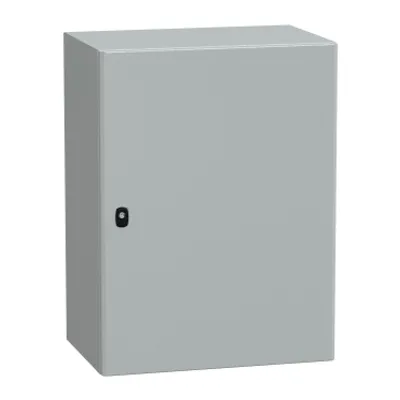

NSYS3D8640Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x600x400mm, IP66, IK10
Schneider Electric

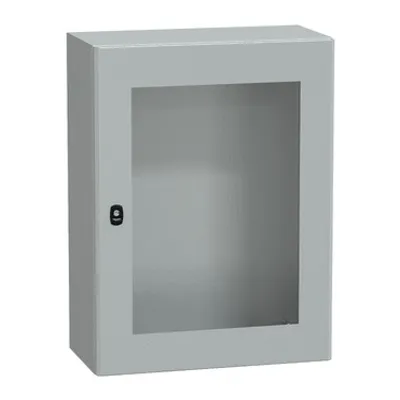

NSYS3D8630TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x600x300mm, IP66, IK08
Schneider Electric
NSYS3D8630PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x600x300mm, IP66, IK10
Schneider Electric

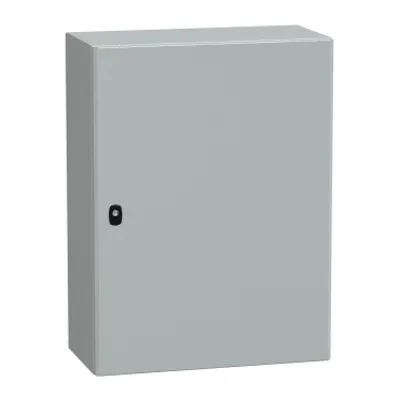

NSYS3D8630Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x600x300mm, IP66, IK10
Schneider Electric

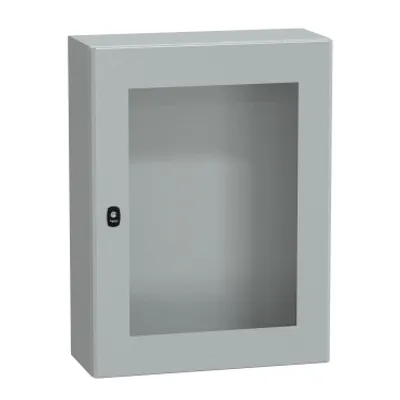

NSYS3D8625TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x600x250mm, IP66, IK08
Schneider Electric
NSYS3D8625PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x600x250mm, IP66, IK10
Schneider Electric

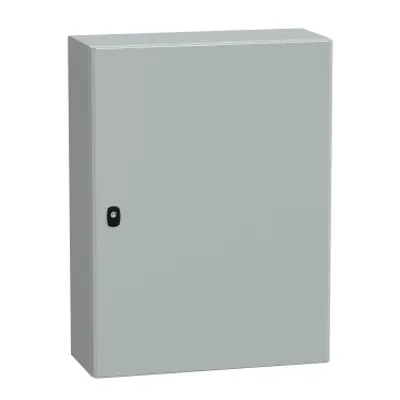

NSYS3D8625Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x600x250mm, IP66, IK10
Schneider Electric

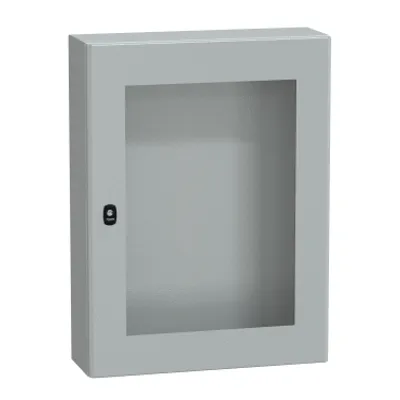

NSYS3D8620TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x600x200mm, IP66, IK08
Schneider Electric

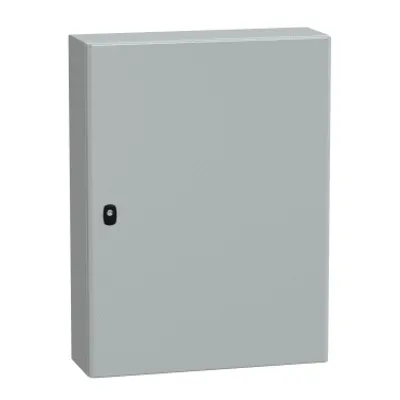

NSYS3D8620PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x600x200mm, IP66, IK10
Schneider Electric
NSYS3D8620Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x600x200mm, IP66, IK10
Schneider Electric

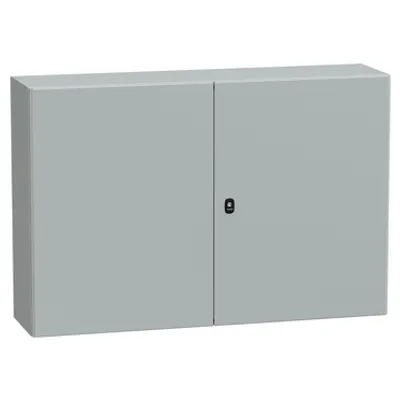

NSYS3D81230DPWall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 800x1200x300mm, IP55, IK10
Schneider Electric
NSYS3D81230DWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 800x1200x300mm, IP55, IK10
Schneider Electric
NSYS3D81030PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x1000x300mm, IP66, IK10
Schneider Electric
NSYS3D81030DPWall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 800x1200x300mm, IP55, IK10
Schneider Electric

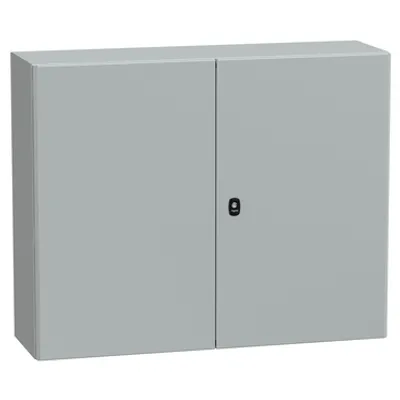

NSYS3D81030DWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 800x1000x300mm, IP55, IK10
Schneider Electric

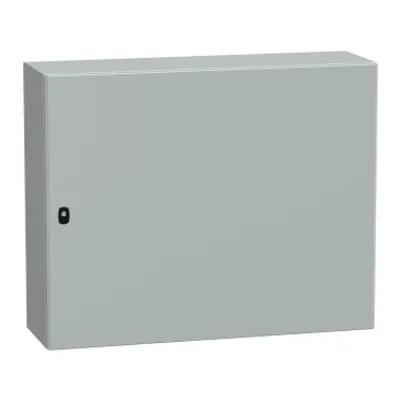

NSYS3D81030Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 800x1000x300mm, IP66, IK10
Schneider Electric

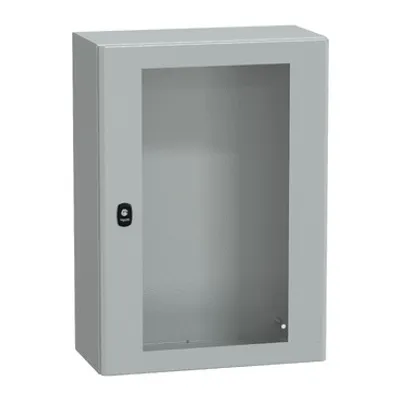

NSYS3D7525TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 700x500x250mm, IP66, IK08
Compare PanelSeT S3D
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Enclosure nominal height | Enclosure nominal width | Enclosure nominal depth | Product certifications | Net weight |
|---|---|---|---|---|---|
| NSYS3D8830P | 800 mm | 800 mm | 300 mm | DNV, BV, UL, GL, cUL | 42 kg |
| NSYS3D8830 | 800 mm | 800 mm | 300 mm | UL, DNV, cUL, GL, BV | 32 kg |
| NSYS3D8825T | 800 mm | 800 mm | 250 mm | GL, UL, DNV, BV, cUL | 29 kg |
| NSYS3D8825P | 800 mm | 800 mm | 250 mm | cUL, GL, UL, DNV, BV | 40 kg |
| NSYS3D8825 | 800 mm | 800 mm | 250 mm | BV, cUL, GL, UL, DNV | 30 kg |
| NSYS3D8640T | 800 mm | 600 mm | 400 mm | BV, cUL, GL, DNV, UL | 28 kg |
| NSYS3D8640P | 800 mm | 600 mm | 400 mm | GL, BV, UL, DNV, cUL | 36 kg |
| NSYS3D8640 | 800 mm | 600 mm | 400 mm | cUL, UL, BV, DNV, GL | 28.4 kg |
| NSYS3D8630T | 800 mm | 600 mm | 300 mm | UL, BV, cUL, GL, DNV | 24 kg |
| NSYS3D8630P | 800 mm | 600 mm | 300 mm | GL, UL, BV, cUL, DNV | 32 kg |
| NSYS3D8630 | 800 mm | 600 mm | 300 mm | DNV, GL, BV, cUL, UL | 25 kg |
| NSYS3D8625T | 800 mm | 600 mm | 250 mm | DNV, GL, cUL, UL, BV | 22 kg |
| NSYS3D8625P | 800 mm | 600 mm | 250 mm | GL, BV, UL, cUL, DNV | 27.8 kg |
| NSYS3D8625 | 800 mm | 600 mm | 250 mm | cUL, BV, GL, UL, DNV | 20.2 kg |
| NSYS3D8620T | 800 mm | 600 mm | 200 mm | GL, BV, UL, DNV, cUL | 21.5 kg |
| NSYS3D8620P | 800 mm | 600 mm | 200 mm | DNV, cUL, GL, UL, BV | 29 kg |
| NSYS3D8620 | 800 mm | 600 mm | 200 mm | UL, DNV, GL, BV, cUL | 21 kg |
| NSYS3D81230DP | 800 mm | 1200 mm | 300 mm | cUL, DNV, UL, GL, BV | 61 kg |
| NSYS3D81230D | 800 mm | 1200 mm | 300 mm | UL, GL, DNV, cUL, BV | 45 kg |
| NSYS3D81030P | 800 mm | 1000 mm | 300 mm | GL, UL, DNV, cUL, BV | 52 kg |
| NSYS3D81030DP | 800 mm | 1000 mm | 300 mm | cUL, UL, GL, DNV, BV | 51 kg |
| NSYS3D81030D | 800 mm | 1000 mm | 300 mm | BV, DNV, GL, UL, cUL | 38 kg |
| NSYS3D81030 | 800 mm | 1000 mm | 300 mm | UL, GL, BV, DNV, cUL | 38 kg |
| NSYS3D7525T | 700 mm | 500 mm | 250 mm | cUL, GL, DNV, BV, UL | 15 kg |
Common to all listed parts
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
