Schneider Electric NSYS3DC6625

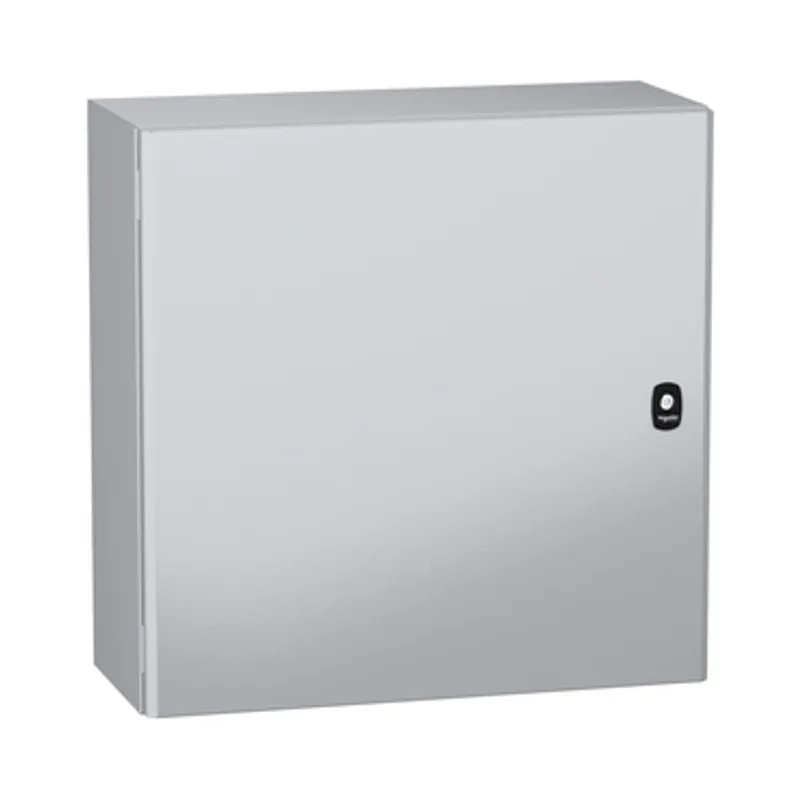

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x600x250mm, IP66, IK10
- MPN
- NSYS3DC6625
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYS3DC6625?
Schneider Electric Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 600x600x250mm, IP66, IK10, manufacturer part number NSYS3DC6625. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DC |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front profile double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, screw driver insert |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL |
| Net weight | 16.1 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 68.500 cm × 61.500 cm × 31.000 cm (L × W × H), 16.100 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 204.000 cm (L × W × H), 210.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3DC6625: frequently asked questions
When can NSYS3DC6625 be shipped?
NSYS3DC6625 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3DC6625 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3DC6625 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3DC6625, subject to availability and destination.
