Schneider Electric NSYS3DC3320

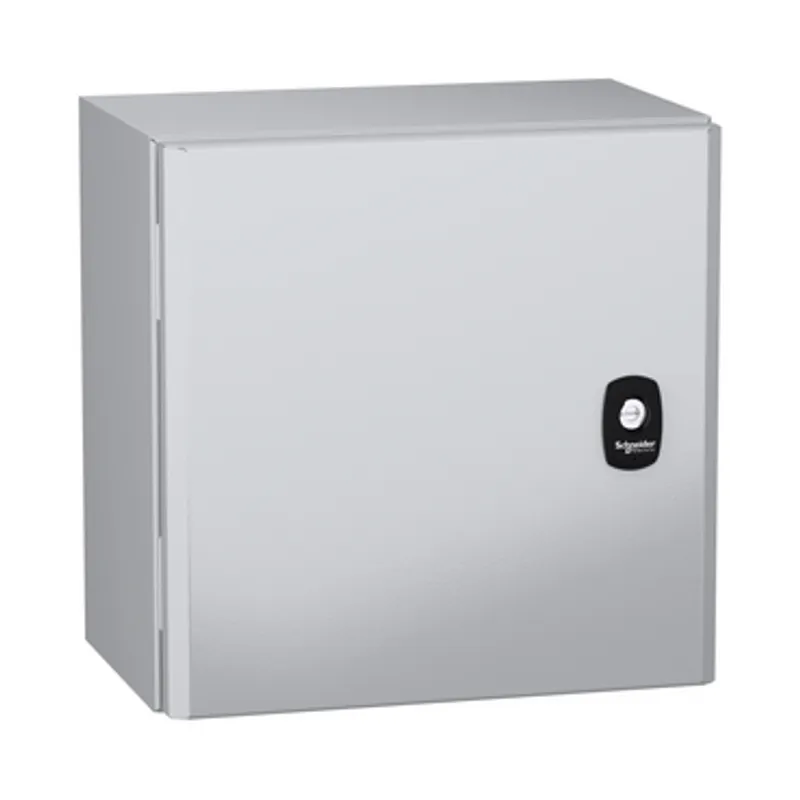

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 300x300x200mm, IP66, IK10
- MPN
- NSYS3DC3320
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYS3DC3320?
Schneider Electric Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 300x300x200mm, IP66, IK10, manufacturer part number NSYS3DC3320. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DC |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock |
| body type | Single piece body, Gutter-shaped front profile double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | Screw driver insert lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL |
| Net weight | 4.508 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 40.000 cm × 33.000 cm × 25.000 cm (L × W × H), 5.000 kg |
| Package 2 | 48 PAM, 120.000 cm × 100.000 cm × 142.000 cm (L × W × H), 255.000 kg |
