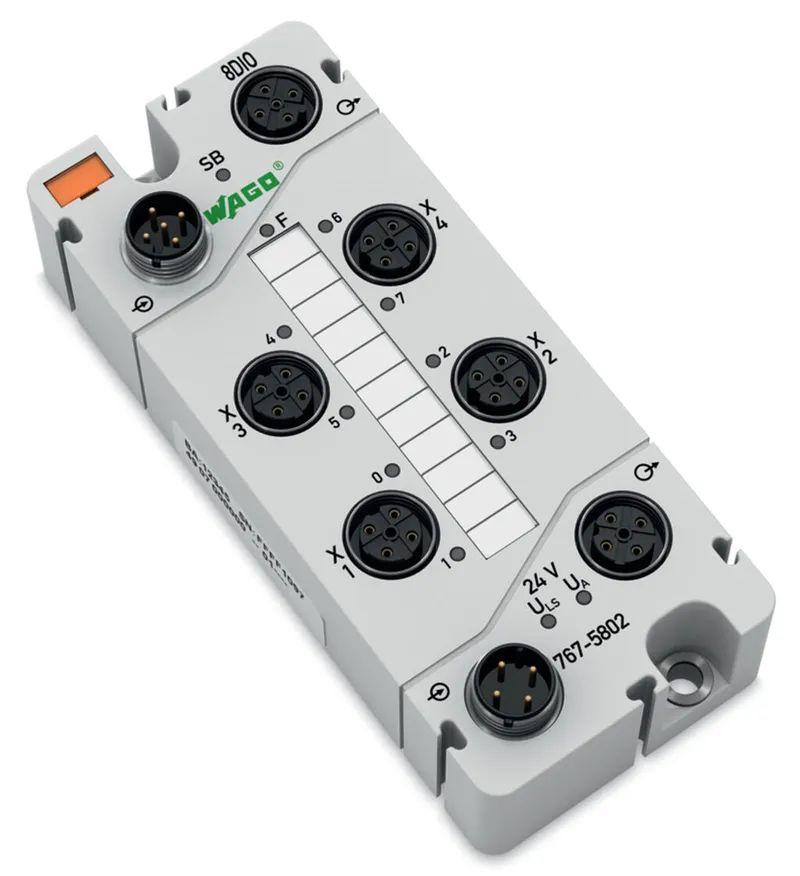

8-channel digital input/output; 24 VDC; 0.5 A; 4 x M12, two outputs per connector
MPN: 767-5802 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 767-5802 be shipped?
767-5802 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 767-5802 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 767-5802 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 767-5802, subject to availability and destination.
<b>Short description:</b><p>This digital input/output module records binary signals from switches, sensors and proximity sensors (BEROs)*. The module also controls actuators, such as magnetic valves, DC contactors and indicators.</p><p></p><p>*Does not apply to 767-5802/000-800</p><p></p><b>Features:</b><ul><li>8 digital inputs/outputs, 24 VDC / 0.5 A</li><li>Input/output, parameterizable (channel by channel)</li><li>Diagnostic-capable (for each channel/module)</li><li>Parameterizable (operating mode, incl. counter, filter, inversion, substitute value strategy, substitute value, manual mode, online simulation and diagnostics)</li></ul><p></p><b>Includes:</b><ul><li>1 x WMB marker, orange</li><li>1 x marking strip</li><li>2 x M12 protective cap</li></ul>
Specifications
Technical data
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Number of configurable digital inputs/outputs | 8 |
| Number of counters | 2 |
| Total number of channels (module) | 8 |
| Signal type | Voltage |
| Signal type (voltage) | 24 VDC |
| Counter type | Event/peak-time counter, pulse duration |
| Counting/switching frequency | 0 Hz … 1 kHz |
| Sensor connection | 8 x (2-wire, 3-wire) |
| Actuator connection | 8 x (2-wire, 3-wire) |
| Input characteristic | high-side switching |
| Input characteristic | Type 2, per IEC 61131-2 |
| Input filter | 0.1, 0.5, 3, 15, 20 ms |
| Input filter | Hardware: ≤ 110 µs; Software: parameterizable |
| Input current per channel for signal (0) max. | 2.7 mA |
| Input current per channel for signal (1) typ. | 7 mA |
| Input current per channel for signal (1) min. | 6.8 mA |
| Input current per channel for signal (1) max. | 7.1 mA |
| Output characteristic | high-side switching |
| Output current per channel | 0.5 A |
| Output current (module) | 4 A |
| Output current | short-circuit/overload-protected |
| Leakage current in OFF state | 5 µA |
| Switching frequency (max.) | 500 Hz; Inductive load |
| Switching frequency (max.) (2) | 20 Hz; Resistive load |
| Switching frequency (max.) (3) | 500 Hz; Lamp load |
| Load type | Resistive, inductive, lamp load |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 11 … 30 VDC |
| Process data width | Depends on operating mode |
| Parameterizable functions | I/O diagnostics (per module): Short circuit/overload (sensor/actuator supply); Undervoltage (ULS + UA), I/O diagnostics (per channel): Overtemperature, Online simulation (per module): Diagnostics, Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics, Operating mode (per module): DO module/DI module/DIO module/DIO module + 1 counter/DIO module + 2 counters, Input filter (per channel): 0.1/ 0.5/ 3 /15 /20 ms/ Filter "Off", Inversion (per channel): On/Off, Substitute value (per channel): 0/1, Substitute value strategy (per channel): Switch substitute value/Hold last value, Manual mode (per channel): On/Off, Manual mode value (by channel): 0/1 |
| Protection | Reverse voltage protection for ULS + UA; Short circuit protection for sensor/actuator supply |
| Output resistance | 0.4 Ω |
| Supply voltage (system) | ) |
| Supply voltage (system and sensor) | 24 VDC(-25 … +30 %); Logic and sensors (ULS) |
| Current consumption: System and sensor | 45 mA |
| System and sensor power consumption (note) | logic component only |
| Supply voltage (field) | 24 VDC (-25 … +30 %); Actuators (UA) |
| Current consumption, field supply (module with no external load) | 75 mA |
| Isolation | 500 V supply/system bus |

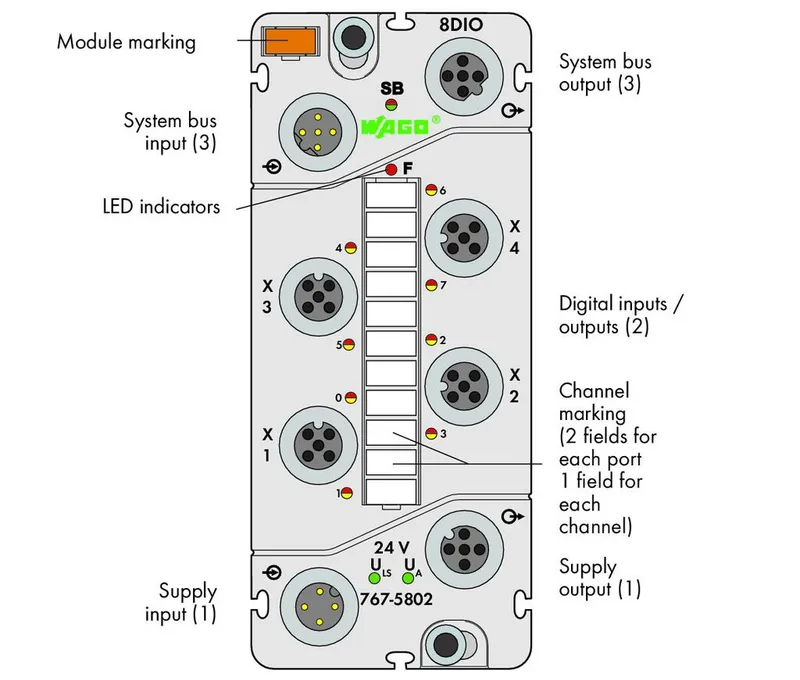

| Indicators | LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow/red: Status/diagnostics DI/DO 1 … DI/DO 8; Non-retentive displays |
| Current carrying capacity (supply connections) | 8 A |
| Connection of 2-wire BEROs | Admissible closed current: 1.5 mA (max.) |
| Rise time from “0” to “1” | typ. 60 µs (resistive load) |
| Output operation | non-retentive |
| Protection against reverse voltages | 0.5 A |
| Voltage drop against U<sub>A</sub> | 0.2 |
| S-bus (system bus) disruption | 0 V status |
Connection data

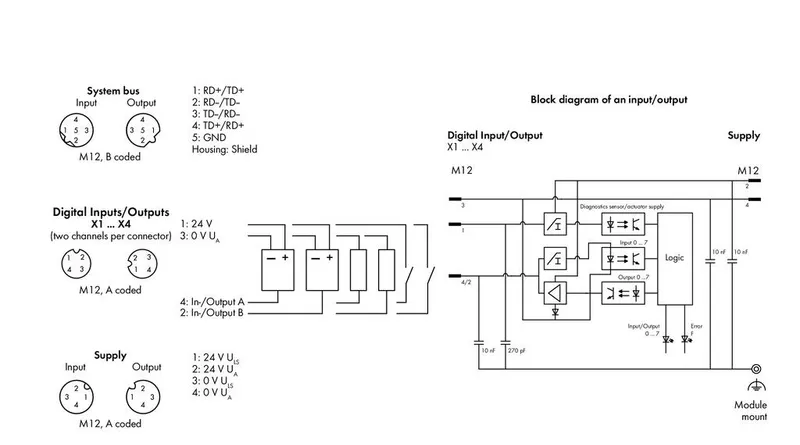

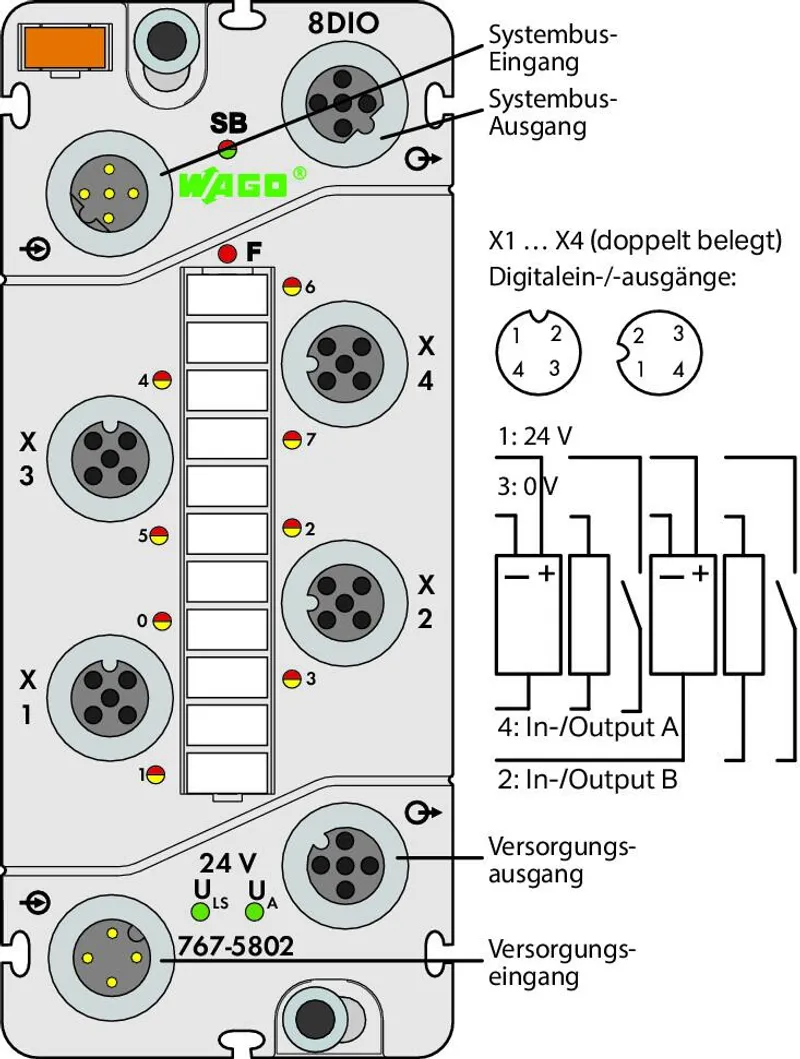

| Connection technology: I/O | 4 x M12 socket; 4-pole; A-coded |
| Connection technology: field supply | 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded |
| Connection technology: system supply | 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded |
| Connection technology: system bus | 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded |
| Connection requirement (permissible cable length) | 30 m |
| Connection requirement (permissible cable type) | Digital inputs/outputs: unshielded |
Physical data
| Width | 50 mm / 1.969 inches |
| Height | 35.7 mm / 1.406 inches |
| Depth | 117 mm / 4.606 inches |
Material data
| Housing material | Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free |
| Fire load | 0.01 MJ |
| Weight | 257 g |
| Conformity marking | CE |
| Encapsulation | Polyurethane (PUR), halogen/silicon-free |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP67 |
| Protection class | III |
| Operating altitude | −1000 … 2000 m; Air pressure: 1080 … 795 hPa |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 0.1 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 0.5 ppm |
Commercial data
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821052920 |
| Customs tariff number | 85389091890 |
| End of Sale | 2018-09-30 |
| End of Production | 2018-10-05 |
| End of Delivery | 2018-10-15 |
| End of Service and Repair | 2020-09-29 |
Product Classification
| UNSPSC | 32151705 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
