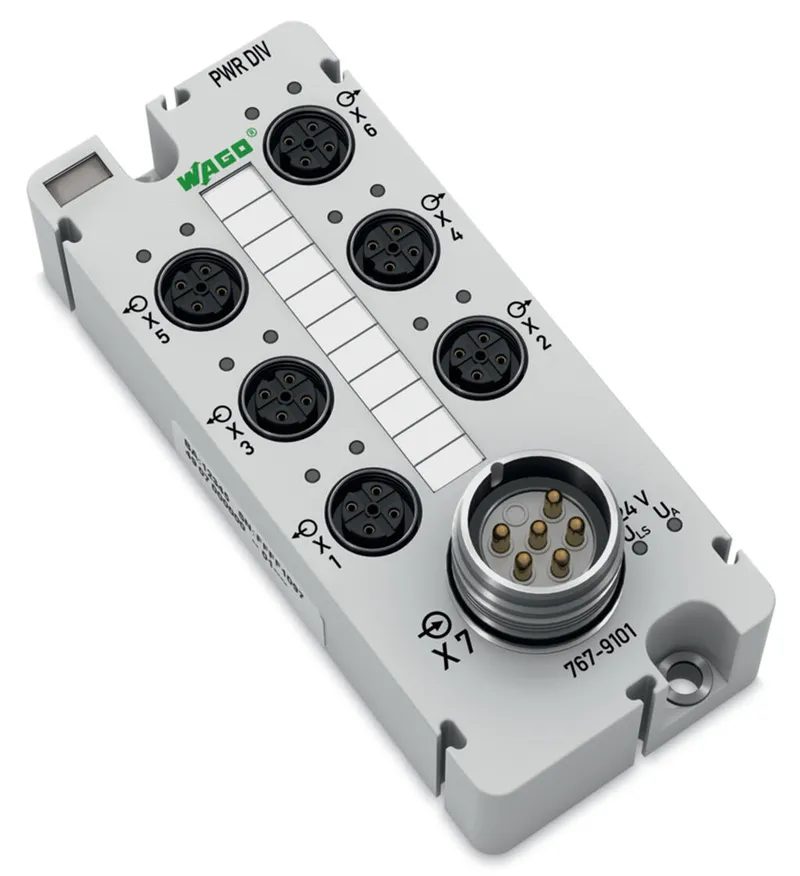

Power Divider
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 767-9101 be shipped?
767-9101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 767-9101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 767-9101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 767-9101, subject to availability and destination.

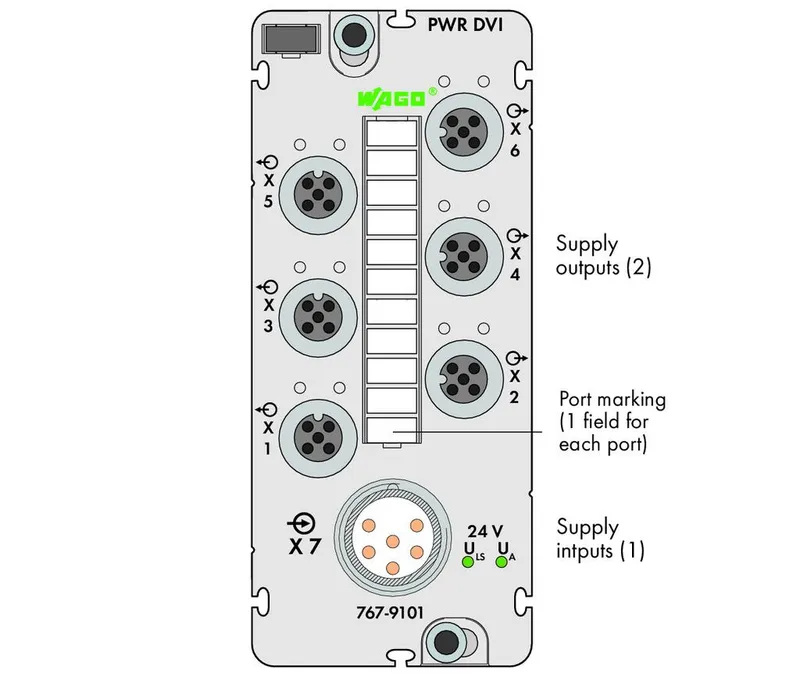

<b>Short description:</b><p>This power divider provides power to the SPEEDWAY Modules over great distances.</p><p></p><b>Includes:</b><ul><li>1 x module marker (WMB), gray</li><li>1 x marking strip</li><li>2 x M12 protective cap</li></ul><p></p><p></p><p></p><p></p><p></p><p></p>
Specifications
Technical data
| Number of outputs | 6 |
| Signal type | Voltage |
| Signal type (voltage) | 24 VDC |
| Short circuit protection | No |
| Supply voltage (system) | 24 VDC (-25 … +30 %) |
| Current consumption (5 V system supply) | 4 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Current consumption, field supply (module with no external load) | 4 mA |
| Isolation | 500 V system/field |
| Indicators | LED (ULS, UA) green: Power supply status; Non-retentive displays |
| Current carrying capacity (supply connections) | 8 A |
| Current carrying capacity | max. 24 A (ULS max. 8 A; UA max. 16 A); Derating must be observed! |
Connection data

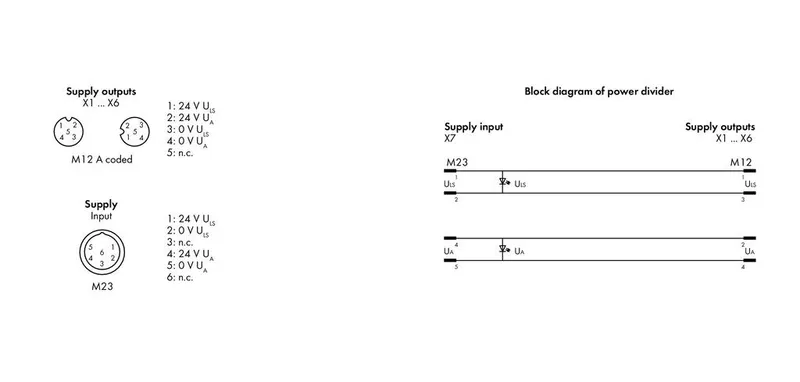

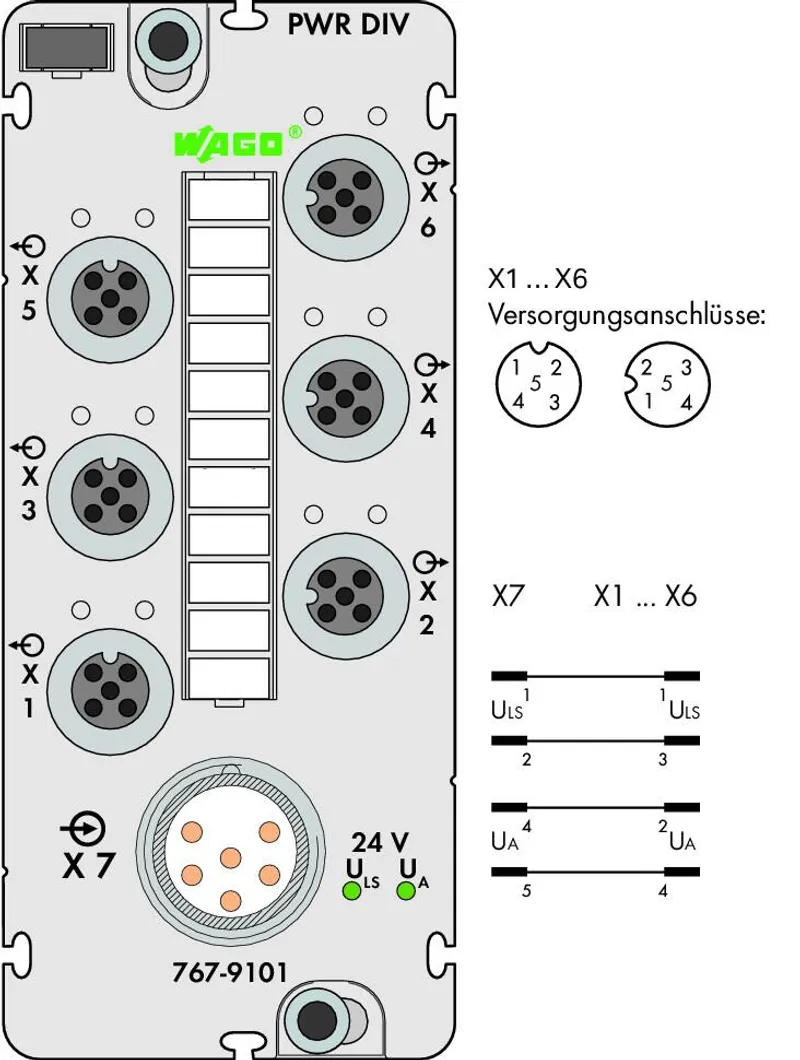

| Connection technology: field supply | ; 6 x M12 socket; 4-pole; A-coded |
| Connection technology: system supply | 1 x M23 plug, 6-pole |
Physical data
| Width | 50 mm / 1.969 inches |
| Height | 43.3 mm / 1.705 inches |
| Depth | 117 mm / 4.606 inches |
Material data
| Housing material | Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free |
| Fire load | 0.009 MJ |
| Weight | 256 g |
| Conformity marking | CE |
| Encapsulation | Polyurethane (PUR), halogen/silicon-free |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP67 |
| Protection class | I |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454549084 |
| Customs tariff number | 85389091890 |
| End of Sale | 2018-09-30 |
| End of Production | 2018-10-05 |
| End of Delivery | 2018-10-15 |
| End of Service and Repair | 2020-09-29 |
Product Classification
| UNSPSC | 39121004 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
