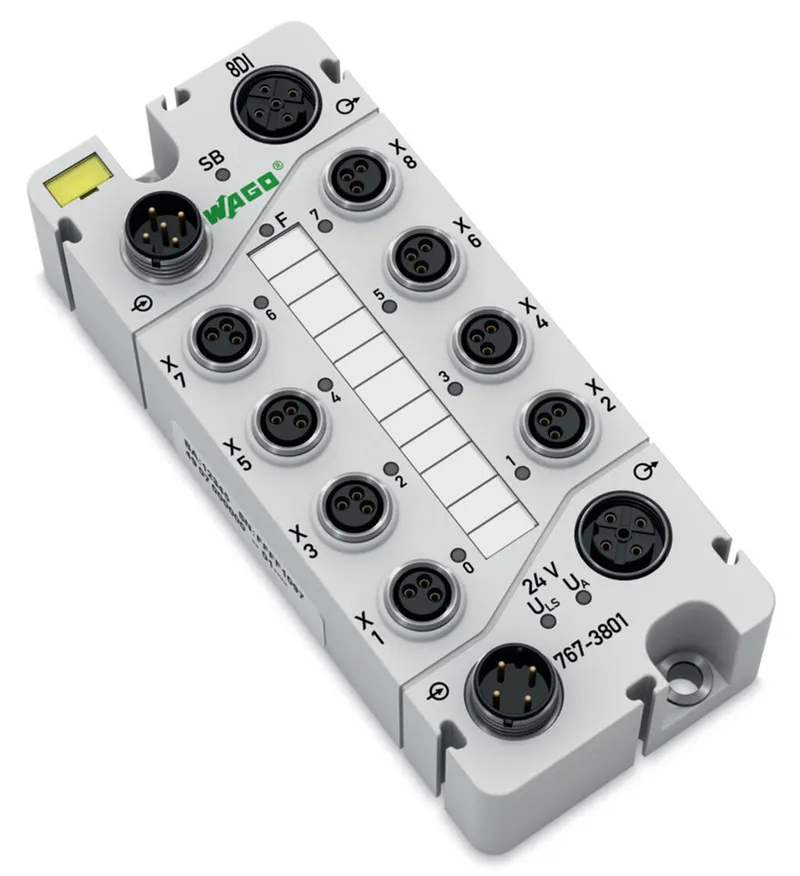

8-channel digital input; 24 VDC; 8 x M8
MPN: 767-3801 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 767-3801 be shipped?
767-3801 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 767-3801 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 767-3801 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 767-3801, subject to availability and destination.
<b>Short description:</b><p>This digital input module records binary signals from switches, sensors and proximity sensors (BEROs).</p><p></p><b>Features:</b><ul><li>8 digital inputs, 24 VDC</li><li>Diagnostic-capable (module by module)</li><li>Parameterizable (filter, inversion, online simulation and diagnostics)</li></ul><p></p><b>Includes:</b><ul><li>1 x module marker (WMB), yellow</li><li>1 x marking strip</li><li>2 x M8 protective cap</li></ul><p></p>
Specifications
Technical data
| Number of digital inputs | 8 |
| Total number of channels (module) | 8 |
| Signal type | Voltage |
| Signal type (voltage) | 24 VDC |
| Sensor connection | 8 x (2-wire, 3-wire) |
| Input characteristic | high-side switching |
| Input characteristic | Type 2, per IEC 61131-2 |
| Input filter | 0.1, 0.5, 3, 15, 20 ms |
| Input filter | Hardware: ≤ 80 µs; Software: parameterizable |
| Input current per channel for signal (0) max. | 2.4 mA |
| Input current per channel for signal (1) typ. | 7.3 mA |
| Input current per channel for signal (1) min. | 6.4 mA |
| Input current per channel for signal (1) max. | 7.4 mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 11 … 30 VDC |
| Process data width | 1-byte data + status |
| Parameterizable functions | I/O diagnostics (per module): Short circuit/overload (sensor supply); Undervoltage (ULS + UA), Online simulation (per module): Diagnostics, Online simulation (per channel): Lock/Unlock; Simulation value: 0/1, Input filter (per channel): 0.1/ 0.5/ 3 /15 /20 ms/ Filter "Off", Inversion (per channel): On/Off |
| Protection | Reverse voltage protection for ULS + UA; Short circuit protection for sensor supply |
| Supply voltage (system and sensor) | 24 VDC(-25 … +30 %); Logic and sensors (ULS) |
| Current consumption: System and sensor | 40 mA |
| System and sensor power consumption (note) | + sensors (max. 400 mA) |
| Supply voltage (field) | 24 VDC (-25 … +30 %); Actuators (UA), for transmission only |
| Current consumption, field supply (module with no external load) | 5 mA |
| Isolation | 500 V supply/system bus |

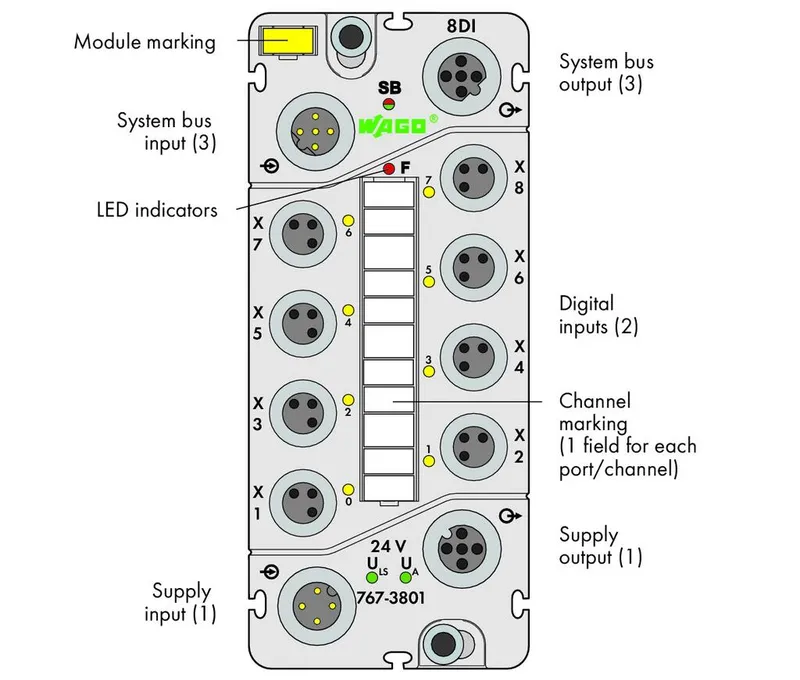

| Indicators | LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow: Status/diagnostics DI 1 … DI 8; Non-retentive displays |
| Current carrying capacity (supply connections) | 8 A |
| Connection of 2-wire BEROs | Admissible closed current: 1.5 mA (max.) |

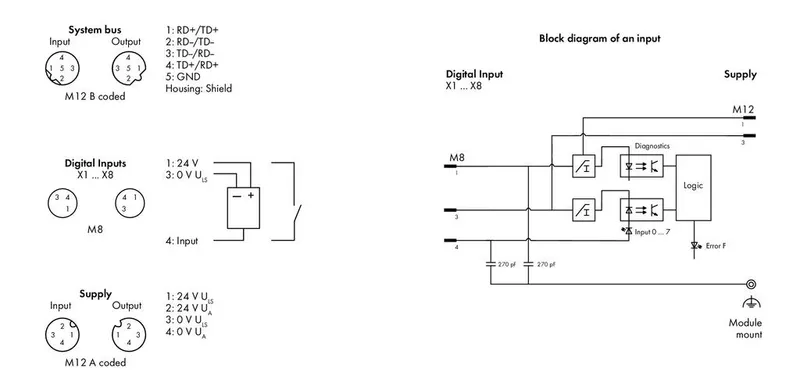

Connection data

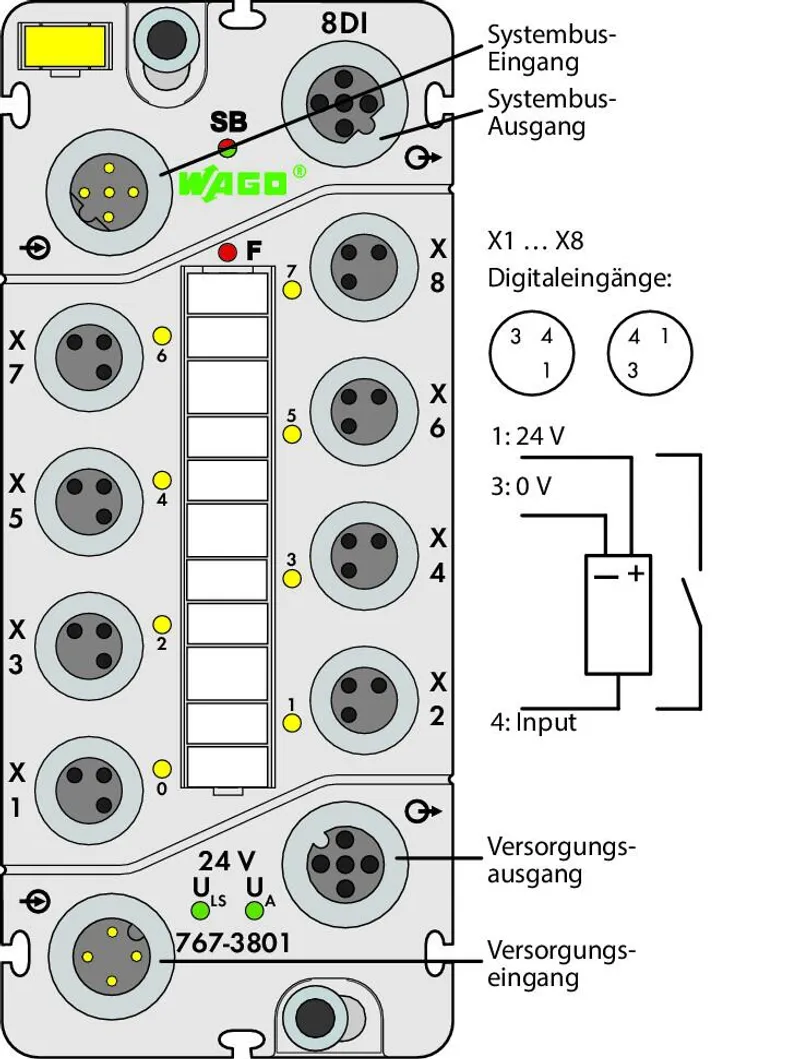

| Connection technology: I/O | 8 x M8 socket; 3-pole |
| Connection technology: field supply | 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded |
| Connection technology: system supply | 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded |
| Connection technology: system bus | 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded |
| Connection requirement (permissible cable length) | 30 m |
| Connection requirement (permissible cable type) | Digital inputs: unshielded |
Physical data
| Width | 50 mm / 1.969 inches |
| Height | 35.7 mm / 1.406 inches |
| Depth | 117 mm / 4.606 inches |
Material data
| Color | light gray |
| Housing material | Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free |
| Fire load | 0.015 MJ |
| Weight | 242 g |
| Conformity marking | CE |
| Encapsulation | Polyurethane (PUR), halogen/silicon-free |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP67 |
| Protection class | III |
| Operating altitude | −1000 … 2000 m; Air pressure: 1080 … 795 hPa |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 0.1 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 0.5 ppm |
Commercial data
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454545185 |
| Customs tariff number | 85389099990 |
| End of Sale | 2018-09-30 |
| End of Production | 2018-10-05 |
| End of Delivery | 2018-10-15 |
| End of Service and Repair | 2020-09-29 |
Product Classification
| UNSPSC | 32151705 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | c4af479c-f223-4e75-b1e7-915a406b72dd |
| SCIP notification number (Belgium) | 0a085c1c-53da-4eda-922d-ec03b42e2fd5 |
| SCIP notification number (Bulgaria) | 56fc8e0a-7f58-4cd2-ae76-580bde444b0f |
| SCIP notification number (Czech Republic) | e7218df5-32d8-4ade-9882-7857ae125601 |
| SCIP notification number (Denmark) | 60d77a4c-686a-468e-963b-1b40bbc6f9db |
| SCIP notification number (Finland) | f302004f-6c28-4ade-ab9b-1d950d49fb29 |
| SCIP notification number (France) | a6ce0b38-25de-40b6-80f0-ee9c3d91f9c4 |
| SCIP notification number (Germany) | b6e776bd-ac84-40e6-beb8-0acd8bd89485 |
| SCIP notification number (Hungary) | 67393907-446c-4db3-95ec-858f22c3025c |
| SCIP notification number (Italy) | ca38b2da-3685-4193-a376-63537fb5b410 |
| SCIP notification number (Netherlands) | 30eb7a62-9bc5-4467-a486-3119e7c7f996 |
| SCIP notification number (Poland) | 5d94ee54-8bdd-42c7-bffe-645f56dc8503 |
| SCIP notification number (Romania) | fa176782-b3bb-40bf-9024-e8f95a2e309d |
| SCIP notification number (Sweden) | e5cce26e-fcf0-46cf-a739-aec7a0ef275e |
