4-channel analog input; Voltage/Current
MPN: 767-6401 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 767-6401 be shipped?
767-6401 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 767-6401 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 767-6401 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 767-6401, subject to availability and destination.

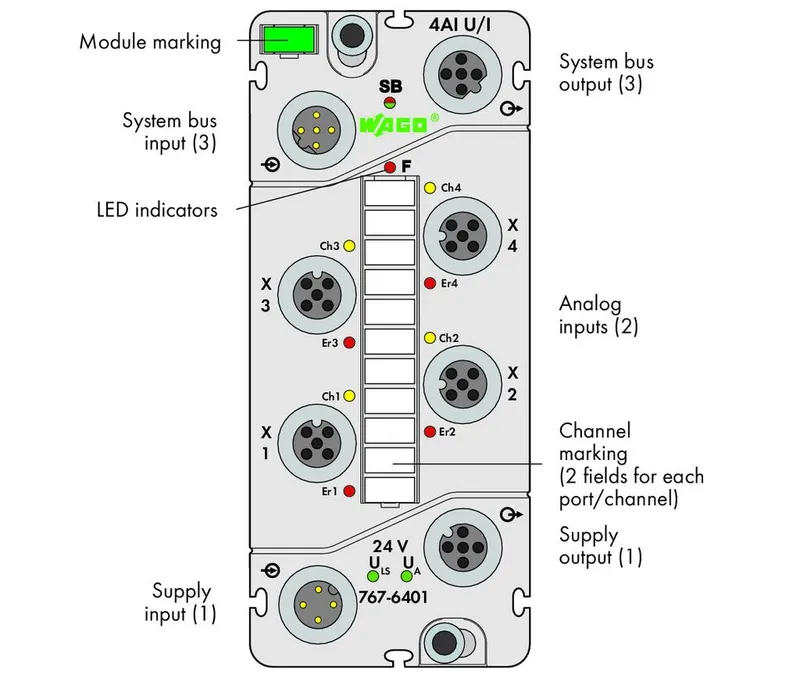

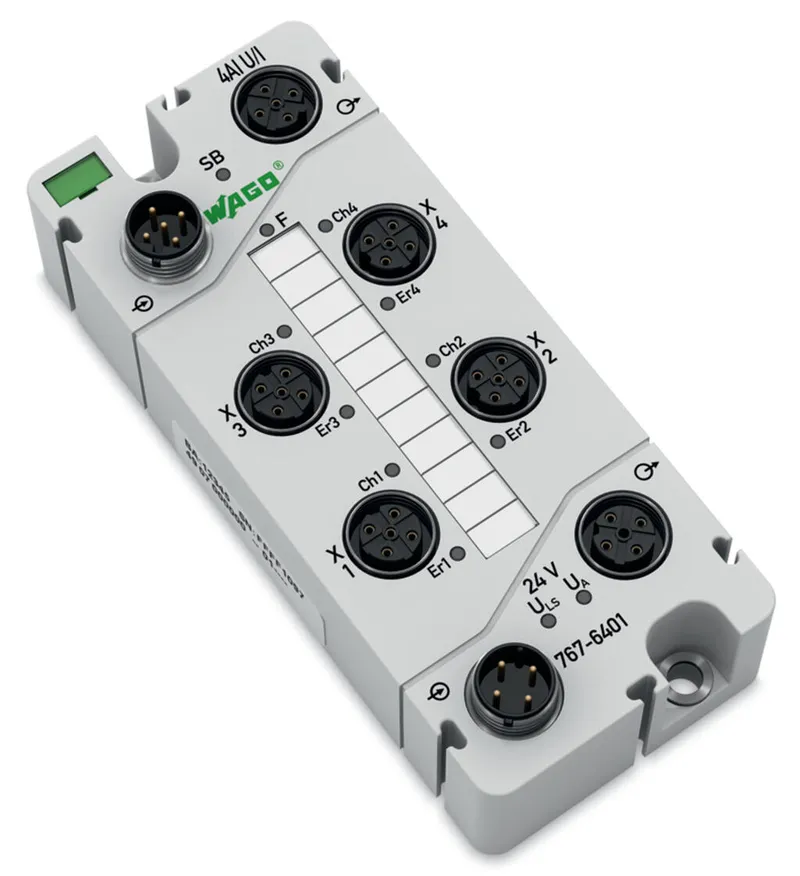

<b>Short description:</b><p>This analog input module records voltage and current signals.</p><p></p><b>Features:</b><p>- 4 analog inputs 0–20 mA, 0–22 mA (per NAMUR NE43), 4–20 mA, <br/>±20 mA, 0–10 V or ±10 V</p><p>- Diagnostic-capable</p><p>‐ Parameterizable (measurement range, limiting value, filter, substitute value, online simulation and diagnostics)</p><p></p><p></p><p></p><p></p><b>Includes:</b><ul><li>1 x module marker (WMB), green</li><li>1 x marking strip</li><li>2 x M12 protective cap</li></ul><p></p>
Specifications
Technical data
| Number of analog inputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Voltage, Current |
| Signal type (current) | 0 … 20 mADC; 4 … 20 mADC |
| Signal type (voltage) | 0 … 10 VDC; -10 … +10 VDC |
| Signal type (configurable) | Yes |
| Sensor connection | 4 x (2-wire, 3-wire, 4-wire); External shield via knurled nut |
| Signal characteristics | Differential |
| Resolution [bit] | 16 Bit |
| Input resistance (max.) | 200 Ω |
| Process data width | 8-byte data + status |
| Parameterizable functions | I/O diagnostics (per module): Short circuit/overload (encoder supply); Undervoltage (ULS + UA), I/O diagnostics (per channel): Measurement range overflow/underflow or wire break at 4 … 20 mA; Overcurrent; Limit value violation (min./max.), Online simulation (per module): Diagnostics, Online simulation (per channel): Lock/Unlock; Simulation value: according to measurement range; Diagnostics, Measurement range (per channel): Parameterizable, Input filter (per channel): 50 Hz/ 60 Hz/ Filter "Off", Limiting values (per channel): Min./Max., Substitute value (per channel): Value |
| Protection | Reverse voltage protection for ULS + UA; Short circuit protection for sensor supply |
| Internal resistance | 100 kΩ |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.2 % |
| Temperature coefficient | ≤ 100 ppm/K of measurement range |
| Sampling delay (channel/channel) | 100 µs |
| Sampling delay (module) | 1 ms |
| Sampling repetition time | 1 ms |
| Measurement range | 0 … 20 mA, 0 … 22 mA, 4 … 20 mA, ±20 mA, 0 … 10 V, ±10 V |
| Supply voltage (system) | ) |
| Supply voltage (system and sensor) | 24 VDC(-25 … +30 %); Logic and sensors (ULS) |
| Current consumption: System and sensor | 50 mA |
| System and sensor power consumption (note) | + sensors (max. 400 mA) |
| Supply voltage (field) | 24 VDC (-25 … +30 %); Actuators (UA), for transmission only |
| Current consumption, field supply (module with no external load) | 5 mA |
| Isolation | 500 V supply/system bus |

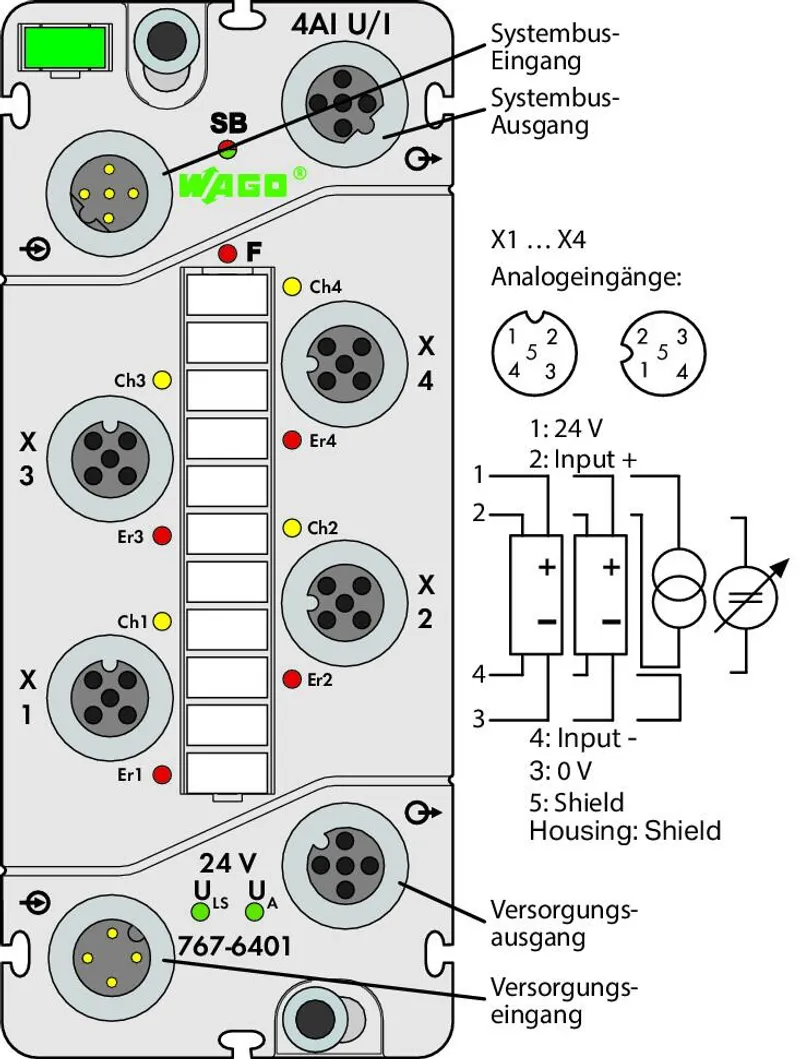

| Indicators | LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1 … Ch4) yellow: Status AI 1 … AI 4; LED (Er1 … Er4) red: Error AI 1 … AI 4; Non-retentive displays |
| Current carrying capacity (supply connections) | 8 A |
| Monotonicity without error codes | Yes |
| Conversion method (2) | SAR |
| Conversion time (2) | 1 ms |
| Maximum error over the full temperature range | ≤ ±0.6 % of the measurement range |
| Voltage-proof | up to 32 V (internal current limitation) |
Connection data

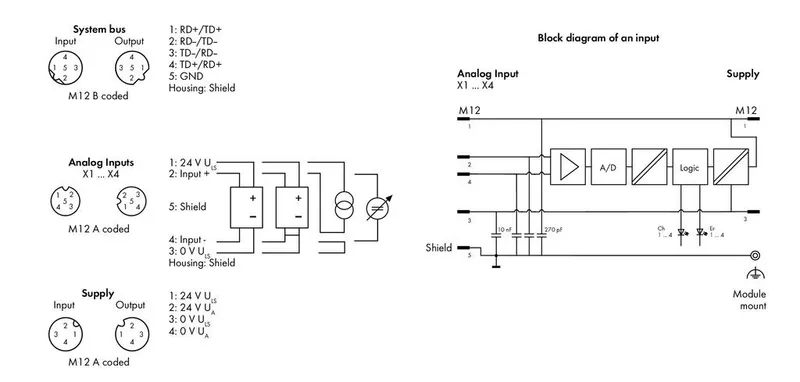

| Connection technology: I/O | 4 x M12 socket; 5-pole; A-coded |
| Connection technology: field supply | 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded |
| Connection technology: system supply | 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded |
| Connection technology: system bus | 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded |
| Connection requirement (permissible cable length) | 30 m |
| Connection requirement (permissible cable type) | Analog inputs: unshielded |
Physical data
| Width | 50 mm / 1.969 inches |
| Height | 35.7 mm / 1.406 inches |
| Depth | 117 mm / 4.606 inches |
Material data
| Housing material | Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free |
| Fire load | 1.29 MJ |
| Weight | 257.5 g |
| Conformity marking | CE |
| Encapsulation | Polyurethane (PUR), halogen/silicon-free |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP67 |
| Protection class | III |
| Operating altitude | −1000 … 2000 m; Air pressure: 1080 … 795 hPa |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| Product Group | 15 (I/O System) |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454545246 |
| Customs tariff number | 85389099990 |
| End of Sale | 2018-09-30 |
| End of Production | 2018-10-05 |
| End of Delivery | 2018-10-15 |
| End of Service and Repair | 2020-09-29 |
Product Classification
| UNSPSC | 32101513 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7, 80-05-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Bulgaria) | 65de8d62-edcc-4497-bbf0-f57d40a4ef4b |
| SCIP notification number (Czech Republic) | 2c5a30b5-1d50-4f02-8ad3-811924148ece |
