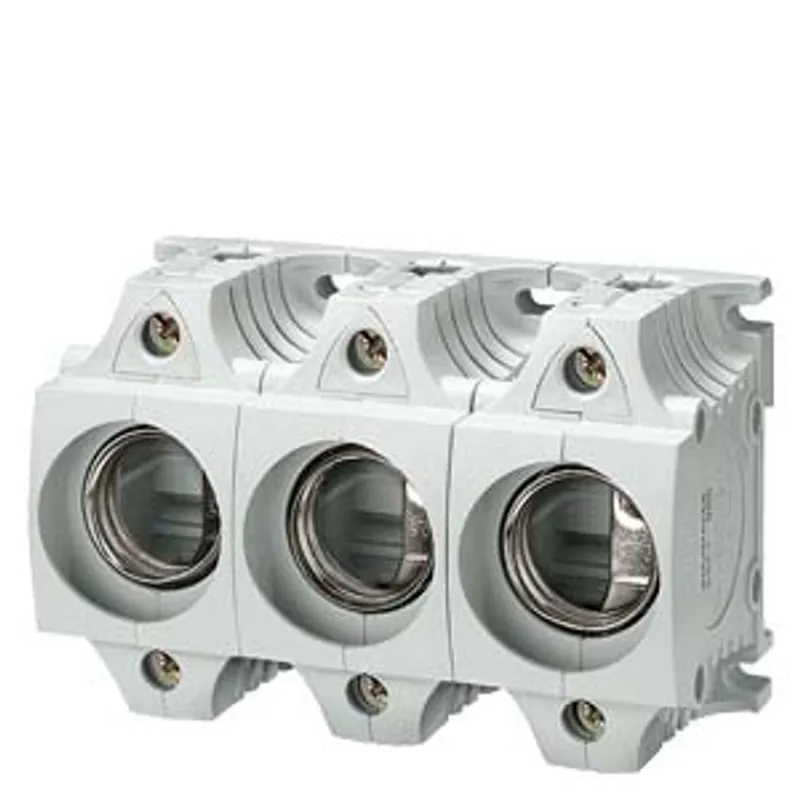

Siemens 5SF5268
DIAZED fuse base Size III Molded plastic
- MPN
- 5SF5268
- Category
- SENTRON DIAZED Fuse Systems
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SF5268?
DIAZED fuse base Size III Molded plastic, 3-pole touch-protected (BGV A2) Access: Double function terminal Outgoing feeder: Box terminal 63 A 500 V AC
Specifications
Model
| product brand name | SENTRON |
| product designation | DIAZED fuse base |
| design of the product | DIAZED base |
| design of the fuse base | gauge inset |
General technical data
| number of poles | 3 |
| size of fuse system according to EN 60269-1 | DIII |
Supply voltage
| supply voltage at AC | 500 V |
Product details
| product component cover | Yes |

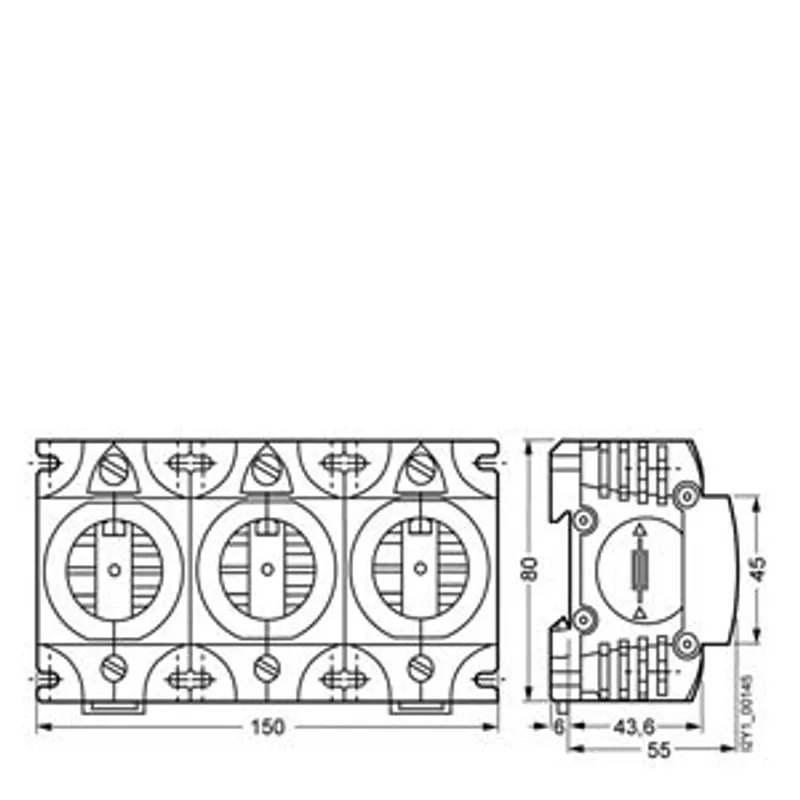

Mechanical Design
| height | 150 mm |
| width | 80 mm |
| depth | 55 mm |
| fastening method | DIN rail |
| Net Weight | 413 g |
| material of the enclosure | plastic |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5SF5268: frequently asked questions
When can 5SF5268 be shipped?
5SF5268 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5SF5268 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5SF5268 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SF5268, subject to availability and destination.
