SENTRON DIAZED Fuse Systems Parts

Showing 1–24 of 28 parts

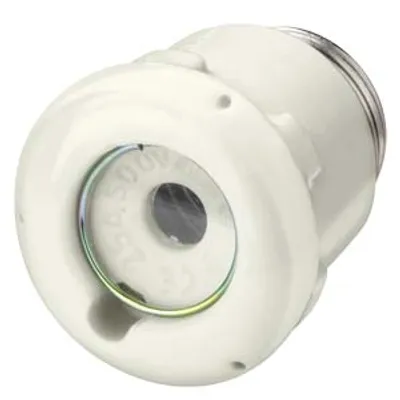

Siemens 5SH123 – DIAZED screw cap DIII 63 A 500 V AC/DC ceramic with inspection hole
Siemens
5SH123

DIAZED screw cap DIII 63 A 500 V AC/DC ceramic with…

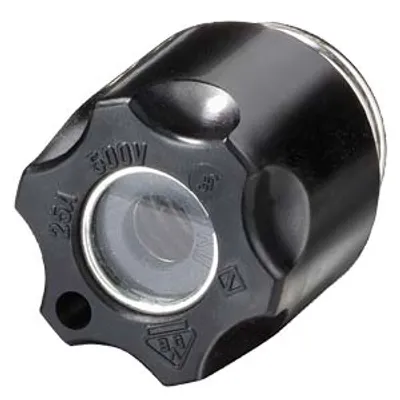

Siemens 5SH1221 – DIAZED screw cap DII 25 A 500 V AC/DC insulating material with inspection hole
Siemens
5SH1221

DIAZED screw cap DII 25 A 500 V AC/DC insulating material…

Siemens 5SH122 – DIAZED screw cap DII 25 A 500 V AC/DC ceramic with inspection hole
Siemens
5SH122

DIAZED screw cap DII 25 A 500 V AC/DC ceramic with…

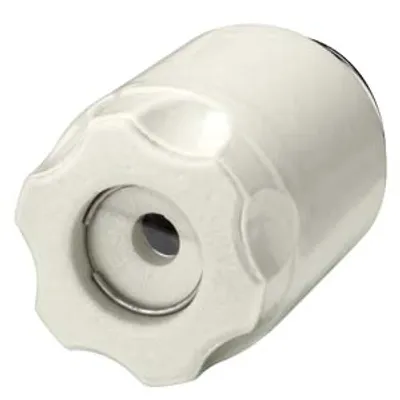

Siemens 5SH1170 – DIAZED screw cap DIII 63 A 690V AC 600V DC ceramic
Siemens
5SH1170

DIAZED screw cap DIII 63 A 690V AC 600V DC ceramic

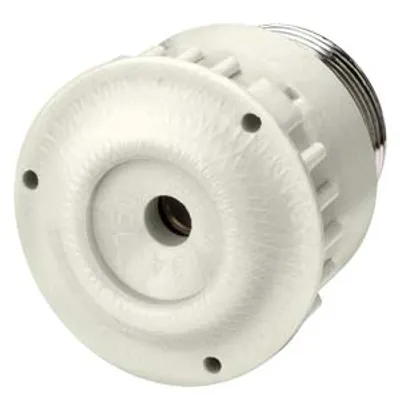

Siemens 5SH1161 – DIAZED screw cap DIII 63 A 750 V AC/DC ceramic for base 5SF4230
Siemens
5SH1161

DIAZED screw cap DIII 63 A 750 V AC/DC ceramic for base…

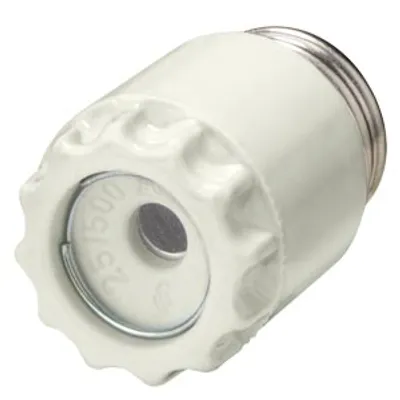

Siemens 5SH113 – DIAZED screw cap DIII 63 A 500 V AC/DC ceramic
Siemens
5SH113

DIAZED screw cap DIII 63 A 500 V AC/DC ceramic

Siemens 5SH112 – DIAZED screw cap DII 25 A 500 V AC/DC ceramic
Siemens
5SH112

DIAZED screw cap DII 25 A 500 V AC/DC ceramic

Siemens 5SD611 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 63A
Siemens
5SD611

DIAZED fuse link 750 V DC rail system protection…

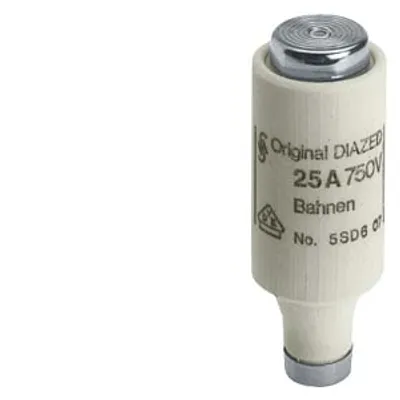

Siemens 5SD610 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 50A
Siemens
5SD610

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD608 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 35A
Siemens
5SD608

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD607 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 25A
Siemens
5SD607

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD606 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 20A
Siemens
5SD606

DIAZED fuse link 750 V DC rail system protection…

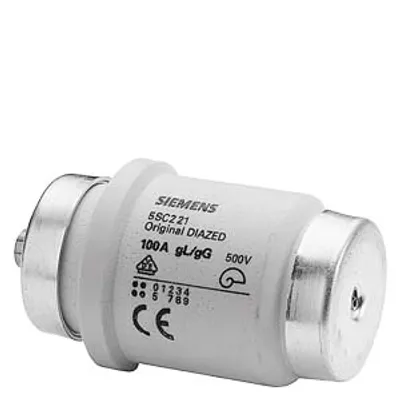

Siemens 5SC221 – DIAZED fuse link 500 V for cable and line protection gG, size DIVH, R1 1/4", 100A
Siemens
5SC221

DIAZED fuse link 500 V for cable and line protection gG

Siemens 5SB251 – DIAZED fuse link 500 V for cable and line protection gG, Size DII, E27, 10A
Siemens
5SB251

DIAZED fuse link 500 V for cable and line protection gG

Siemens 5SB231 – DIAZED fuse link 500 V for cable and line protection gG, Size DII, E27, 6A
Siemens
5SB231

DIAZED fuse link 500 V for cable and line protection gG

Siemens 5SB221 – DIAZED fuse link 500 V for cable and line protection gG, size DII, E27, 4 A
Siemens
5SB221

DIAZED fuse link 500 V for cable and line protection gG

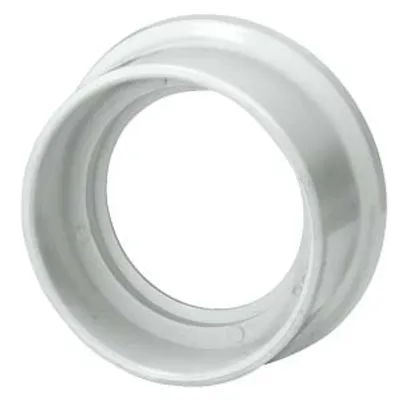

Siemens 5SH3411 – DIAZED cover ring, Insulation material DIII/E33
Siemens
5SH3411

DIAZED cover ring, Insulation material DIII/E33

Siemens 5SH3401 – DIAZED cover ring, Insulation material DII/E27
Siemens
5SH3401

DIAZED cover ring, Insulation material DII/E27

Siemens 5SD8004 – DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 4 A
Siemens
5SD8004

DIAZED fuse link 690 V for cable and line protection…

Siemens 5SD605 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 16A
Siemens
5SD605

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD604 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 10A
Siemens
5SD604

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD603 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 6A
Siemens
5SD603

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD602 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 4A
Siemens
5SD602

DIAZED fuse link 750 V DC rail system protection…

Siemens 5SD601 – DIAZED fuse link 750 V DC rail system protection Quick-response characteristic size DIII, E33, 2A
Siemens
5SD601

DIAZED fuse link 750 V DC rail system protection…

Compare SENTRON DIAZED Fuse Systems

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNdesign of the productNet Weightpower loss [W]power loss [W] for rated value of the current at AC in hot operating state per polecolor coding of the fuse link
5SH123With inspection hole68 g———
5SH1221With inspection hole22 g———
5SH122With inspection hole42 g———
5SH1170—107 g———
5SH1161—124 g———
5SH113—63 g———
5SH112—37 g———
5SD611for semiconductor protection83 g18 W18 Wcopper
5SD610for semiconductor protection80 g16.5 W16.5 Wwhite
5SD608for semiconductor protection78 g13 W13 Wblack
5SD607for semiconductor protection75 g8.3 W8.3 Wyellow
5SD606for semiconductor protection71 g6.3 W6.3 Wblue
5SC221For cable and line protection119 g8.8 W8.8 Wred
5SB251For cable and line protection27 g1.6 W1.6 Wred
5SB231For cable and line protection26 g2.2 W2.2 Wgreen
5SB221For cable and line protection27 g2 W2 Wbrown
5SH3411Plastic0.02 kg———
5SH3401Plastic13 g———
5SD8004For cable and line protection70 g1.2 W1.2 Wbrown
5SD605for semiconductor protection71 g5.9 W5.9 Wgray
5SD604for semiconductor protection69 g4.8 W4.8 Wred
5SD603for semiconductor protection70 g4.8 W4.8 Wgreen
5SD602for semiconductor protection69 g4 W4 Wbrown
5SD601for semiconductor protection70 g2.8 W2.8 Wpink
