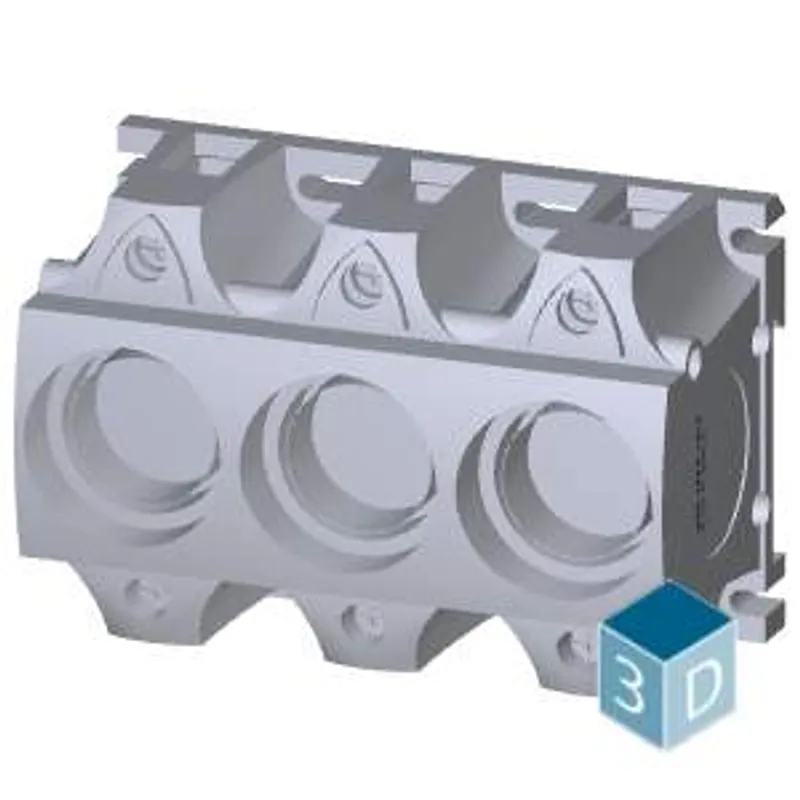

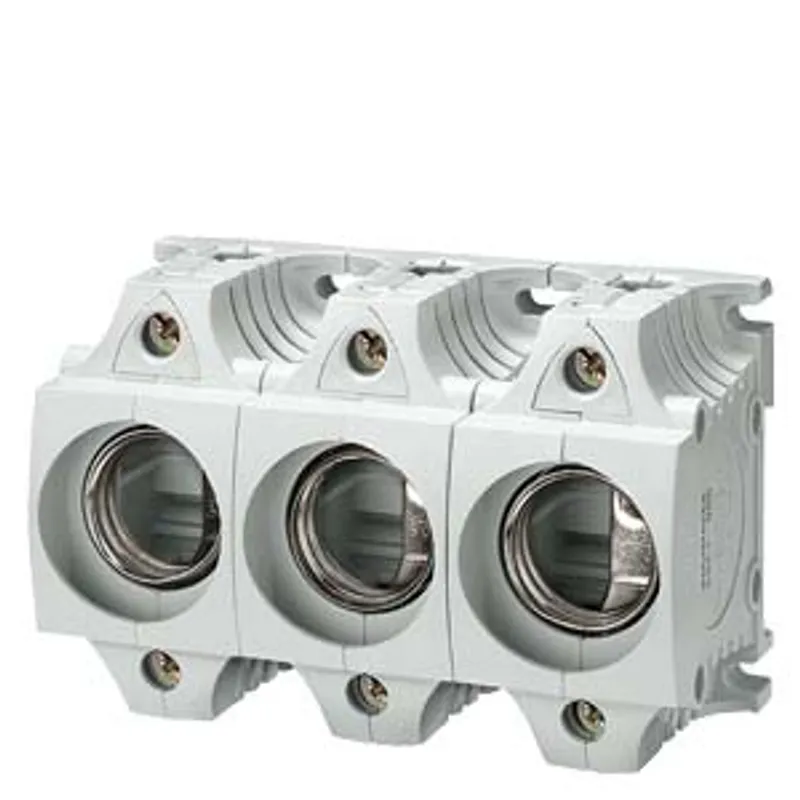

Siemens 5SF5068

DIAZED fuse base Size DII Molded plastic

MPN
5SF5068
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SF5068?

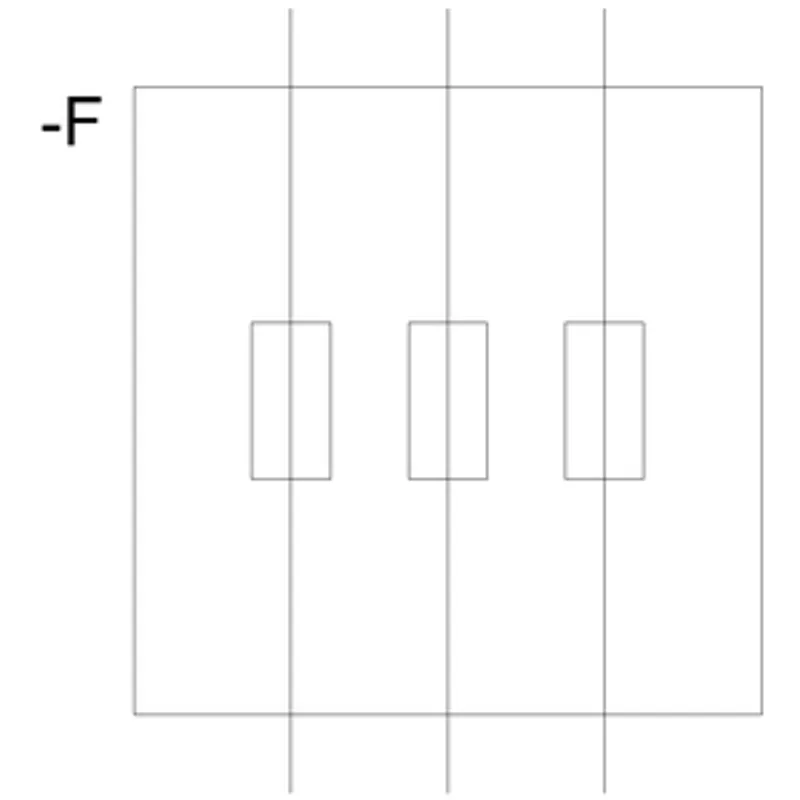

DIAZED fuse base Size DII Molded plastic, 3-pole touch-protected (BGV A2) Access: Double function terminal Outgoing feeder: Box terminal 25A 500 V AC

Specifications

Model

product brand nameSENTRON
product designationDIAZED fuse base
design of the productDIAZED base
design of the fuse basegauge inset

General technical data

number of poles3
size of fuse system according to EN 60269-1DII

Supply voltage

supply voltage at AC500 V

Product details

product component coverYes

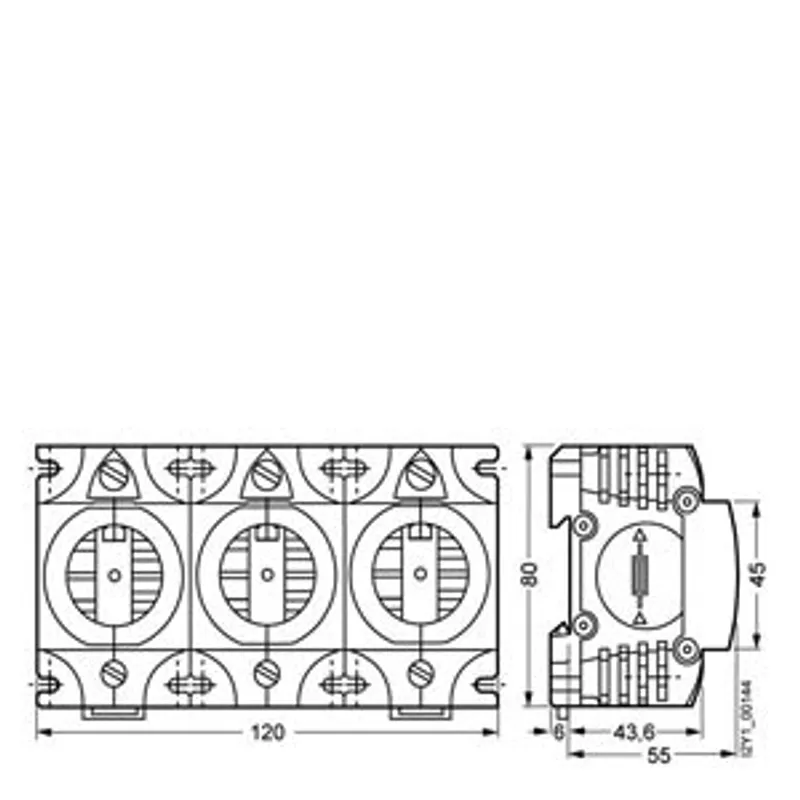

Mechanical Design

height120 mm
width80 mm
depth55 mm
fastening methodDIN rail
Net Weight344 g
material of the enclosureplastic

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SF5068: frequently asked questions

When can 5SF5068 be shipped?

5SF5068 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SF5068 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SF5068 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SF5068, subject to availability and destination.
