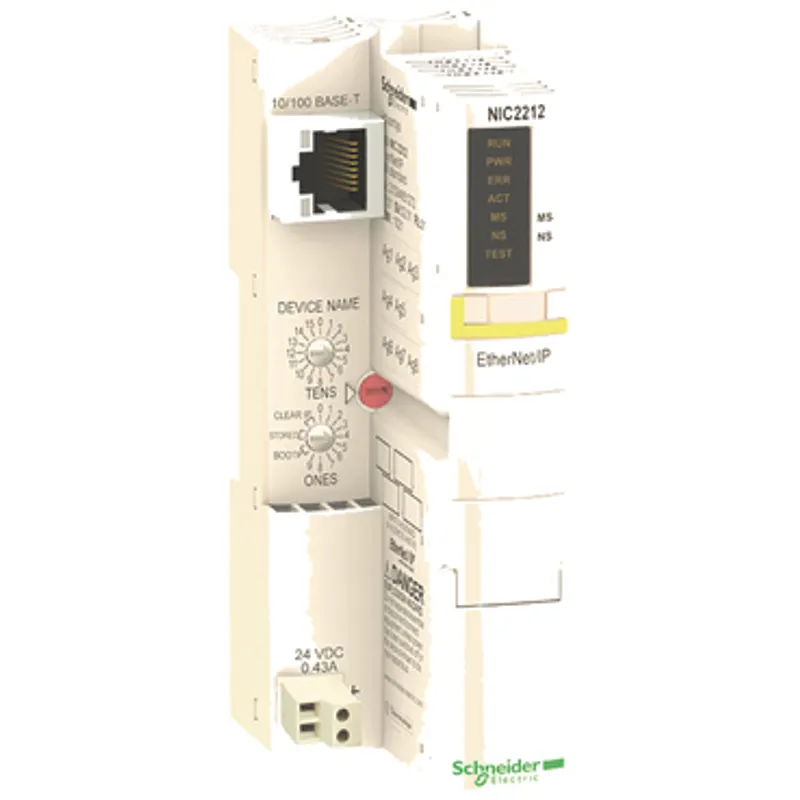

Schneider Electric STBNIC2212
Network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s
- MPN
- STBNIC2212
- EAN
- 3595863987812
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBNIC2212?
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard Network Interface Module |
| Exchange mode | Half or full duplex |
| Communication service | Embedded web (configuration,diagnostics and access to variable), BootP/DHCP protocol, SNMP agent |
| Power supply type | SELV |
| Height | 40 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Net weight | 0.145 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL, ODVA, C-Tick, CSA |
| Ambient air temperature for operation | 0…60 °C without derating, -25…70 °C with derating factor |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail, 5 gn (f = 58…150 Hz) on 35 mm DIN rail, +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 7.200 cm × 4.300 cm (L × W × H), 165.000 g |
| Package 2 | 30 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 5.345 kg |
