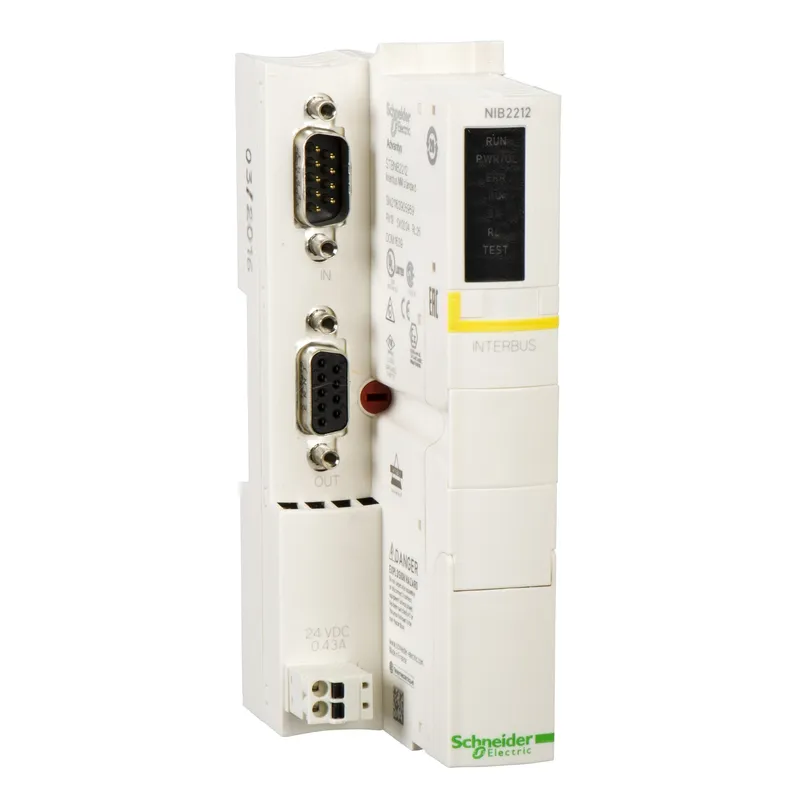

Schneider Electric STBNIB2212
Standard Network Interface Module STB - Interbus - 500 kbit/s
- MPN
- STBNIB2212
- EAN
- 3595862055147
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBNIB2212?
Schneider Electric STBNIB2212 — standard Network Interface Module STB - Interbus - 500 kbit/s (Advantys STB). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard Network Interface Module |
Complementary
| Integrated connection type | Interbus conforming to InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair (input bus); Interbus conforming to InterBus Club 9-way female isolated RS485 SUB-D 1 twisted shielded pair (output bus); Interbus conforming to InterBus Club HE-13 (RS232 port); Interbus conforming to InterBus Club 8-way female (RS232 port) |
| Number of segments | 1 primary, maximum 6 extensions |
| Number of server device(s) | 512 |
| Structure type | Industrial field bus (Generation4) |
| Number of addressable I/O module | 0…32 per island |
| Input current | 430 mA for supply circuit |
| Nominal output current | 0.575 A at 60…70 °C; 1.2 A |
| Maximum output impedance | 0.05 Ohm at 100000 kHz |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Electromagnetic compatibility | Immunity to electromagnetic interference conforming to IEC 61131-2 |
| Transmission rate | 500 kbit/s |
| Communication service | Implicit exchange of process data; Logical addressing; Diagnostics |
| Power supply type | SELV |
| Local signalling | 1 LED green for BA; 1 LED green for island state (RUN); 1 LED green for power supply (PWR); 1 LED green for RC; 1 LED red for module error (ERR); 1 LED red for RD; 1 LED yellow for test mode |
| Height | 40 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Net weight | 0.155 kg |
Environment
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CSA; C-Tick; UL; FM Class 1 Division 2; ATEX Cat 3G |
| Ambient air temperature for operation | 0…60 °C without derating; -25…70 °C with derating factor |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
STBNIB2212: frequently asked questions
When can STBNIB2212 be shipped?
STBNIB2212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up STBNIB2212 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for STBNIB2212 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for STBNIB2212, subject to availability and destination.
