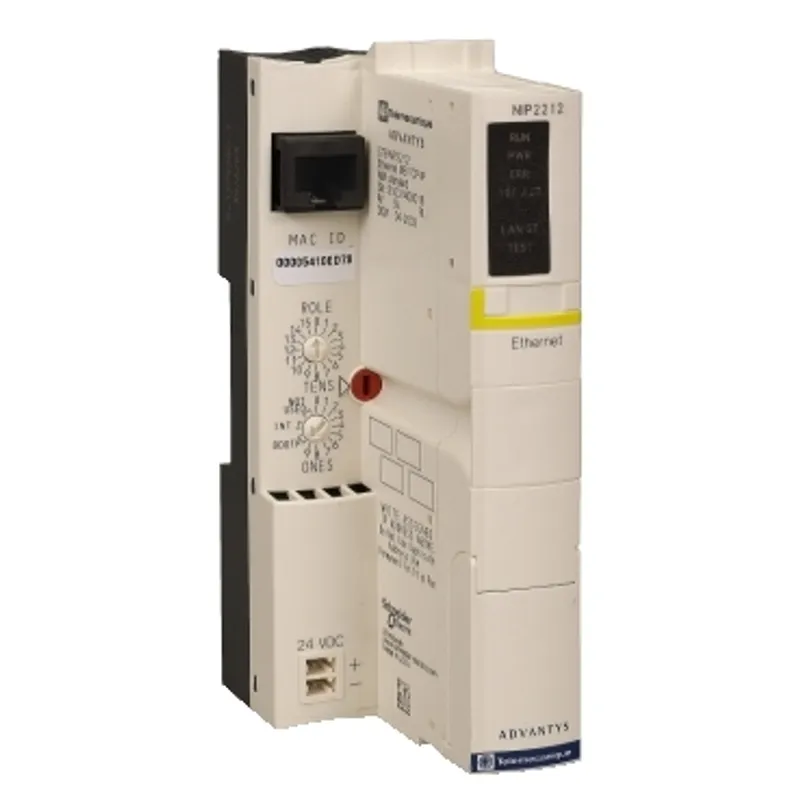

Schneider Electric STBNIP2212
Network interface module, Modicon STB, standard, Ethernet, 10Mbit/s
- MPN
- STBNIP2212
- EAN
- 3595862055116
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBNIP2212?
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard Network Interface Module |
| Communication service | SNMP agent, Modbus TCP/IP messaging, Embedded web (configuration,diagnostics and access to variable), BootP/DHCP protocol |
| Power supply type | SELV |
| Height | 128.3 mm |
| Width | 40.5 mm |
| Depth | 70 mm |
| Net weight | 0.13 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CSA, UL, FM Class 1 Division 2, ATEX Cat 3G, C-Tick |
| Ambient air temperature for operation | 0…60 °C without derating, -25…70 °C with derating factor |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail, 5 gn (f = 58…150 Hz) on 35 mm DIN rail, +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 7.300 cm × 4.400 cm (L × W × H), 163.000 g |
| Package 2 | 30 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 5.193 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
STBNIP2212: frequently asked questions
When can STBNIP2212 be shipped?
STBNIP2212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up STBNIP2212 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for STBNIP2212 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for STBNIP2212, subject to availability and destination.
