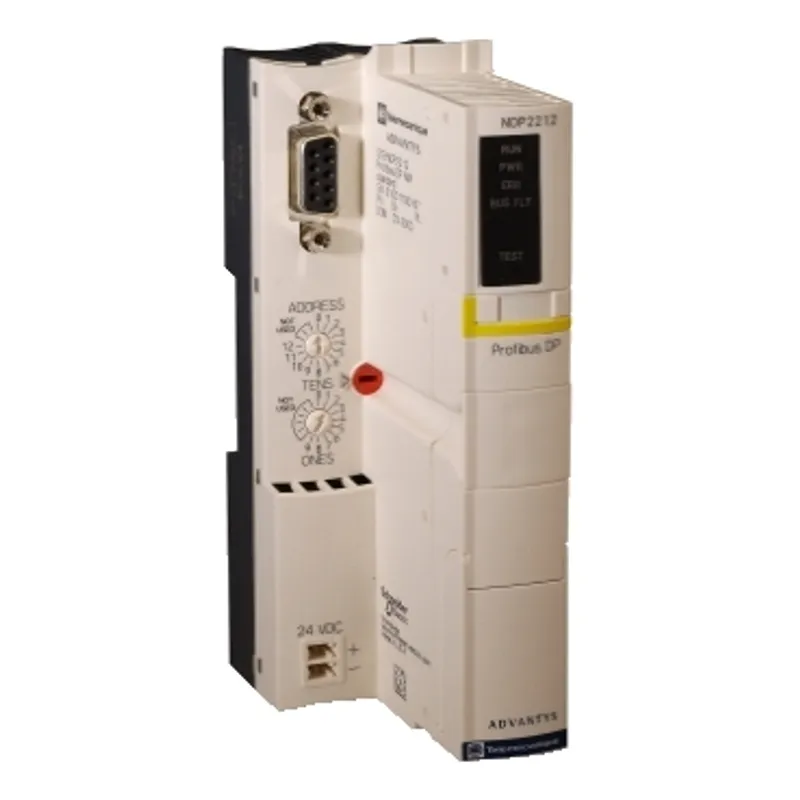

Schneider Electric STBNDP2212
Standard Network Interface Module STB - Profibus DP - 9.6 kbit/s
- MPN
- STBNDP2212
- EAN
- 3595862055130
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBNDP2212?
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 125 slaves with 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are diagnostics, read/write DP slave I/O data etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, ATEX, UL, C-Tick and CSA.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard Network Interface Module |
| Communication service | Diagnostics, Read/write DP slave I/O data, Configuration control, Slave configuration |
| Power supply type | SELV |
| Height | 40 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Marking | CE |
| Relative humidity | 95 % at 60 °C without condensation |
Packaging
| Package 1 | 1 PCE, 13.0 cm × 4.7 cm × 7.0 cm (L × W × H), 177.0 g |
| Package 2 | 30 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 5.588 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
STBNDP2212: frequently asked questions
When can STBNDP2212 be shipped?
STBNDP2212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up STBNDP2212 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for STBNDP2212 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for STBNDP2212, subject to availability and destination.
