Schneider Electric NSYSMPS8
Mounting plate sliding rails, PanelSeT SFN, PanelSeT SF, D800mm , set of 2
- MPN
- NSYSMPS8
- EAN
- 3606485132174
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSMPS8?

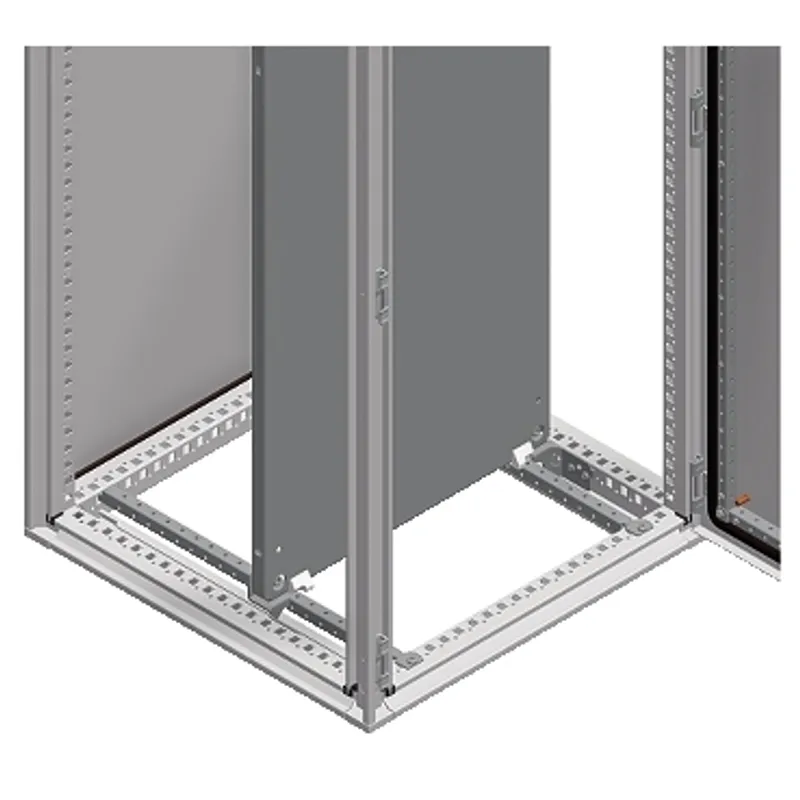

Mounting plate sliding rail for PanelSeT SFN electrical enclosures with nominal depth of mm. They are mounted at the bottom of the enclosure. The mounting plate slides along these rails when introduced in the enclosure. Once the mounting plate is installed and fixed to the brackets, the sliding rails can be removed to maximize the cable entry surface, and can be installed depthwise in other positions. The set includes 2 rails and fixing elements. They are made of galvanized steel.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Mounting plate |
| Range compatibility | PanelSeT SF |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom of enclosure, in depth |
| Product destination | For mounting plate |
| Device composition | 2 rail, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
| Height | 19 mm |
| Width | 29 mm |
| Depth | 744 mm |
Packaging
| Package 1 | 1 PCE, 78.000 cm × 5.000 cm × 3.000 cm (L × W × H), 1.140 kg |
| Package 2 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 22.800 kg |
