Schneider Electric
NSYSMP2D8Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D800mm
Schneider Electric NSYSMPS6
Mounting plate sliding rails, PanelSeT SFN, PanelSeT SF, D600mm , set of 2
- MPN
- NSYSMPS6
- EAN
- 3606485132167
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSMPS6?

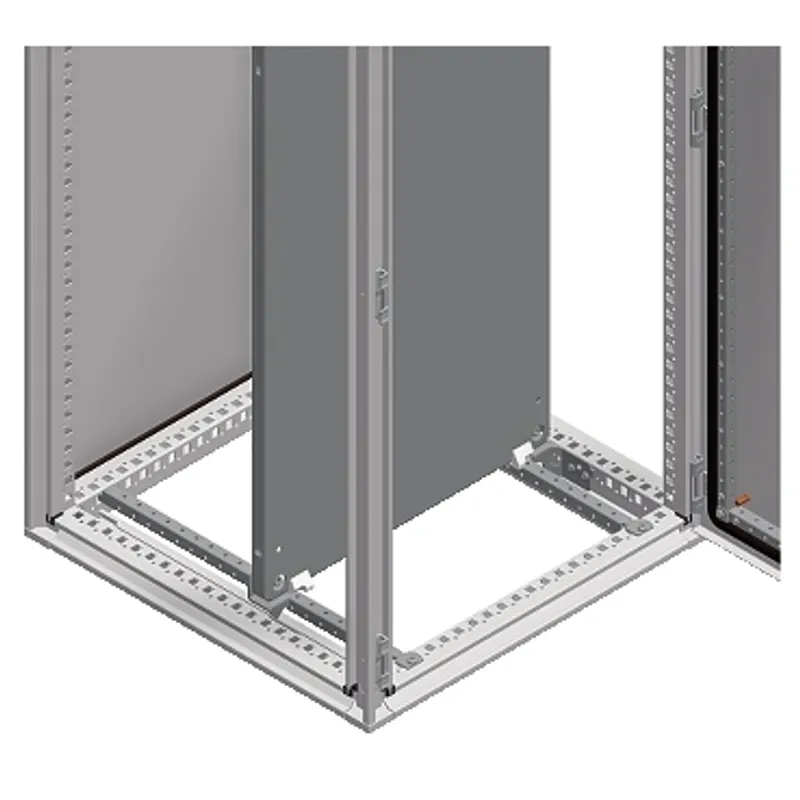

Mounting plate sliding rail for PanelSeT SFN electrical enclosures with nominal depth of mm. They are mounted at the bottom of the enclosure. The mounting plate slides along these rails when introduced in the enclosure. Once the mounting plate is installed and fixed to the brackets, the sliding rails can be removed to maximize the cable entry surface, and can be installed depthwise in other positions. The set includes 2 rails and fixing elements. They are made of galvanized steel.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Mounting plate |
| Range compatibility | PanelSeT SF, PanelSeT SFHD, Altivar ATV610 |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom of enclosure, in depth |
| Product destination | For mounting plate |
| Device composition | 2 rail, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
Packaging
| Package 1 | 1 PCE, 58.000 cm × 5.000 cm × 3.500 cm (L × W × H), 834.000 g |
| Package 2 | 30 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 25.020 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSMPS6: frequently asked questions
When can NSYSMPS6 be shipped?
NSYSMPS6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMPS6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMPS6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMPS6, subject to availability and destination.
