Schneider Electric
NSYSMPS6Mounting plate sliding rails, PanelSeT SFN, PanelSeT SF, D600mm , set of 2
Schneider Electric NSYSMPSE12
Side entry rails for the mounting plate, PanelSeT SFN, PanelSeT SF, W1200mm , set of 2
- MPN
- NSYSMPSE12
- EAN
- 3606485132204
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

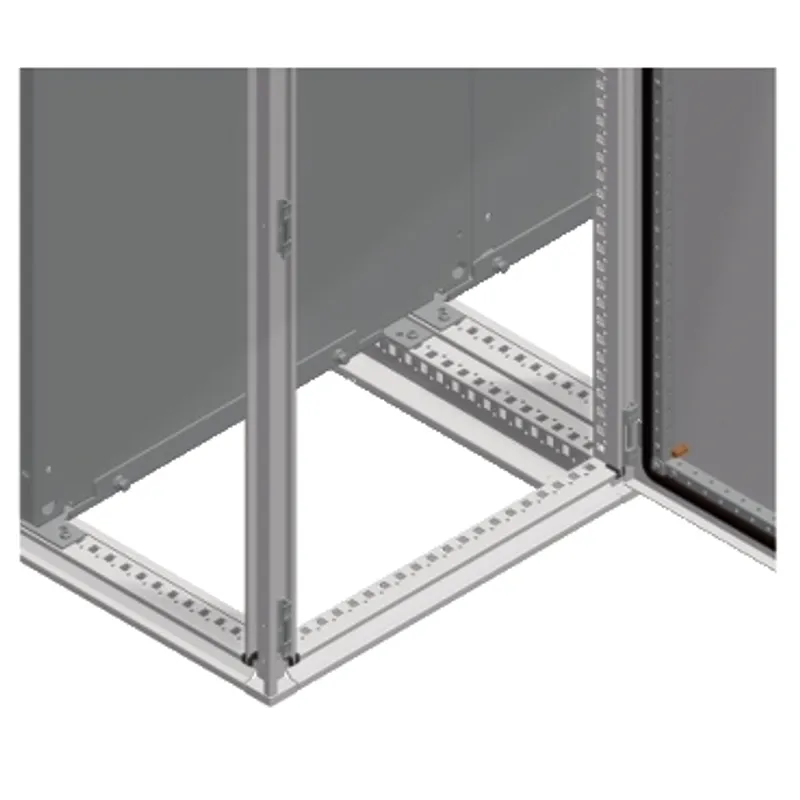

What is the Schneider Electric NSYSMPSE12?
Side entry rails for PanelSeT SFN electrical enclosures with nominal width of mm. They are mounted on top and bottom of the enclosure, and can be adjusted in depth every 25 mm. Once installed, mounting plates can be introduced in the enclosure from the side. These rails are made of steel and has a zinc coated surface finish. The set includes 2 rails and fixing elements.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Rail |
| Range compatibility | PanelSeT SF |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom of enclosure, in width |
| Product destination | Mounting plates in coupled enclosures |
| Device composition | 2 rail, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Width | Nominal: 1200 mm |
Packaging
| Package 1 | 1 PCE, 0.123 cm × 0.810 cm × 0.600 cm (L × W × H), 6.412 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSMPSE12: frequently asked questions
When can NSYSMPSE12 be shipped?
NSYSMPSE12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSMPSE12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSMPSE12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMPSE12, subject to availability and destination.
