Schneider Electric NSYMR86
Monobloc perforated plates H800xW600mm with universal perforations 11x26mm
- MPN
- NSYMR86
- EAN
- 3606480183768
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMR86?

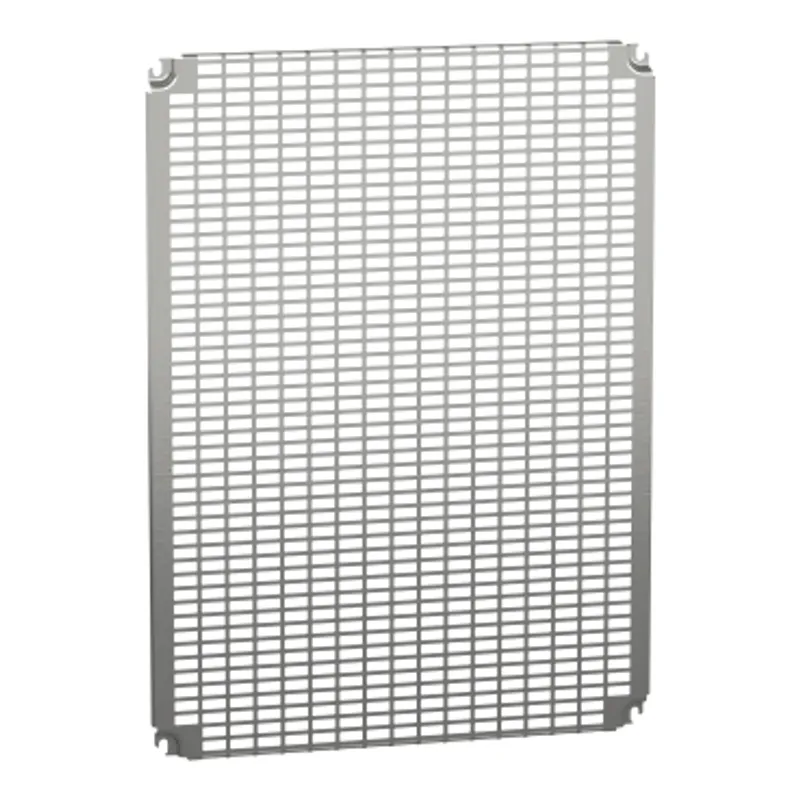

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is800 x W is600 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 867 slots. Variant particularity is Installation in rear of enclosure.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 800 mm W: 600 mm, - H: 800 mm W: 1200 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |

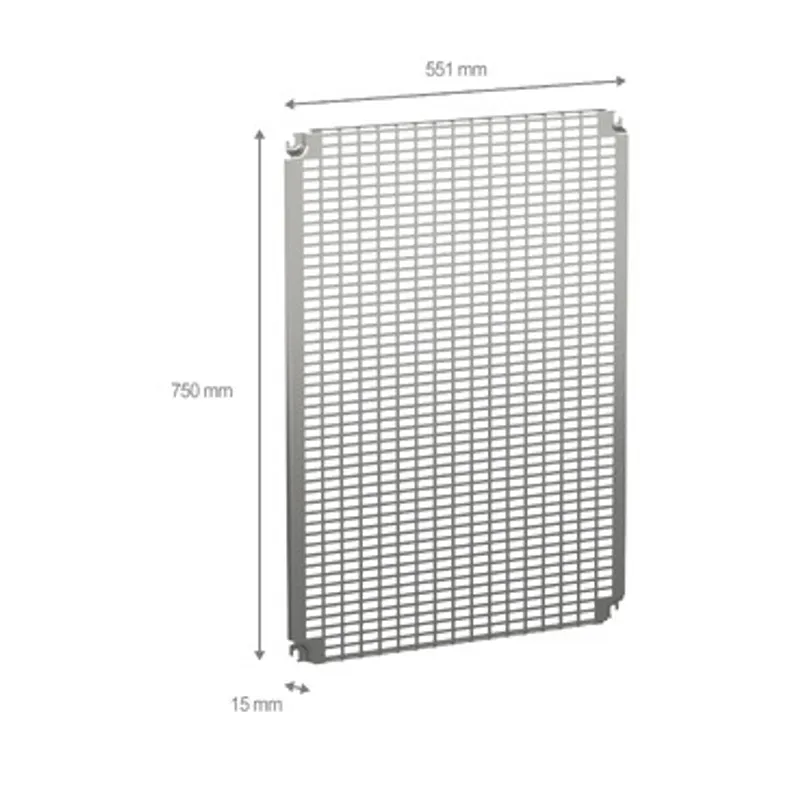

| Height | 750 mm |
| Width | 551 mm |
| Depth | 15 mm |
| thickness | 2 mm |
| Net weight | 3.16 kg |
| Number of slots | 867 |
| Variant particularity | With enclosures H800 x W1200, Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 75.500 cm × 55.500 cm × 2.000 cm (L × W × H), 3.180 kg |
| Package 2 | 126 PAM, 120.000 cm × 100.000 cm × 90.000 cm (L × W × H), 429.000 kg |
