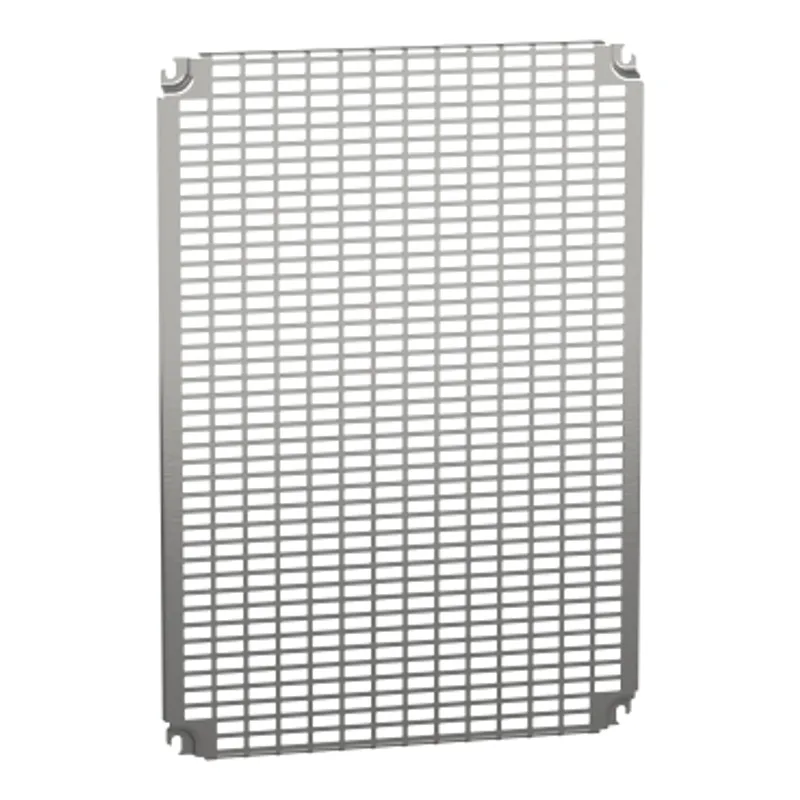

Schneider Electric NSYMR75
Monobloc perforated plates H700xW500mm with universal perforations 11x26mm
- MPN
- NSYMR75
- EAN
- 3606480183744
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMR75?
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is700 x W is500 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 616 slots. Variant particularity is Installation in rear of enclosure.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 700 mm W: 500 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |

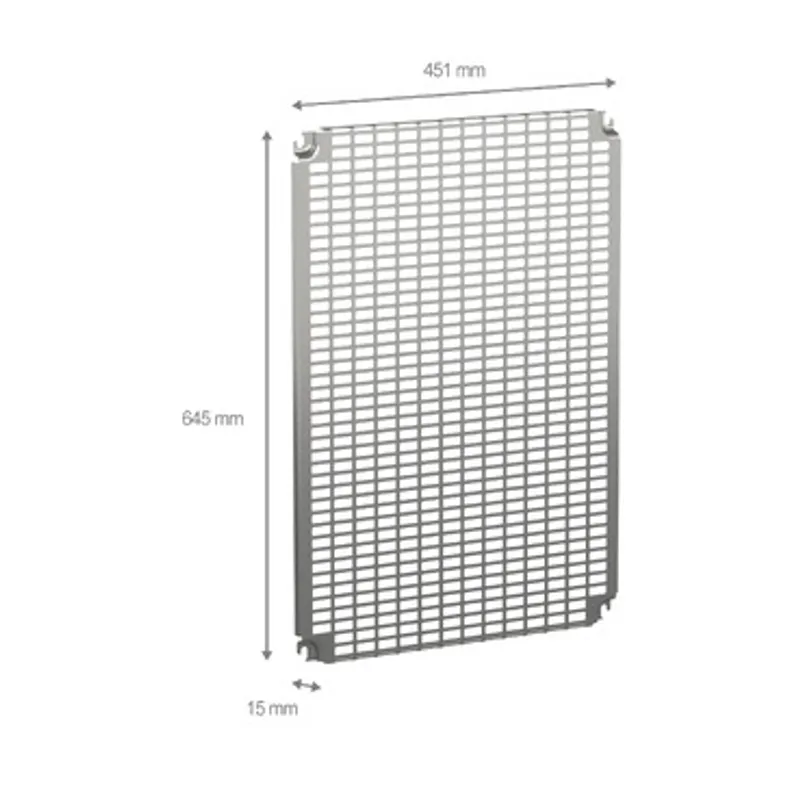

| Height | 645 mm |
| Width | 451 mm |
| Depth | 15 mm |
| thickness | 2 mm |
| Net weight | 2.34 kg |
| Number of slots | 616 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 64.500 cm × 45.000 cm × 15.000 cm (L × W × H), 2.268 kg |
| Package 2 | 162 PAM, 120.000 cm × 100.000 cm × 91.000 cm (L × W × H), 398.000 kg |
