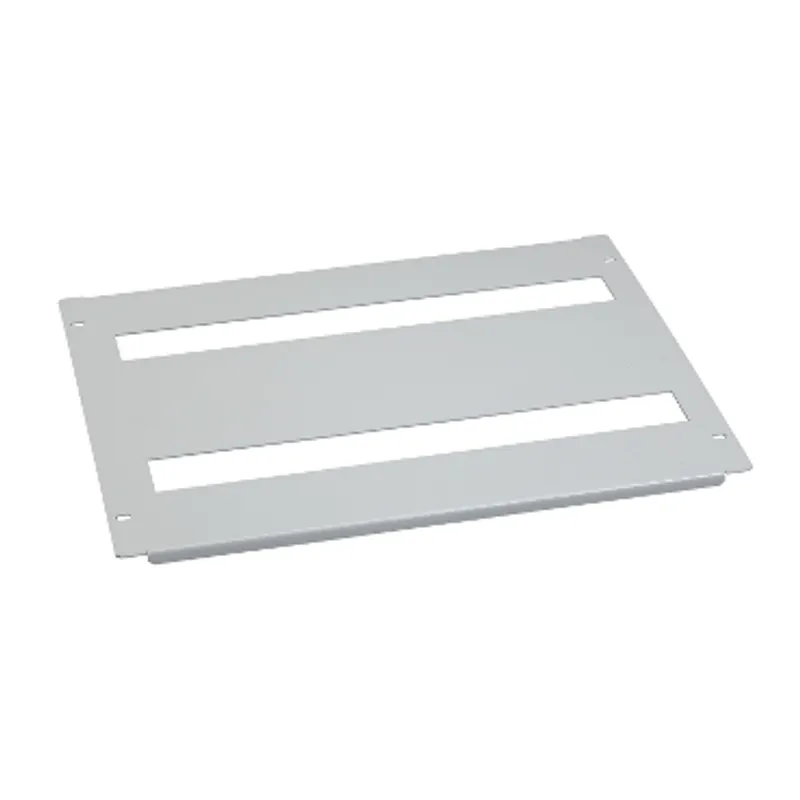

Screwed-on cut-out cover plate, PanelSeT SFN, SF, SM, for electrical enclosure W600mm, 1 cut out, H150mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.09 kg |
Shipping & availability
When can NSYMUC156 be shipped?
NSYMUC156 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMUC156 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMUC156 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMUC156, subject to availability and destination.
Screwed-on cut-out grey cover plate (RAL 7035) with 1 cut-out made from steel for Spacial SF and Spacial SM enclosures Mounted by screws on chassis coupling set The nominal width is 600mm, fixing centers width is 478mm and real width is 502mm The nominal height is 150mm and real height is 149,5mm The real depth is 12mm Maximum number of 18mm modules is 24 Number of horizontal rows is 1
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Multi-purpose |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Nominal dimensions of the housing | - H: 150 mm W: 600 mm |
| Mounting location | On chassis coupling set |
| Device composition | Fixing elements, 1 cover plate |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws |
| Number of horizontal rows | 1 |
| Total number of 18 mm modules | 24 |
| Type of front plate | With cut-out |
| Number of cut-out | 1 cut-out |
| Height | Nominal: 150 mm, Real: 149.5 mm |
| Width | Nominal: 600 mm, Fixing centers: 478 mm, Real: 502 mm |
| Depth | Real : 12 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 51.000 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 2.000 cm |
| Package 1 Weight | 1.090 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 231.000 kg |
| Warranty | 18 months |
