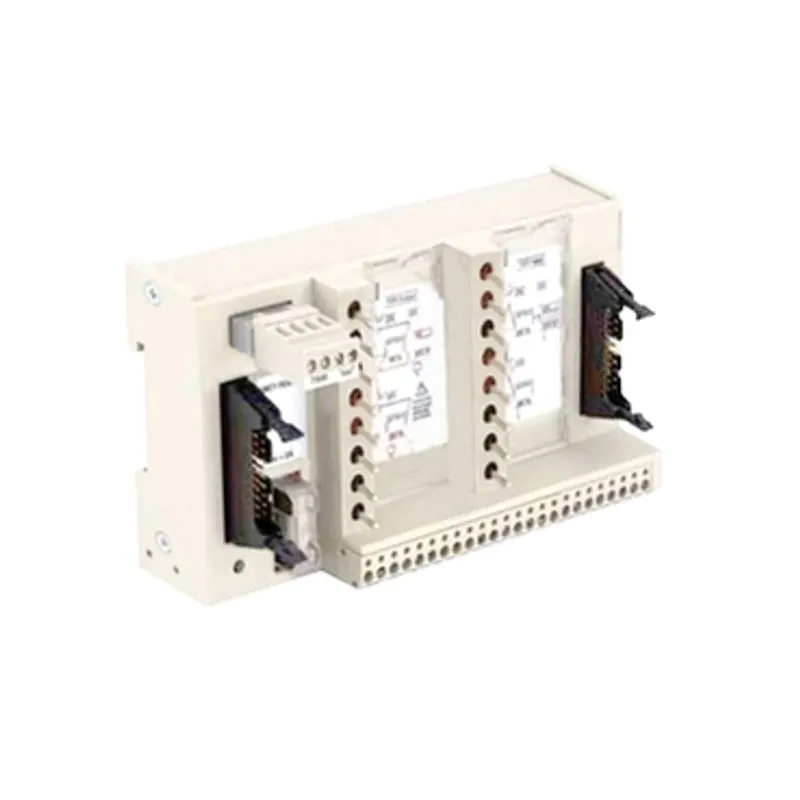

Schneider Electric ABE7TES160
Input/output simulator sub-base - 16 channels
- MPN
- ABE7TES160
- EAN
- 3389110644715
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7TES160?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a 16-channel simulator sub-base." "It is a connection accessory between PLC I/O module and the Telefast I/O sub-bases." "It is designed For inhibiting digital I/O, displaying digital I/O, continuity of digital I/O and for forcing digital I/O." "It is furnished with 2 connectors for electrical connection, with a 20-way HE10 connector." "It is a simulator sub-base with IP20 degree of protection. It weighs 0.327kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "It is suitable for use with ABE7P, ABE7H, ABE7R and ABE7S sub-bases." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Accessory / separate part designation | 16-channel simulator sub-base |
| Accessory / separate part type | Simulator sub-base |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Between PLC I/O module and the Telefast I/O sub-base |
| Number of channels | 16 |
| Product specific application | For inhibiting discrete I/O, For displaying discrete I/O, For continuity of discrete I/O, For forcing discrete I/O |
| Quantity per set | Set of 1 |
| Product compatibility | ABE7P, ABE7H, ABE7R, ABE7S |
| Electrical connection | 2 connectors |
| Connector type | HE10 |
| Net weight | 0.35 kg |
Packaging
| Package 1 | 1 PCE, 19.000 cm × 9.800 cm × 6.000 cm (L × W × H), 327.000 g |
| Package 2 | 18 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.430 kg |
