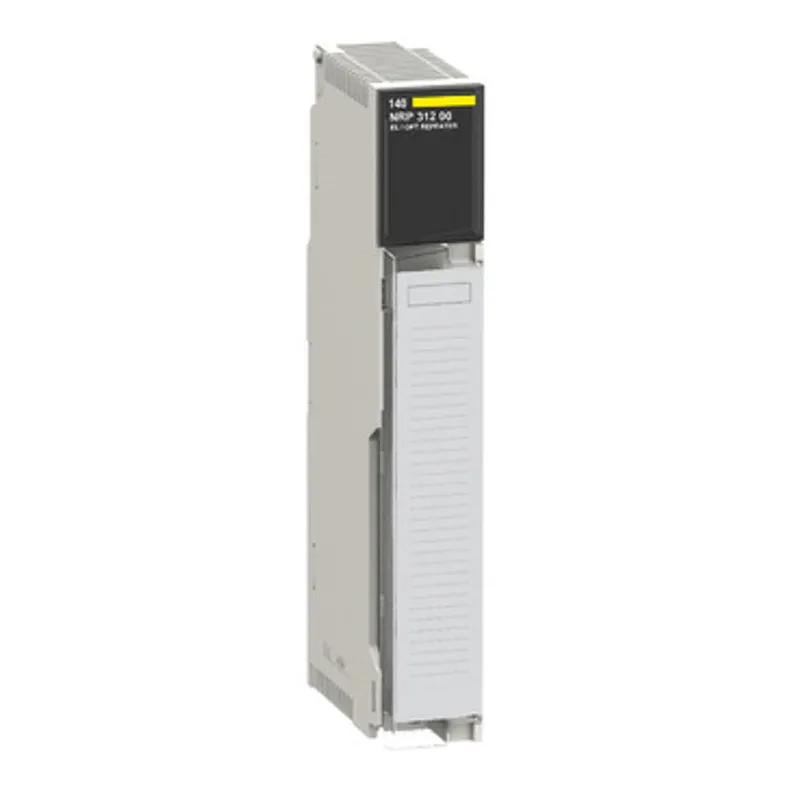

Schneider Electric 140NRP31200 – Ethernet fibre converter MM/LC 2CH - 100 MB

MPN: 140NRP31200 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original 140NRP31200 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Quantum
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.55 kg
UPC / EAN	3595864179216
Recommended replacement	BMXNRP0200
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the 140NRP31200 now that it is discontinued?

Yes. Schneider Electric has discontinued the 140NRP31200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXNRP0200 as its successor — we can quote both.

When can 140NRP31200 be shipped?

140NRP31200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140NRP31200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140NRP31200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140NRP31200, subject to availability and destination.

Schneider Electric Ethernet fibre converter MM/LC 2CH - 100 MB, manufacturer part number 140NRP31200. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range of product	Modicon Quantum automation platform
Product or component type	Fibre converter
Optic fiber type	Multi mode
Bus current requirement	1000 mA
Power dissipation in W	5 W
Inrush current	1 A at 5 V DC
Number of port	2 fiber optic, connector type: LC, 2 ETHERNET, connector type: RJ45
Local signalling	1 LED green with RDY marking for module status, 1 LED red with ERR marking for internal fault, module failure, 1 LED green with STS1 marking for channel 1 link status, 1 LED green with FX1 ACT marking for channel 1 communication status, 1 LED green with STS2 marking for channel 2 link status, 1 LED green with FX2 ACT marking for channel 2 communication status
Wavelength	1310 nm
Optic distance between 2 transceivers	2000 m (50/125 µm), optical power: -23.5…-14 dBm, 3000 m (62.5/125 µm), optical power: -20…-14 dBm
Attenuation	-23.5…-14 dB (50/125 µm), -20…-14 dB (62.5/125 µm)
Rise/fall time	3 ns
Receiver sensitivity	- 30 dBm
Detected silence	-45 dBm
Marking	CE
Material	PC (polycarbonate)
Width	40.34 mm
Height	250 mm
Depth	103.85 mm
Net weight	0.554 kg
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	0…95 %
Operating altitude	0...2000 m
Standards	CSA C22.2 No 142, FM Class 1 Division 2, UL 508
Product certifications	C-Tick, TÜV, Merchant Navy

Packaging

Package 1	1 PCE, 31.500 cm × 16.500 cm × 5.000 cm (L × W × H), 590.000 g
Package 2	7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.731 kg
