Schneider Electric

Schneider Electric BMXNRP0200

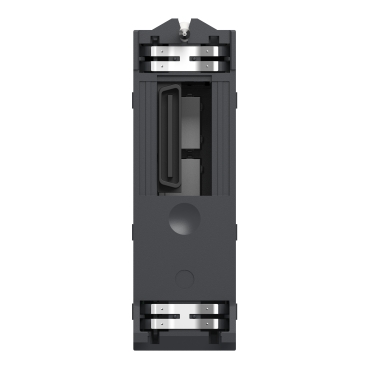

Fiber converter module;Modicon X80;multimode

MPN: BMXNRP0200
EAN: 3595864142753
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXNRP0200?

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Specifications

Range of product	Modicon X80
Product or component type	Fibre optic repeater
Optic fiber type	Multi mode
Rated voltage	24 V
Current consumption	140 mA typical, 200 mA maximum
Function available	Hot swap

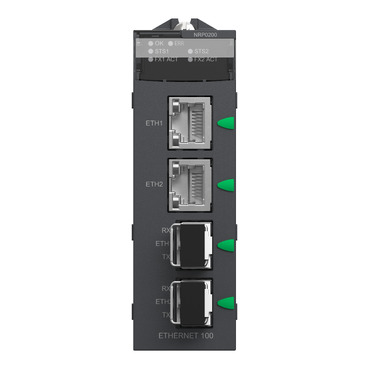

Number of port	2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u, 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u
Local signalling	1 LED (green) for power supply status, 1 LED (red) for error condition (ERR), 2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity
Wavelength	1310 nm
operating distance	0...2000 m
Attenuation	-23.5…-14 dB (50/125 µm), -20…-14 dB (62.5/125 µm)
Rise/fall time	3 ns
Receiver sensitivity	- 31...- 14 dBm
Marking	CE
Width	32 mm
Height	100 mm
Depth	86 mm
Net weight	203 g
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…70 °C
Relative humidity	0…95 %
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications	CE, RCM, CSA, EAC, Merchant Navy, UL
Standards	IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Dielectric strength	1400 V DC between field and bus, 500 V DC between channels
IP degree of protection	IP20
Operating altitude	0...4000 m

Packaging

Package 1	1 PCE, 13.000 cm × 11.200 cm × 5.800 cm (L × W × H), 249.000 g
Package 2	14 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.789 kg
