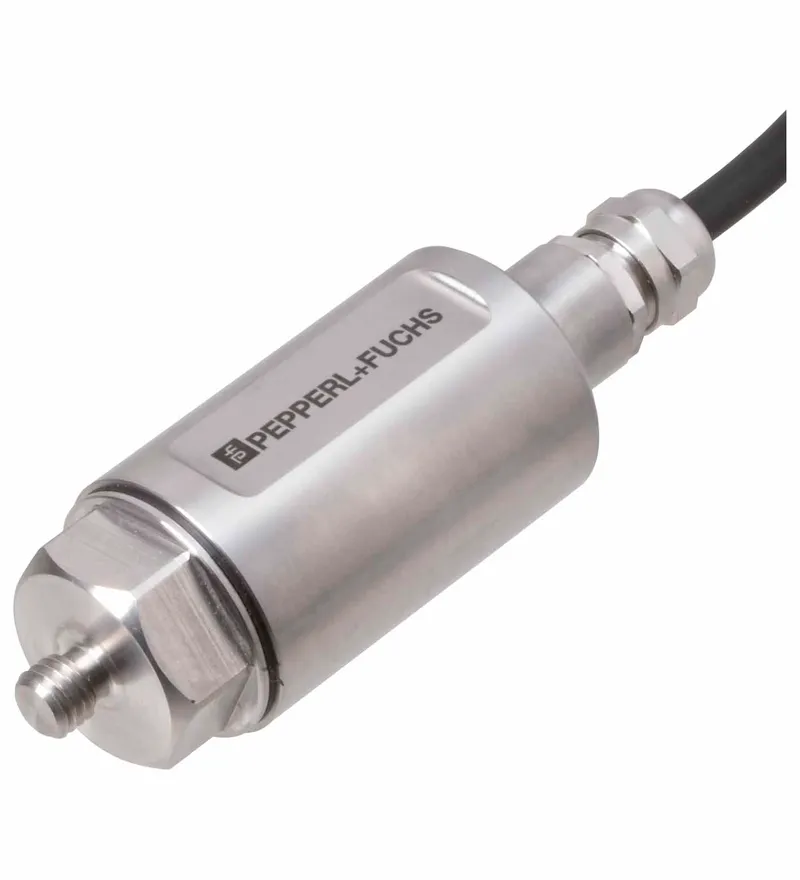

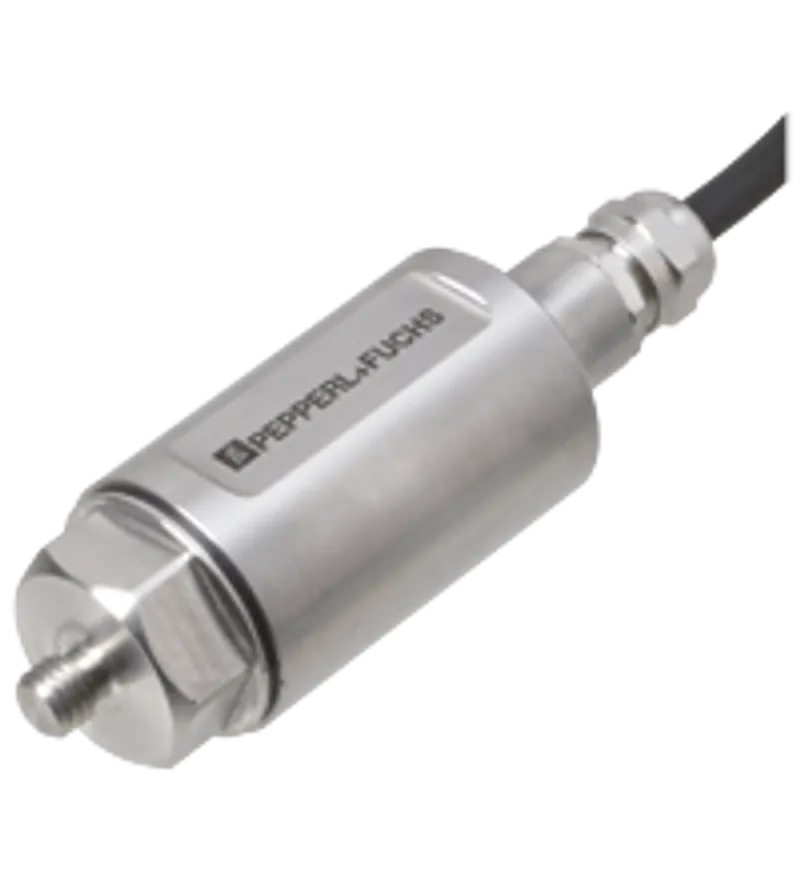

Pepperl Fuchs VIM62PP-E1V16-0NE-I420KA4
Vibration sensor
- MPN
- VIM62PP-E1V16-0NE-I420KA4
- Category
- Vibration Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs VIM62PP-E1V16-0NE-I420KA4?
Extended temperature range
Screw-in thread for simple installation
Simple electrical commissioning
Rugged stainless steel housing
Vibration velocity in mm/s (rms) acc. to DIN ISO 10816/20816
Suitable for use in harzadous area up to Zone 1/21 with type of protection explosionproof enclosure
Vibration sensor with analog current output, increased temperature resistance, suitable up to Zone 1/21 with type of protection explosionproof enclosure, Series: Performance Plus Line, Measured variable: Vibration velocity, Output type: analog output, current , output of the vibration variable, Equipment protection level Gb: IECEx CSAE 22.0042X, Equipment protection level Db: IECEx CSAE 22.0042X, Equipment protection level Gb: CSANe 21 ATEX 1074 X, Equipment protection level Db: CSANe 21 ATEX 1074 X
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70141166-100009 |
| Type | Vibration sensor |
| Measuring technology | MEMS |
| Series | Performance Plus Line |
| Measured variable | Vibration velocity |
| Measuring range: Vibration velocity | 0 ... 16 mm/s v-rms |
| Measurement accuracy | ± 0.1 mm/s (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 for measuring range greater than 8 mm/s |
| Cross-sensitivity | < 5 % of the partial lateral acceleration, which acts exactly 90° to the measuring axis |
| Frequency range | 10 ... 1000 Hz |
| Averaging time | for v-rms: 2 s |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Fusing | external fuse is required: 3 A , semi-time-lag , 30 V DC |
| Operating voltage | 10 ... 30 V DC UB |
| Current consumption | max. 25 mA |
| Power consumption | max. 750 mW P0 |
| Time delay before availability | 10 s (rms filter is calculated intially with measurement data before they are available at the output) tv |
| Surge protection | up to 2 kV |
Output 1

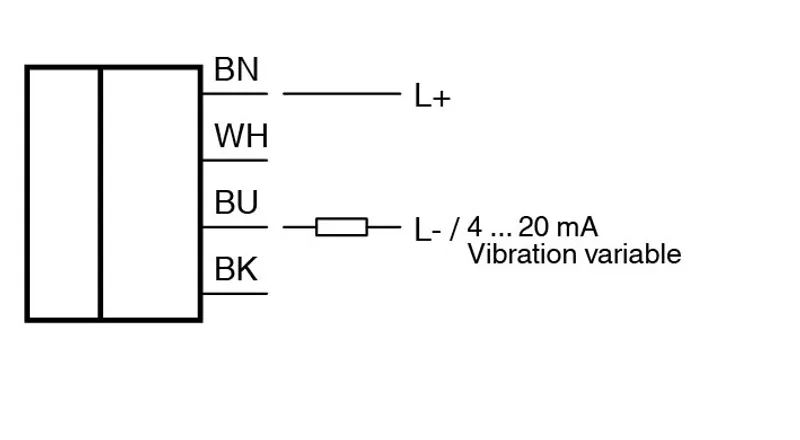

| Output type | analog output, current output of the vibration variable |
| Output current | 4 ... 20 mA |
| Load resistor | ≤ 500 Ω |
Standard conformity
| Degree of protection | DIN EN 60529, IP66, IP67 |
| Shock resistance | DIN EN 60068-2-27, 60 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 16.5 g, 10 ... 1000 Hz |
| Vibration evaluation | DIN ISO 10816/20816 |
Approvals and certificates
| IECEx approval: Equipment protection level Gb | IECEx CSAE 22.0042X |
| IECEx approval: Equipment protection level Db | IECEx CSAE 22.0042X |
| ATEX approval: Equipment protection level Gb | CSANe 21 ATEX 1074 X |
| ATEX approval: Equipment protection level Db | CSANe 21 ATEX 1074 X |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Measuring head temperature | -40 ... 125 °C (-40 ... 257 °F) directly at the mounting point |
| Storage temperature | -40 ... 60 °C (-40 ... 140 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP66 / IP67 only in connected state |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 10 m L |
| Cable: Tension force | max. 80 N (tensile loading directly at the cable, not at the metal conduit if attached) |
| Mass | 740 g |

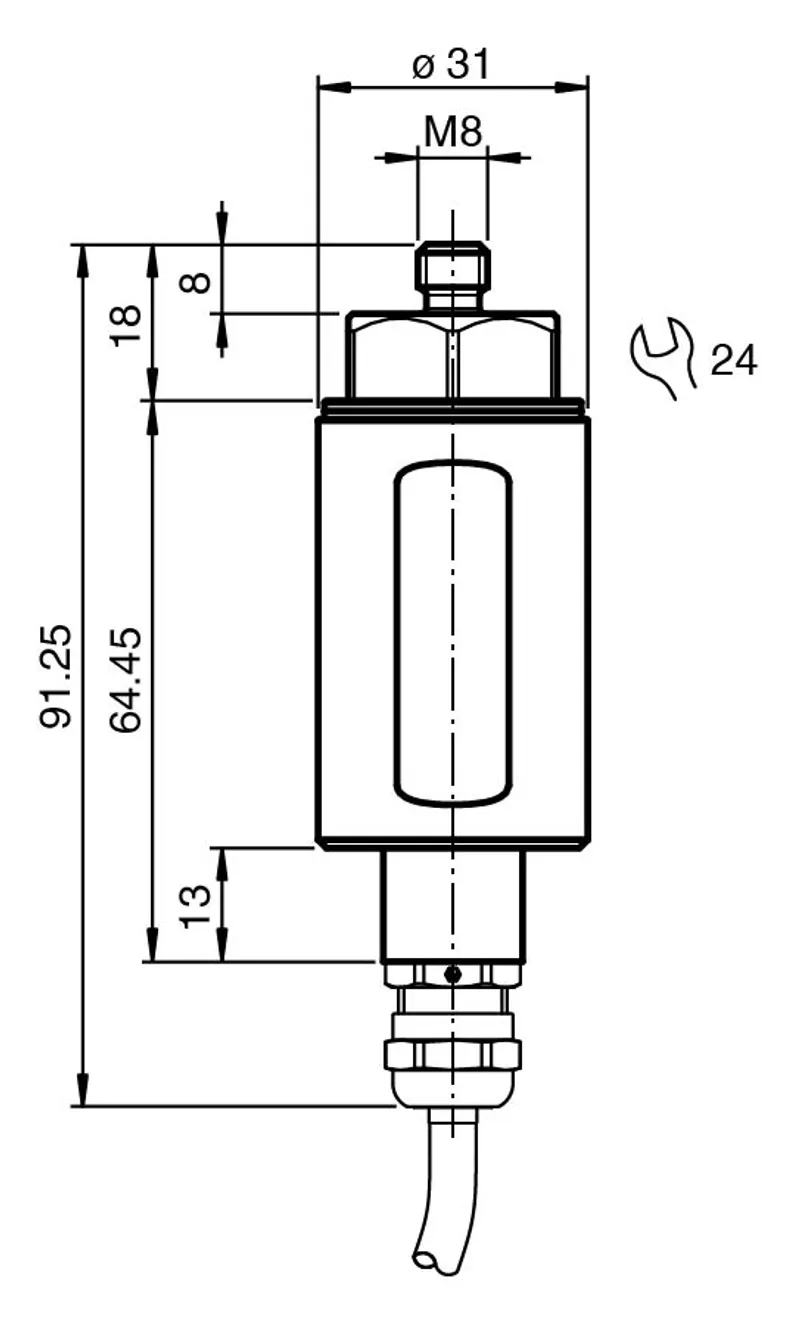

| Dimensions: Length | 82.35 mm |
| Dimensions: Diameter | 31 mm |
General information
| Use in the hazardous area | see instruction manuals Only use accessories specified by the manufacturer. |
