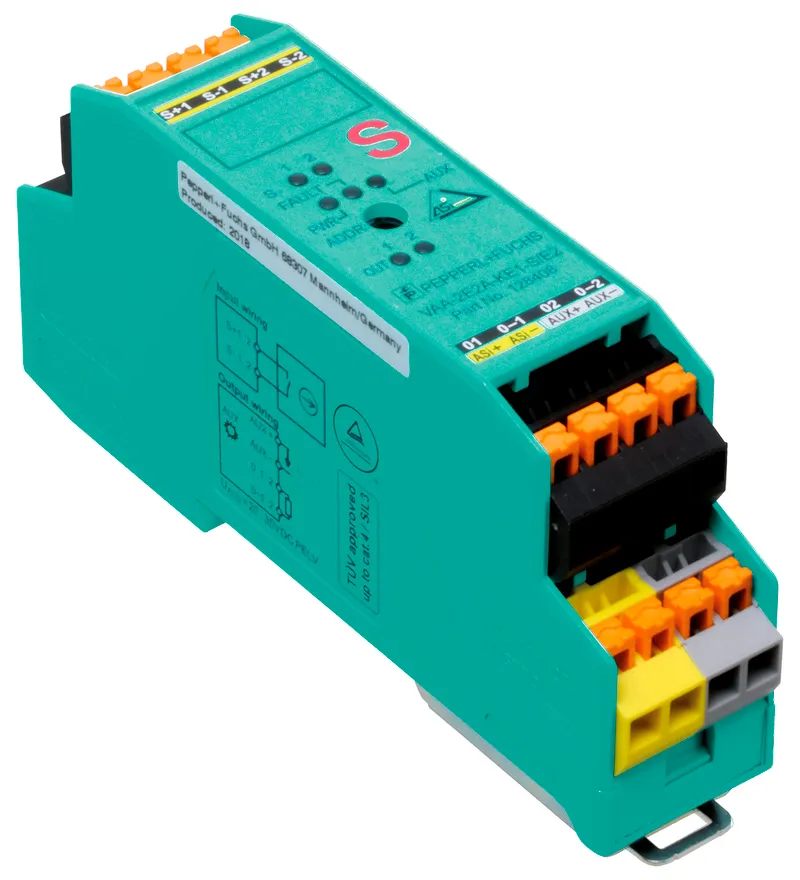

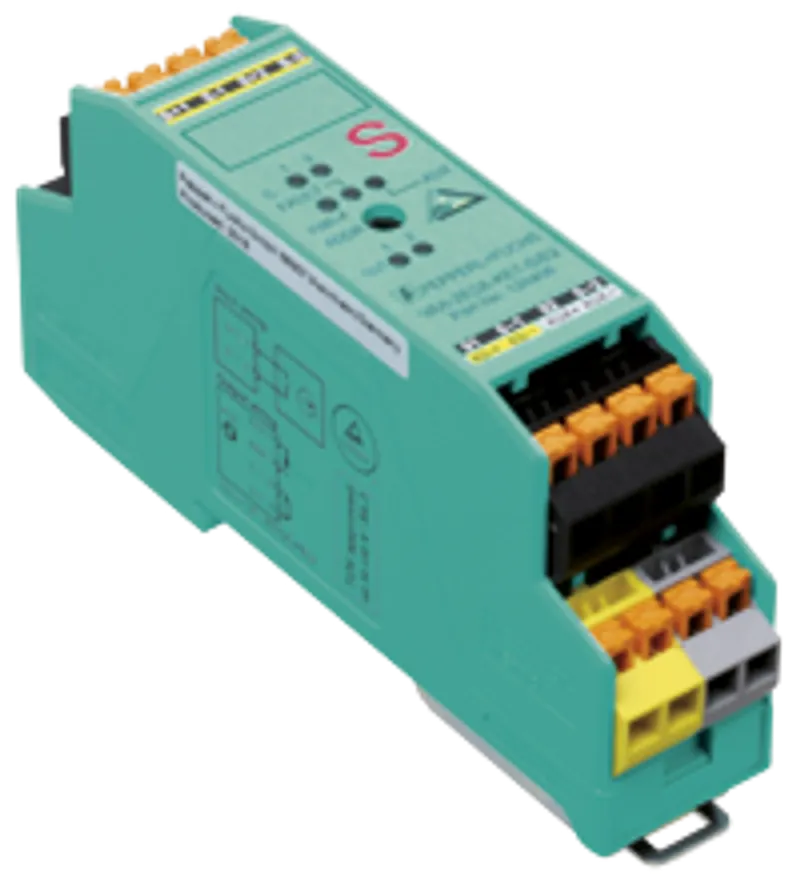

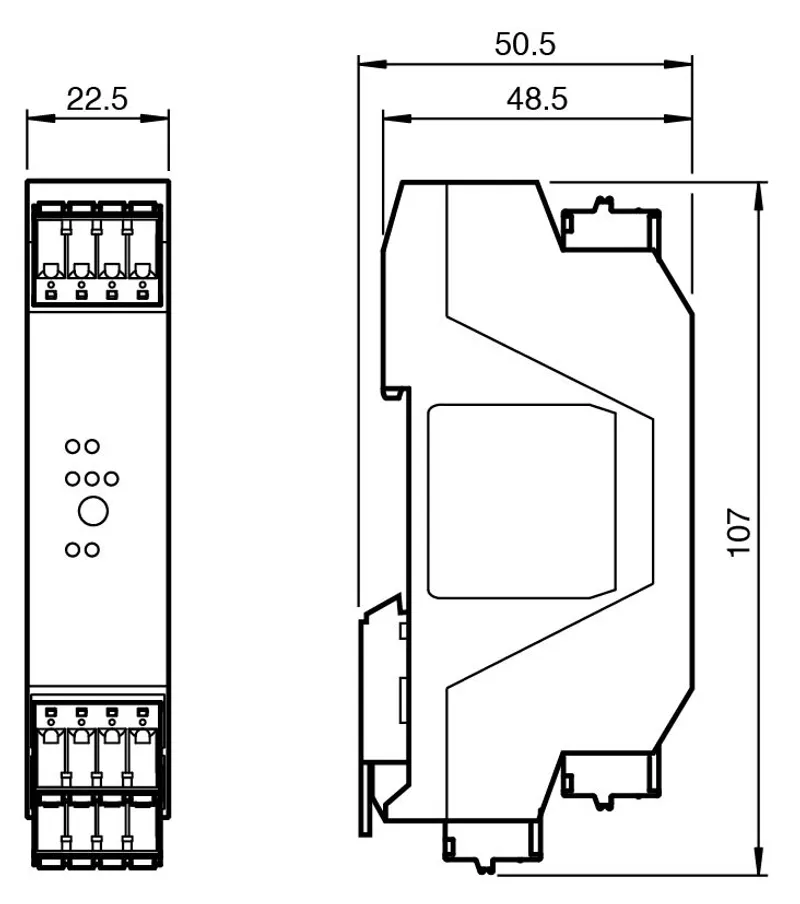

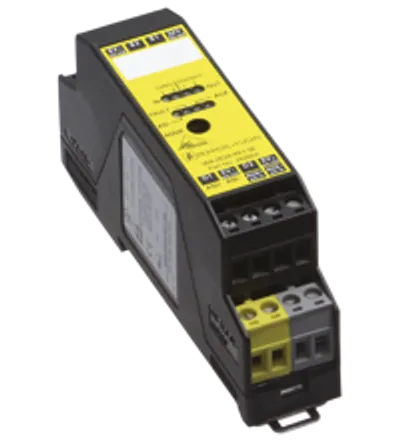

Pepperl Fuchs VAA-2E2A-KE1P-S/E2

AS-Interface safety module. KE1-Safety module for the control cabinet, 2 safety-related inputs and 2 conventional electronic outputs. Node type: Safety-Slave. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.1. UL File Number: E223772. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. MTTFd: 200 a. PFHd: 0. PFD: 0. LED FAULT: error display; LED redred: communication error or address is 0red flashing: Output supply overload. LED PWR: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED IN: switching state (input); 2 LED yellow. LED OUT: Switching state (output); 2 LED yellow. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 70 mA. Protection class: III. Surge protection: UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV). Number/Type: 2 safety-related inputs for mechanical contacts, crossed-circuit monitored:2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or1 2-channel contact: up to category 4/PL e to ISO 13849-1 Cable length must not exceed 300 m per input.. Supply: from AS-Interface. Voltage: 20 ... 30 V DC pulsed. Current loading capacity: input current limited ≤ 15 mA,overload and short-circuit resistant. Number/Type: 2 conventional electronic outputs, PNP. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 0.5 A per output. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61496-1:2004: . Directive 2014/30/EU: EN 62026-2:2013 EN 61496-1:2004. Insulation coordination: EN 50178:1998. Electromagnetic compatibility: EN 61000-6-2:2005, EN 61000-4-5:2005 1 kV asymmetric, criterion B, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Electrical safety: EN 50178:1998 IEC 60204-1:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Functional safety: EN ISO 13849-1:2015 up to PL e, IEC 61508:2010 and IEC 62061:2005/A2:2015 up to SIL 3. Standards: NFPA 79:2002. Profile: S-7.B. IO code: 7. ID code: B. ID1 code: F. ID2 code: 0. Data bits (function via AS-Interface): InputOutput. D0 dyn. safety code 1 OUT 1D1 dyn. safety code 1 OUT 2D2 dyn. safety code 2 -D3 dyn. safety code 2 -: . D0: dyn. safety code 1 OUT 1. D1: dyn. safety code 1 OUT 2. D2: dyn. safety code 2 -. D3: dyn. safety code 2 -. Parameter bits (programmable via AS-i): function. P0Logic operation:P0 = 1 (default settings): The outputs are controlled via AS-Interface. P0 = 0: The outputs are controlled via AS-Interface or the inputs. The corresponding output is activated on opening the contacts of an input.P1not usedP2not usedP3not used: . P0: Logic operation:P0 = 1 (default settings): The outputs are controlled via AS-Interface. P0 = 0: The outputs are controlled via AS-Interface or the inputs. The corresponding output is activated on opening the contacts of an input.. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 50 °C (-13 ... 122 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP20. Connection: removable spring terminals Conductor cross-section 0,25 ... 2,5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 80 g. Dimensions: . Height99.6 mmWidth22.5 mmLength48.5 mm: . Height: 99.6 mm. Width: 22.5 mm. Length: 48.5 mm. Mounting: DIN mounting rail. Tightening torque of clamping screws: 0.5 Nm ... 0.6 Nm

Specifications
