Pepperl Fuchs VAA-2E2A-KE1-SE
AS-Interface safety module
- MPN
- VAA-2E2A-KE1-SE
- Category
- Safety at Work
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs VAA-2E2A-KE1-SE?
Two inputs for connecting a noncontact safety device (opto-electronic safety device) PL e in accordance with EN ISO 13849-1
Inputs for photoelectric protective systems
Housing with removable terminals
Power supply of the inputs from the AUX auxiliary voltage
Power supply of outputs from auxiliary voltage AUX
Function display for bus, auxiliary voltage AUX, inputs and outputs
Up to SIL3 (EN 62061) and PLe (EN13849-1)

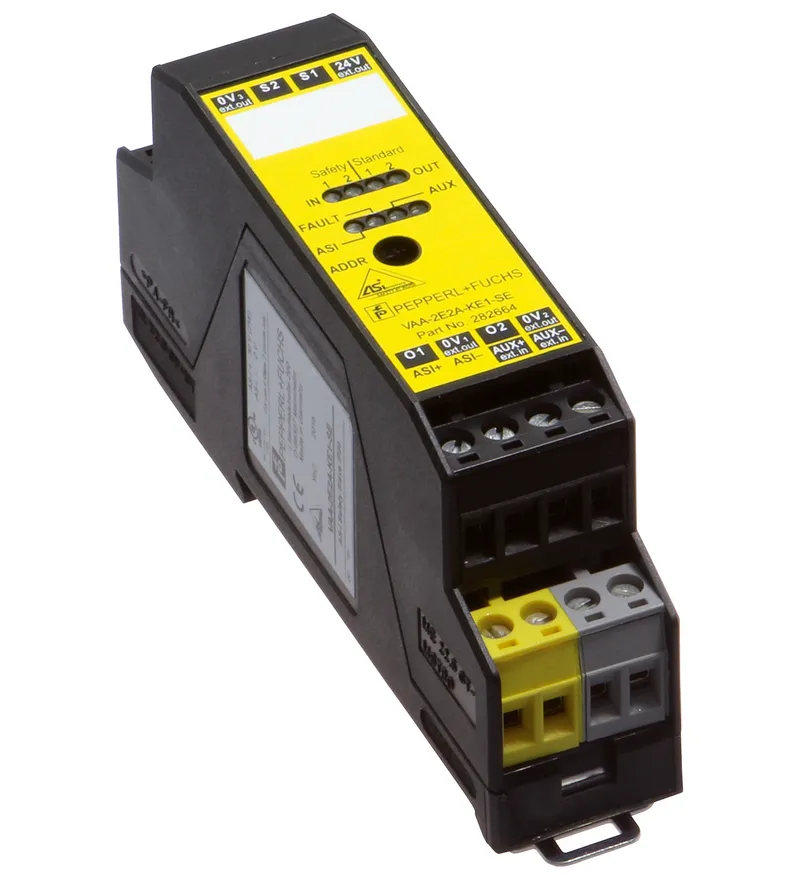

KE1-Safety module for the control cabinet, 2 safety-related inputs and 2 conventional electronic outputs
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 282664 |
| Node type | Safety-Slave |
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.1 |
| UL File Number | E223772 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| Mission Time (TM) | 20 a |
| PFHd | 2.83 E-9 |
| PFD | 8 E-7 |
Indicators/operating means
| LED FAULT | Fault indication: red LED Red: communication error or address is 0 Red flashing: peripheral fault |
| LED AS-i | AS-Interface voltage; LED green |
| LED AUX | auxiliary voltage UAUX ; LED green |
| LED IN | switching state (input); 2 LED yellow |
| LED OUT | Switching state (output); 2 LED yellow |
Electrical specifications
| Auxiliary voltage (output) | 24 V (20 VDC… 30 VDC) UAUX |
| Rated operating voltage | 22 ... 31.6 V Ue |
| Rated operating current | ≤ 70 mA Ie |
| Protection class | III |
| Current consumption | max. 35 mA (AS-Interface) max. 4 A (AUX) |
| Surge protection | UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV) |
Input
| Number/Type | 2 inputs for a 2-channel active optoelectronic protective devices (AOPD) for safeguarding positions and areas of danger up to PL e in accordance with EN / ISO 13849-1 |
| Supply | from AUX |
| Voltage | 20 ... 30 V DC pulsed |
| Current loading capacity | 1800 mA for power supply of external sensors from AUX |
| Switching point | Vin> 11 V for high level, input current ≥ 2.5 mA at 15 V |
Output
| Number/Type | 2 conventional electronic outputs, short-circuit proof |
| Supply | from AUX |
| Current | 1 A per output note derating |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 62026-2:2013 EN 61326-3-1:2008 |
Standard conformity
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 EN 61131-2:2007 |
| Degree of protection | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| AS-Interface | EN 62026-2:2013 |
| Functional safety | EN ISO 13849-1:2008 up to PL e EN 62061:2005/A1:2013 up to SIL 3 |
Programming instructions
| Profile | S-7.B.1. |
| IO code | 7 |
| ID code | B |
| ID1 code | F |
| ID2 code | 1 |
| Data bits (function via AS-Interface) | InputOutput |
| D0 | dyn. safety code 1 OUT 1 |
| D1 | dyn. safety code 1 OUT 2 |
| D2 | dyn. safety code 2 - |
| D3 | dyn. safety code 2 - |
| Parameter bits (programmable via AS-i) | function |
| P0 | Communication monitoring P0 = 0 monitoring = off, the outputs maintain the status if communication fails P0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings) |
| P1 | not used |
| P2 | not used |
| P3 | not used |
Ambient conditions
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) , no moisture condensation |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Altitude | ≤ 2000 m above MSL |
| Shock and impact resistance | ≤ 15 g at T ≤ 11 ms, 10 ... 55 Hz, 0,5 mm amplitude |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | removable terminals, terminal connection 0.2 ... 2.5 mm2 |
| Material: Housing | PA 66-FR |
| Mass | 60 g |

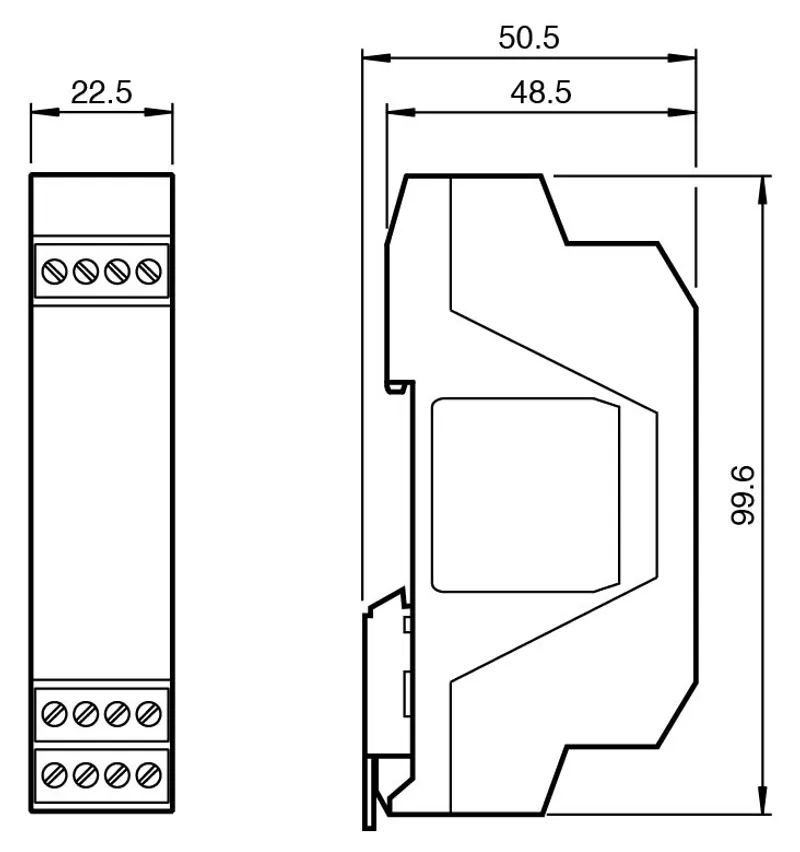

| Dimensions: Height | 99.6 mm |
| Dimensions: Width | 22.5 mm |
| Dimensions: Length | 48.5 mm |
| Mounting | DIN mounting rail |
| Tightening torque of clamping screws | 0.5 Nm ... 0.6 Nm |
