Pepperl Fuchs LB9112A

Cold Junction Module

MPN: LB9112A
Category: FB (Zone 1)

Price and lead time confirmed within 1 business day

Discontinued by Pepperl Fuchs — we can still source the original LB9112A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

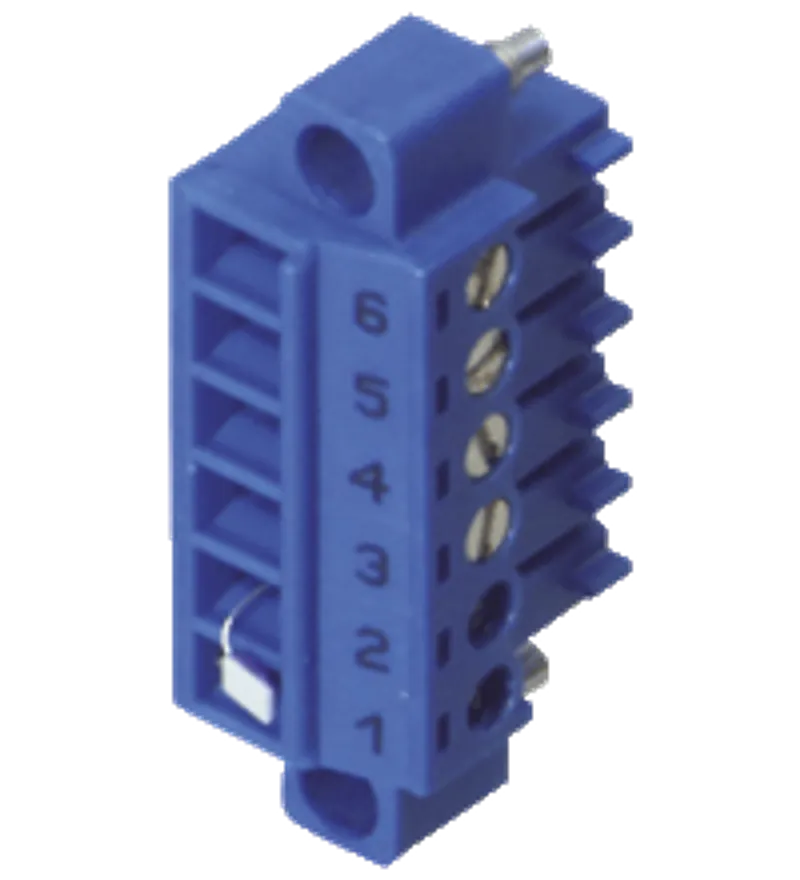

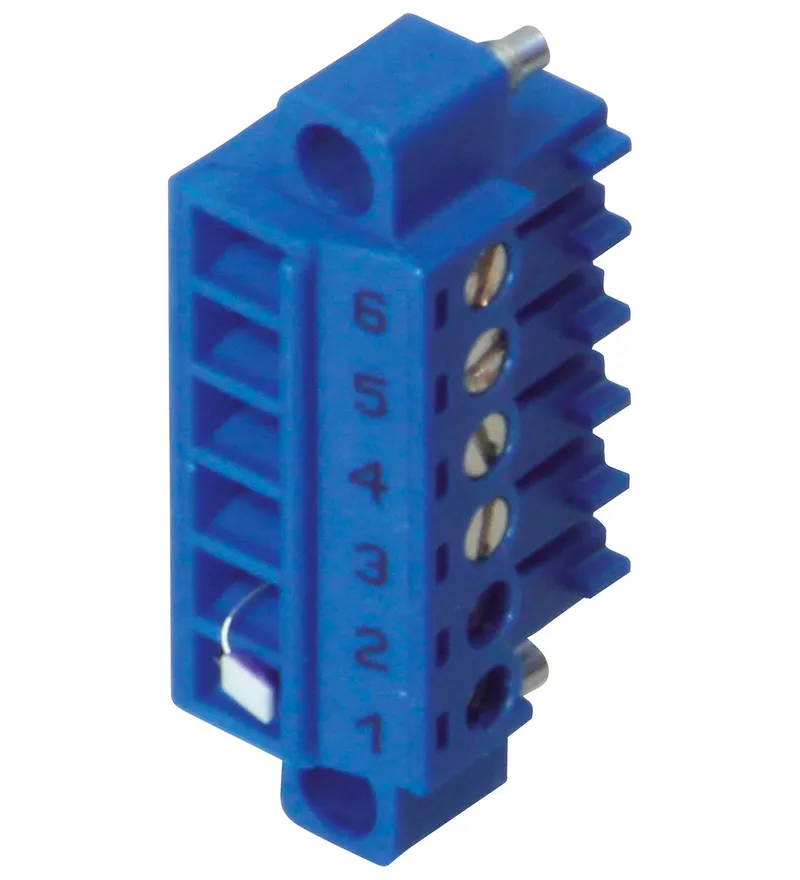

What is the Pepperl Fuchs LB9112A?

Cold Junction Module

For LB and FB modules

6-pole

Labeled 1 ... 6

Color blue

For Ex ia or Ex ib applications

Cold Junction Module, For LB and FB modules, 6-pole, Labeled 1 ... 6, Color blue, For Ex ia or Ex ib applications

Pepperl+Fuchs has archived the LB9112A: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	542051
Number of pins	6
Lifecycle	Discontinued — archived by Pepperl+Fuchs

Electrical specifications

Rated voltage	160 V Ur
Rated current	8 A Ir

Mechanical specifications

Core cross-section	0.14 ... 1.5 mm2
Housing	blue
Connection	Pt100 on pins 1 and 2
Mass	approx. 5 g

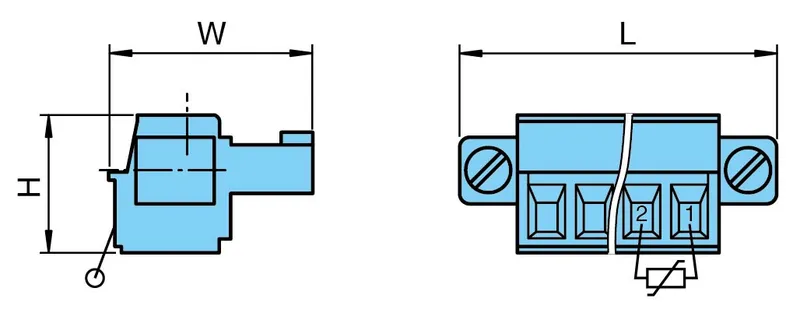

Dimensions: H	11.1 mm
Dimensions: W	16.1 mm
Dimensions: L	40.9 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

EPLAN macro LB9112AEDZ · 22 kB

Certificates (1)

South Africa MASC (MASC MS/20-8436X)PDF · 978 kB

LB9112A: frequently asked questions

Can I still buy the LB9112A now that it is discontinued?

Yes. Pepperl Fuchs has discontinued the LB9112A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can LB9112A be shipped?

LB9112A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LB9112A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LB9112A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9112A, subject to availability and destination.
