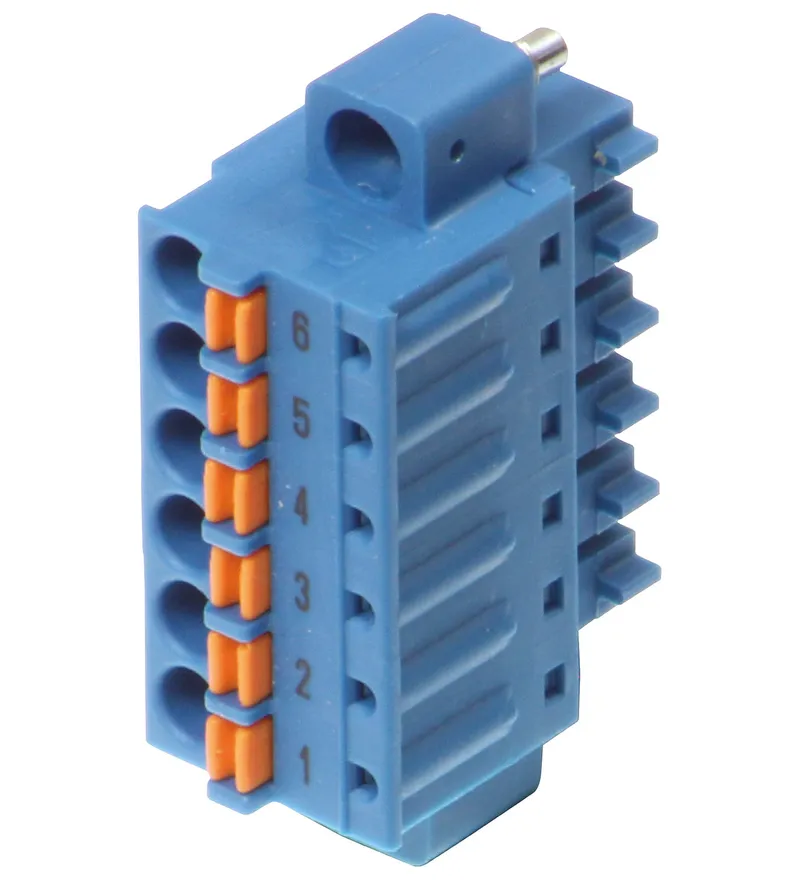

Pepperl Fuchs LB9107P
Terminal Block
- MPN
- LB9107P
- Category
- FB (Zone 1)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs LB9107P?
Spring terminal
For LB and FB modules
6-pole
Labeled 1 ... 6
Color blue
For Ex ia or Ex ib applications
Spring terminal, For LB and FB modules, 6-pole, Labeled 1 ... 6, Color blue, For Ex ia or Ex ib applications, Construction type: spring terminal
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 540230 |
| Number of pins | 6 |
| Labeling | 1 ... 6 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated voltage | 160 V Ur |
| Rated current | 8 A Ir |
Mechanical specifications
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | blue |
| Mass | approx. 5 g |
| Dimensions: H | 12.4 mm |
| Dimensions: W | 20.8 mm |
| Dimensions: L | 33.3 mm |
| Dimensions: Height | 12.4 mm |
| Dimensions: Width | 20.8 mm |
| Dimensions: Length | 33.3 mm |
| Construction type | spring terminal |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
LB9107P: frequently asked questions
When can LB9107P be shipped?
LB9107P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9107P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9107P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9107P, subject to availability and destination.
