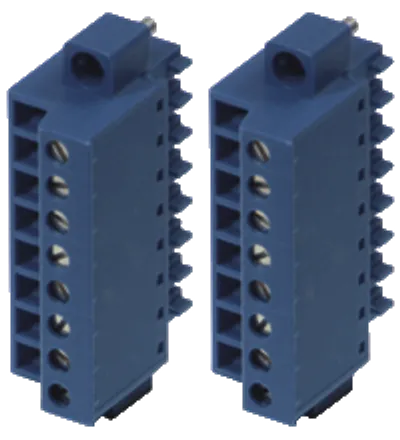

Pepperl Fuchs LB9116A

Terminal Block

MPN: LB9116A
Category: FB (Zone 1)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs LB9116A?

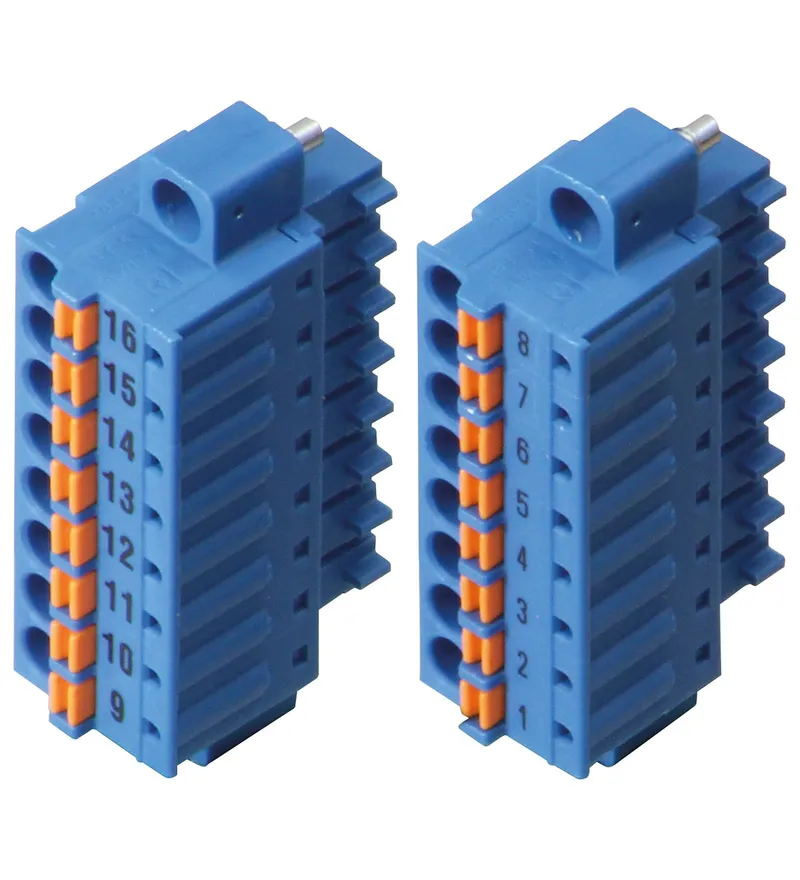

Spring terminal

For LB and FB modules

2 x 8-pole

Labeled 1 ... 8 and 9 ... 16

Color blue

For Ex ia or Ex ib applications

Spring terminal, For LB and FB modules, 2 x 8-pole, Labeled 1 ... 8 and 9 ... 16, Color blue, For Ex ia or Ex ib applications, Construction type: spring terminal

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	542054
Number of pins	2 x 8
Labeling	1 ... 8 & 9 ... 16
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Rated voltage	160 V Ur
Rated current	8 A Ir

Mechanical specifications

Core cross section	0.14 ... 1.5 mm2
Housing	blue
Mass	approx. 5 g

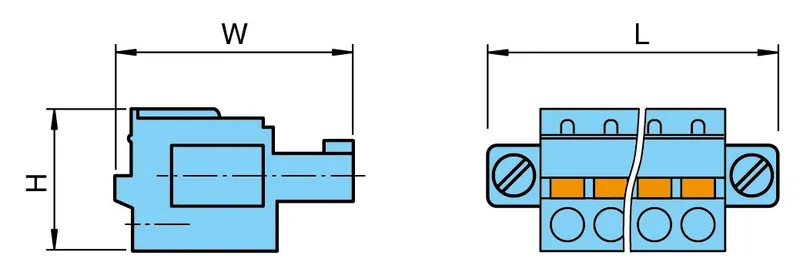

Dimensions: H	12.4 mm
Dimensions: W	20.8 mm
Dimensions: L	40.9 mm
Dimensions: Height	12.4 mm
Dimensions: Width	20.8 mm
Dimensions: Length	40.9 mm
Construction type	spring terminal

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (1)

South Africa MASC (MASC MS/20-8436X)PDF · 978 kB
