Pepperl Fuchs LB9109.E.6.1

Name: Pepperl Fuchs LB9109.E.6.1
Brand: Pepperl Fuchs
SKU: LB9109.E.6.1

MPN: LB9109.E.6.1 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	FB (Zone 1)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LB9109.E.6.1 be shipped?

LB9109.E.6.1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LB9109.E.6.1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LB9109.E.6.1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9109.E.6.1, subject to availability and destination.

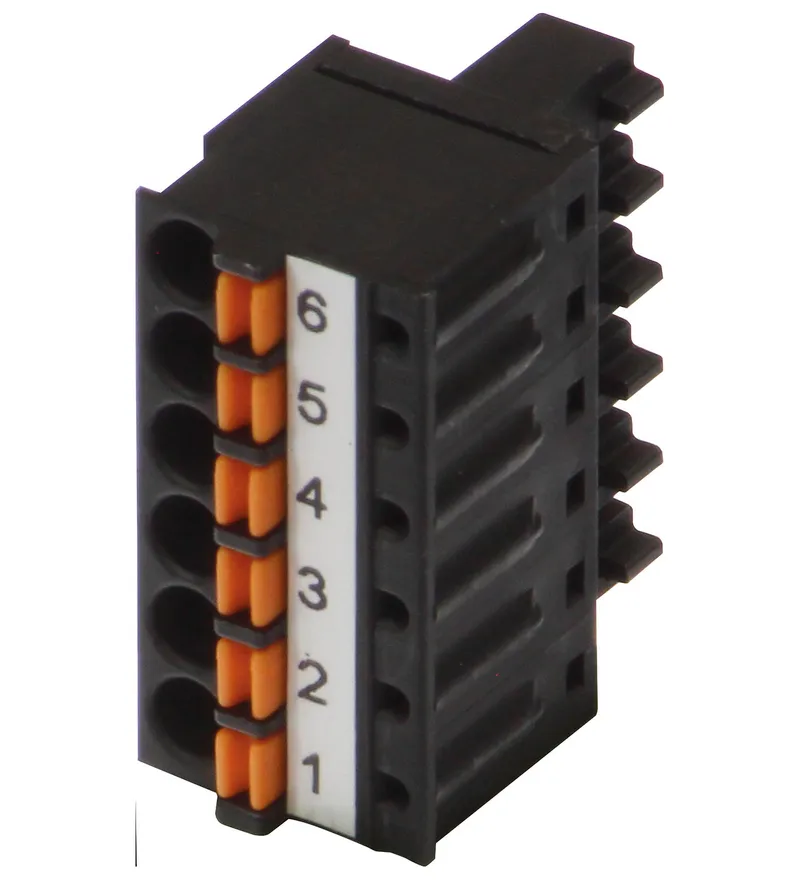

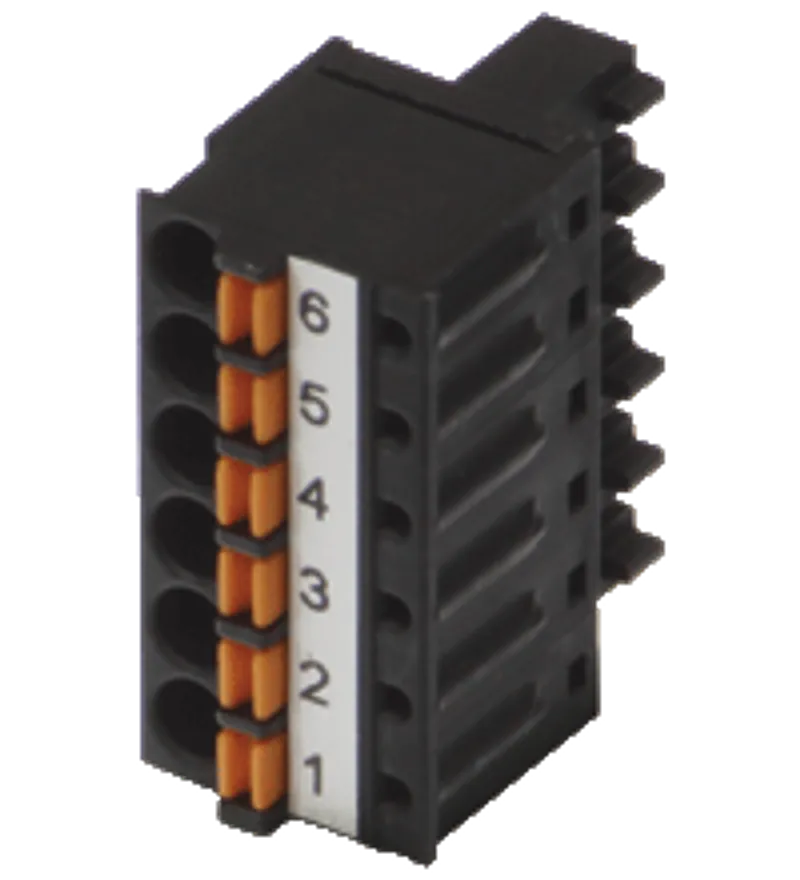

Plug for Ex e Modules. Spring terminal, For FB modules, 6-pole, Color black, For Ex e applications, Construction type: spring terminal. Number of pins: 6. Rated voltage: 160 V. Rated current: 8 A. Core cross-section: 0.14 ... 1.5 mm2. Housing: black. Mass: approx. 5 g. Dimensions: . H12.4 mmW20.8 mmL33.3 mm: . H: 12.4 mm. W: 20.8 mm. L: 33.3 mm. Construction type: spring terminal. Packing unit: 1 item(s)

Specifications

General specifications

Number of pins

Electrical specifications

Rated voltage	160 V Ur
Rated current	8 A Ir

Mechanical specifications

Core cross-section	0.14 ... 1.5 mm2
Housing	black
Mass	approx. 5 g

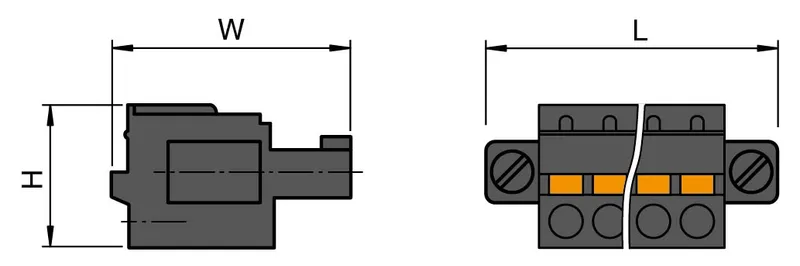

Dimensions
H12.4 mmW20.8 mmL33.3 mm	H
H	12.4 mm
W	20.8 mm
L	33.3 mm
Construction type	spring terminal
