Pepperl Fuchs LB9007A

Terminal Block

MPN: LB9007A
Category: FB (Zone 1)

Price and lead time confirmed within 1 business day

Discontinued by Pepperl Fuchs — we can still source the original LB9007A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

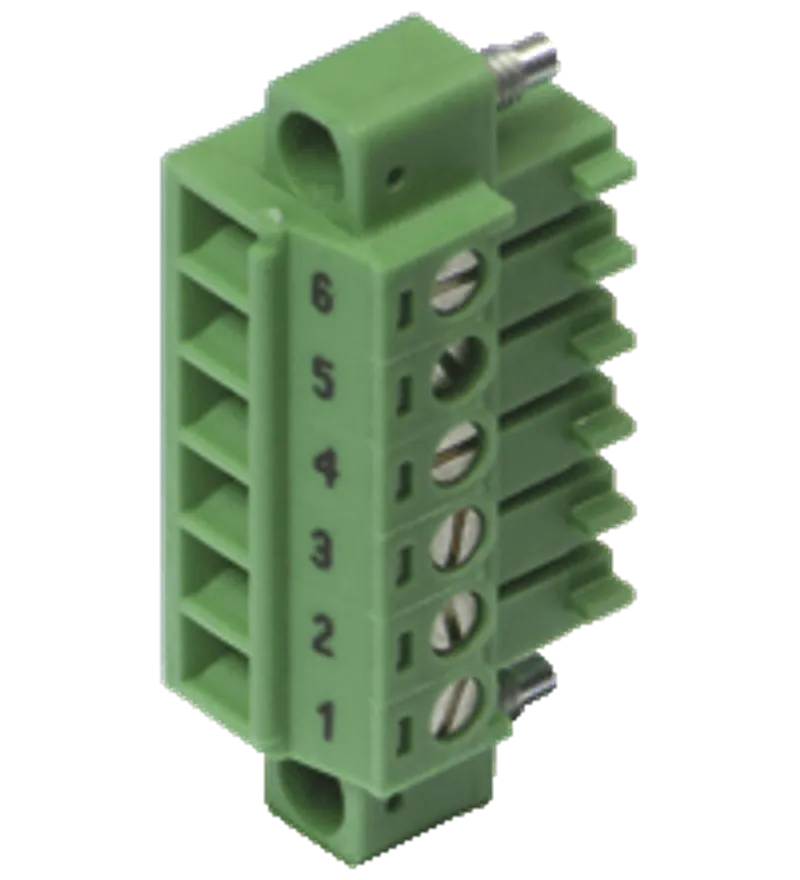

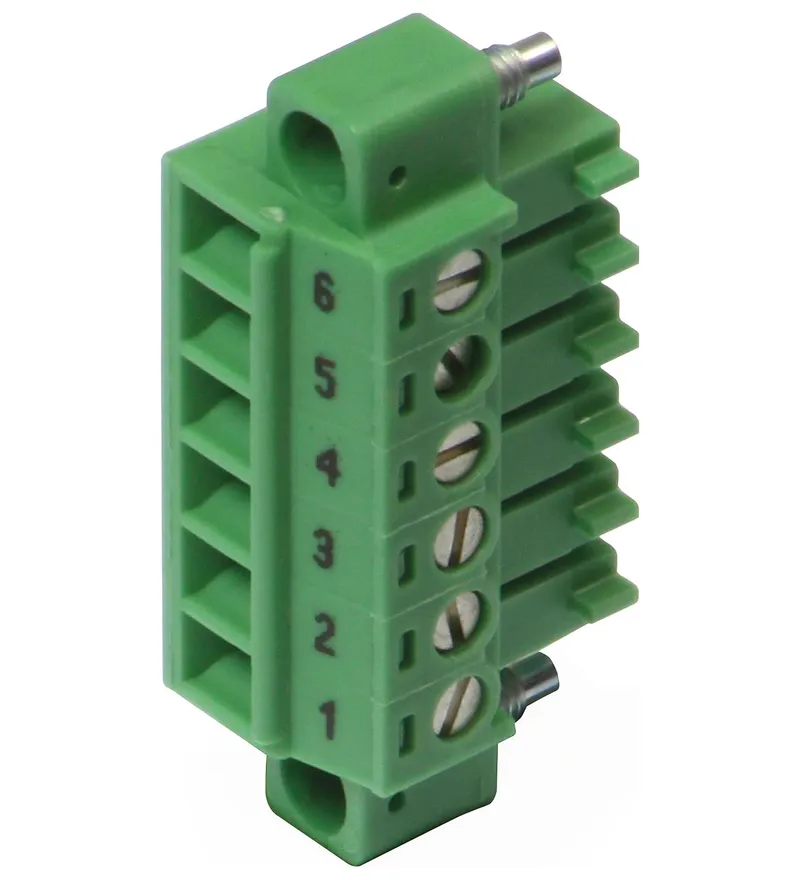

What is the Pepperl Fuchs LB9007A?

Screw terminal

For LB modules

6-pole

Labeled 1 ... 6

Color green

For non-intrinsically safe or Ex ic applications

Screw terminal, For LB modules, 6-pole, Labeled 1 ... 6, Color green, For non-intrinsically safe or Ex ic applications, Construction type: screw terminal

Pepperl+Fuchs has archived the LB9007A: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	542010
Number of pins	6
Labeling	1 ... 6
Lifecycle	Discontinued — archived by Pepperl+Fuchs

Electrical specifications

Rated voltage	160 V Ur
Rated current	8 A Ir

Mechanical specifications

Core cross section	0.14 ... 1.5 mm2
Housing	green
Mass	approx. 5 g

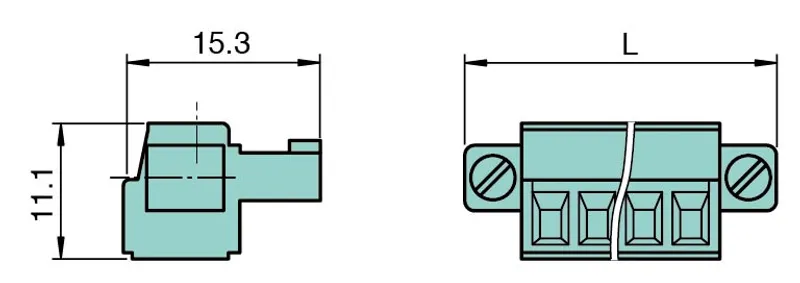

Dimensions	(W x H x D) 33.3 mm x 11.1 mm x 15.3 mm
Height	11.1 mm
Width	33.3 mm
Depth	15.3 mm
Construction type	screw terminal

International approvals

EAC approval	Russia: RU C-IT.MIII06.B.00129
Marine approval: Lloyd Register	15/20021
Marine approval: DNV GL Marine	TAA0000034
Marine approval: American Bureau of Shipping	T1450280/UN
Marine approval: Bureau Veritas Marine	22449/B0 BV

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (2)
