Pepperl Fuchs LB9002A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | FB (Zone 1) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB9002A be shipped?
LB9002A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9002A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9002A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9002A, subject to availability and destination.

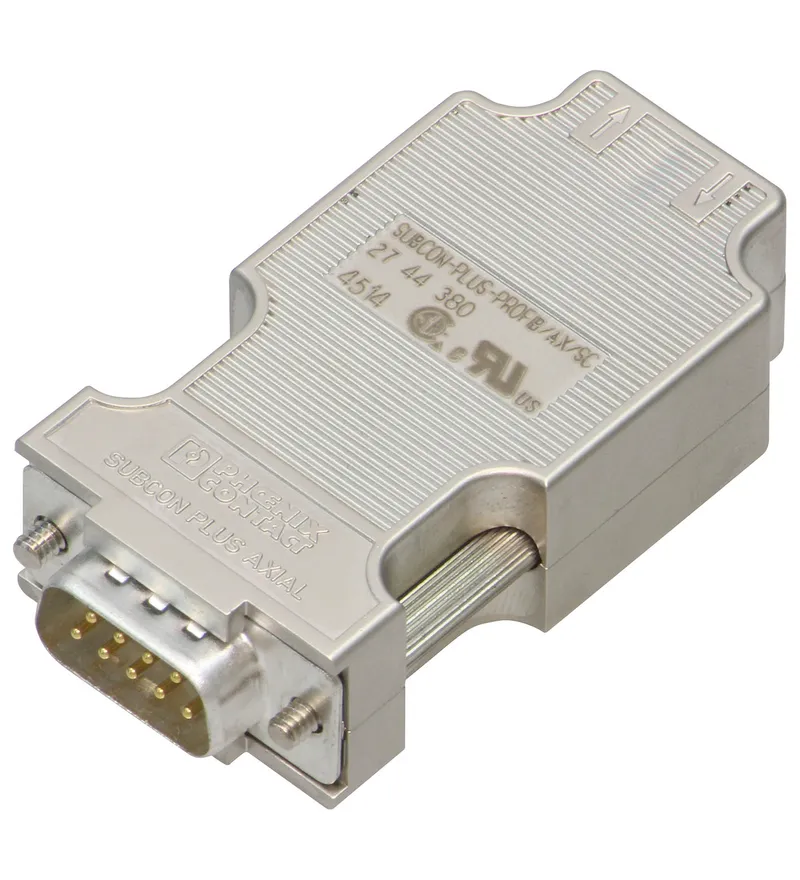

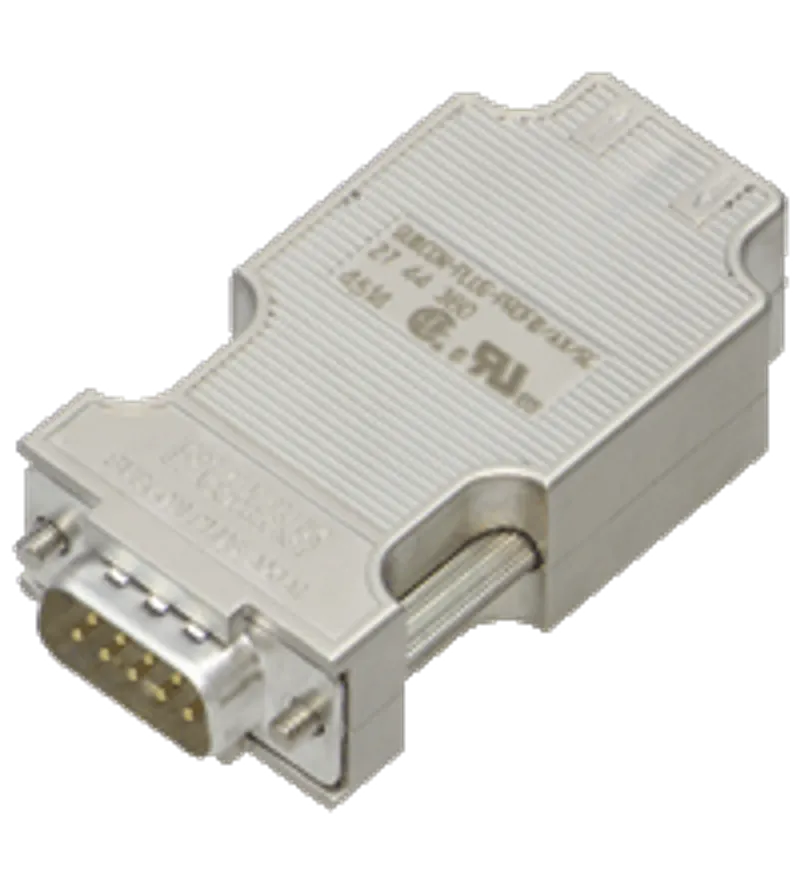

D-Sub plug 9-pin. For PROFIBUS DP, MODBUS, RS 485, Axial cable feed, With switchable bus termination resistor. Rated voltage: 60 V AC/DC. Rated current: 1 A. Interface type: PROFIBUS DP. Transfer rate: max. 12 MBit/s. Connector pinout: 3, 5, 6, 8. Ambient temperature: -20 ... 75 °C (-4 ... 167 °F). Storage temperature: -25 ... 80 °C (-13 ... 176 °F). Core cross section: max. 1.5 mm2. Cable diameter: 7.6 ... 8.4 mm. Cable gland: screw terminals. Material: . Housingmetallized ABS: . Housing: metallized ABS. Mass: approx. 40 g. Dimensions: . Height58.2 mmWidth31.5 mmDepth17 mm: . Height: 58.2 mm. Width: 31.5 mm. Depth: 17 mm. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021American Bureau of ShippingT1450280/UN: . Lloyd Register: 15/20021. American Bureau of Shipping: T1450280/UN
Specifications
Electrical specifications
| Rated voltage | 60 V AC/DC Ur |
| Rated current | 1 A Ir |
Interface
| Interface type | PROFIBUS DP |
| Transfer rate | max. 12 MBit/s |
| Connector pinout | 3, 5, 6, 8 |
Ambient conditions
| Ambient temperature | -20 ... 75 °C (-4 ... 167 °F) |
| Storage temperature | -25 ... 80 °C (-13 ... 176 °F) |
Mechanical specifications
| Core cross section | max. 1.5 mm2 |
| Cable diameter | 7.6 ... 8.4 mm |
| Cable gland | screw terminals |
| Material | |
| Housingmetallized ABS | Housing |
| Housing | metallized ABS |
| Mass | approx. 40 g |

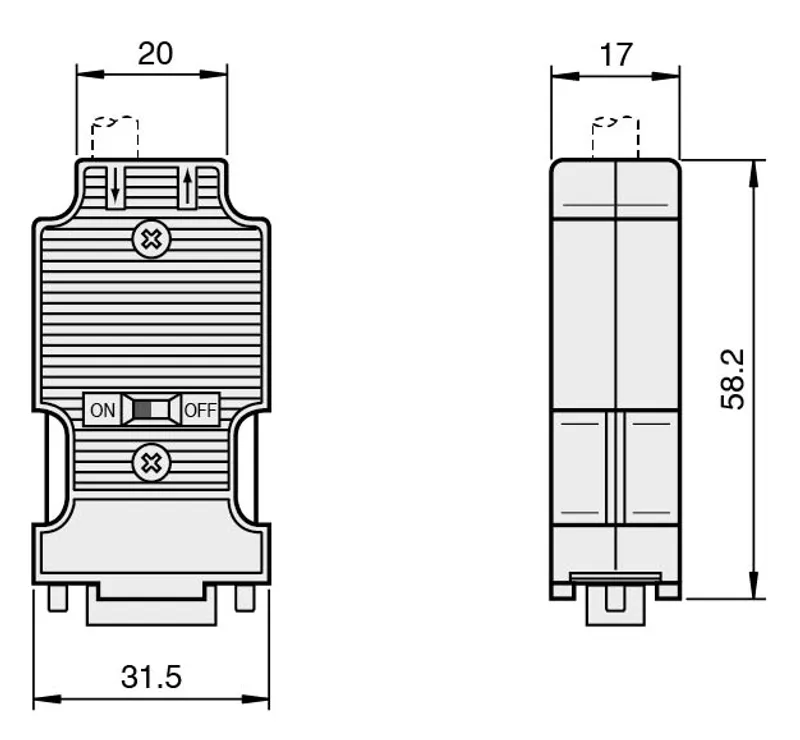

| Dimensions | |
| Height58.2 mmWidth31.5 mmDepth17 mm | Height |
| Height | 58.2 mm |
| Width | 31.5 mm |
| Depth | 17 mm |
International approvals
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | |
| Lloyd Register15/20021American Bureau of ShippingT1450280/UN | Lloyd Register |
| Lloyd Register | 15/20021 |
| American Bureau of Shipping | T1450280/UN |
