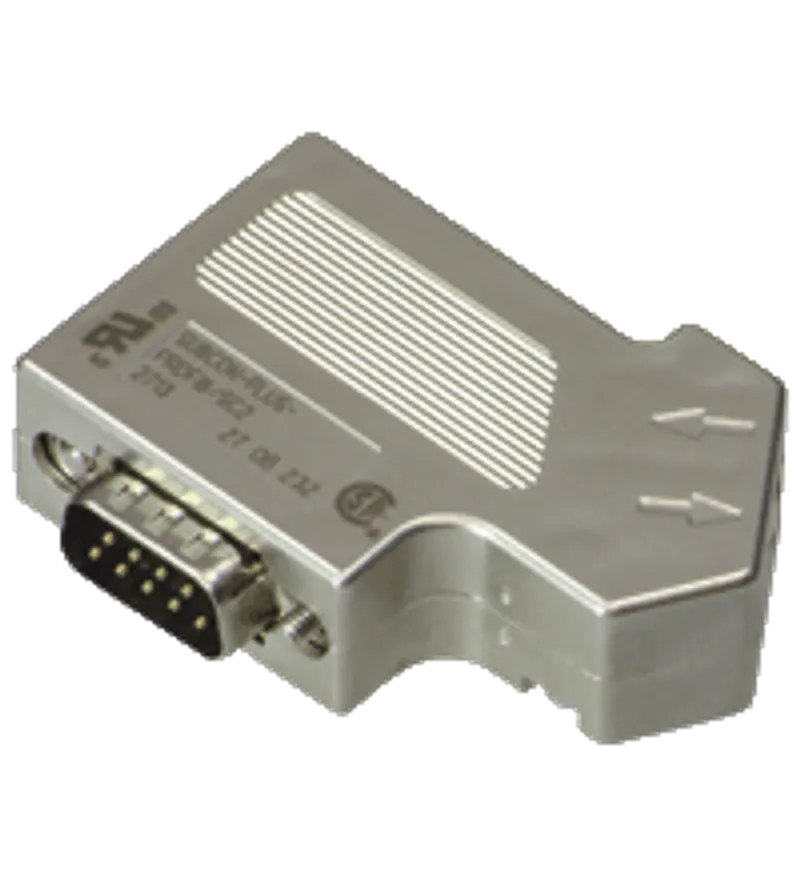

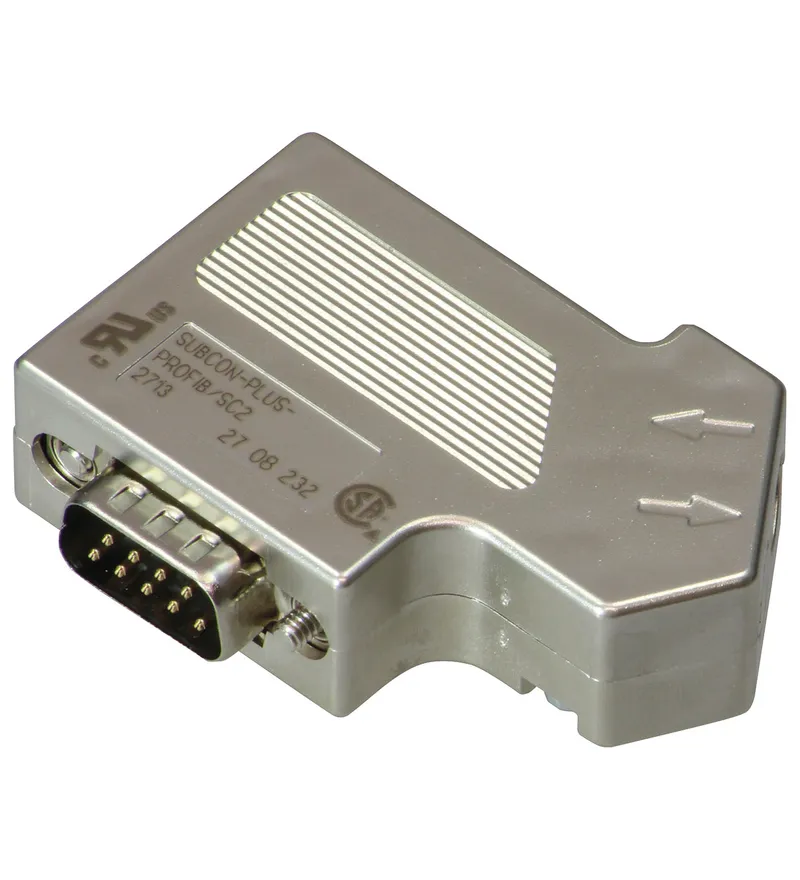

Pepperl Fuchs LB9001A
D-Sub plug 9-pin
- MPN
- LB9001A
- Category
- FB (Zone 1)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs LB9001A?
For PROFIBUS DP, MODBUS, RS 485
Cable feed below 35°
With switchable bus termination resistor
With connector for bus monitor or class 2 master
For PROFIBUS DP, MODBUS, RS 485, Cable feed below 35°, With switchable bus termination resistor, With connector for bus monitor or class 2 master
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 542005 |
| Rated voltage | 60 V AC/DC Ur |
| Rated current | 1 A Ir |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Interface
| Interface type | PROFIBUS DP |
| Transfer rate | max. 12 MBit/s |
| Connector pinout | 3, 5, 6, 8 |
Ambient conditions
| Ambient temperature | -20 ... 75 °C (-4 ... 167 °F) |
| Storage temperature | -25 ... 80 °C (-13 ... 176 °F) |
Mechanical specifications
| Core cross section | max. 1.5 mm2 |
| Cable diameter | 7.6 ... 8.4 mm |
| Cable gland | screw terminals |
| Material: Housing | metallized ABS |
| Mass | approx. 40 g |

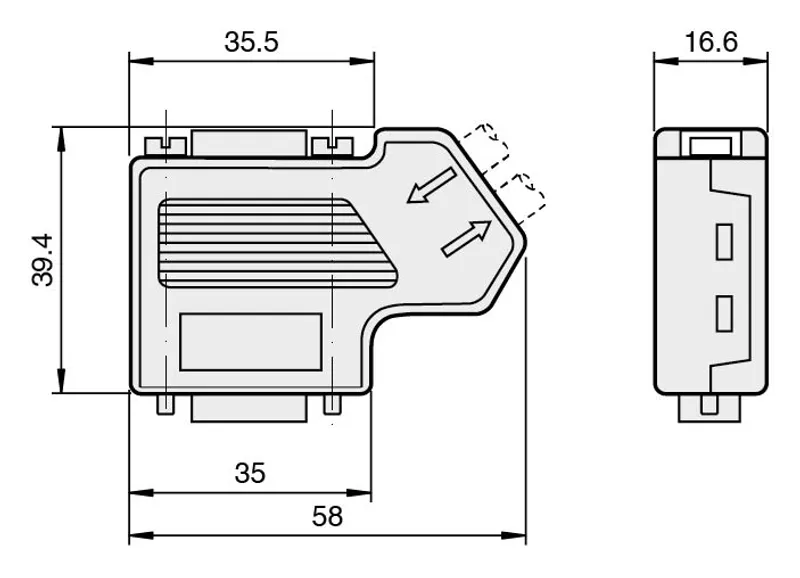

| Dimensions | (W x H x D) 58 mm x 39.4 mm x 16.6 mm |
International approvals
| Marine approval: Lloyd Register | 15/20021 |
| Marine approval: DNV GL Marine | TAA0000034 |
| Marine approval: American Bureau of Shipping | T1450280/UN |
| Marine approval: Bureau Veritas Marine | 22449/B0 BV |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (2)
LB9001A: frequently asked questions
When can LB9001A be shipped?
LB9001A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9001A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9001A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9001A, subject to availability and destination.
