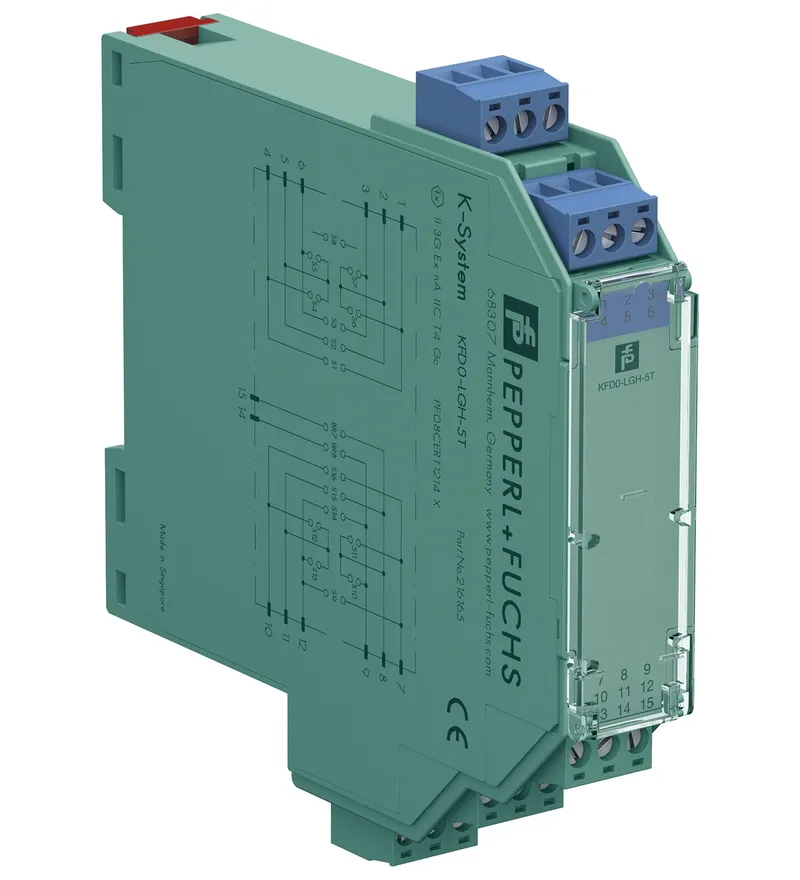

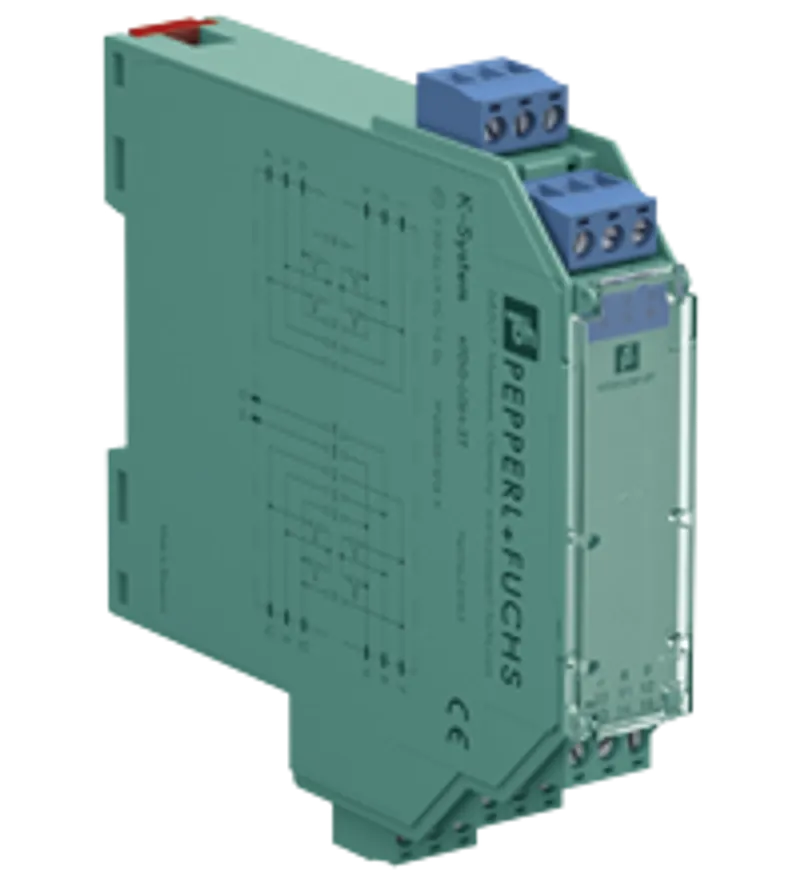

Pepperl Fuchs KFD0-LGH-5T

Place Holder Barrier

MPN: KFD0-LGH-5T
Category: K-System (DIN Rail Mounting, Highly Functional)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs KFD0-LGH-5T?

K-System place holder module

Housing width 20 mm

Marshalling for field and control side circuits

Configurable via plug-in jumpers

Two additional green terminal blocks supplied separately

K-System place holder module, Housing width 20 mm, Marshalling for field and control side circuits, Configurable via plug-in jumpers, Two additional green terminal blocks supplied separately

Specifications

Electrical specifications

Order code (Pepperl+Fuchs part number)	216165
Rated voltage	≤ 50 V Ur
Rated current	≤ 2 A Ir
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/settings

Configuration	via internal wire jumpers
Labeling	space for labeling at the front

Conformity

Degree of protection

IEC 60529

Ambient conditions

Ambient temperature

-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protection	IP20
Connection	screw terminals
Mass	approx. 120 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height	119 mm
Width	20 mm
Depth	115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

Certificate	PF 08 CERT 1214 X
Marking	II 3G Ex nA IIC T4 Gc
Directive conformity: Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010

General information

Supplementary information

Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
