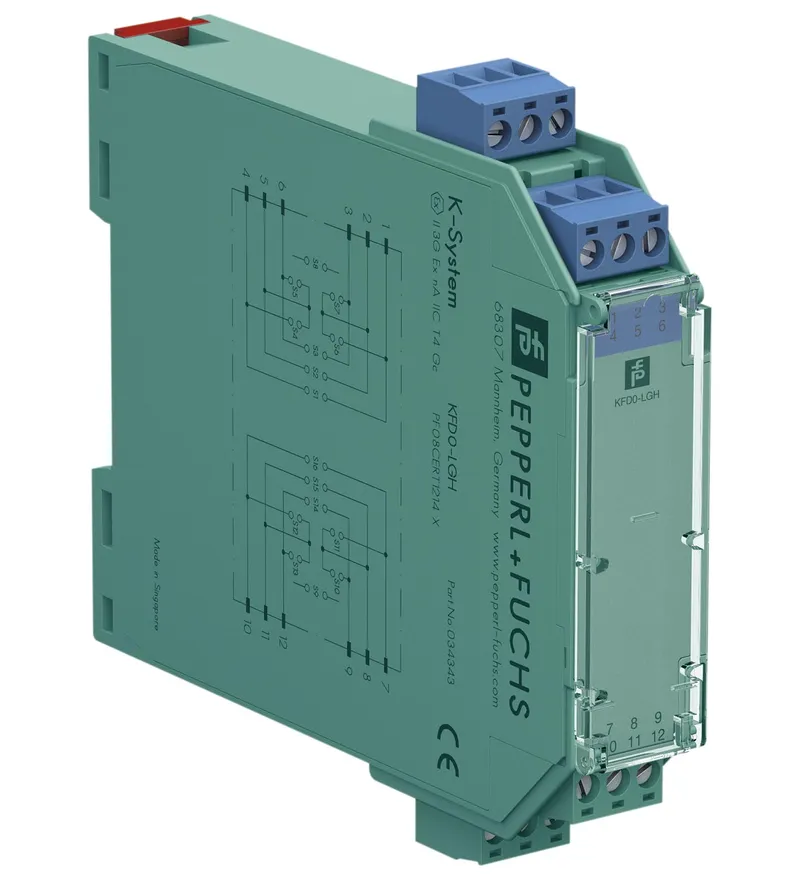

Pepperl Fuchs KFD0-LGH
Place Holder Barrier
- MPN
- KFD0-LGH
Price and lead time confirmed within 1 business day
Discontinued by Pepperl Fuchs — we can still source the original KFD0-LGH (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs KFD0-LGH?
K-System place holder module
Housing width 20 mm
Marshalling for field and control side circuits
Configurable via plug-in jumpers
K-System place holder module, Housing width 20 mm, Marshalling for field and control side circuits, Configurable via plug-in jumpers
Pepperl+Fuchs has archived the KFD0-LGH: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 034343 |
| Rated voltage | ≤ 50 V Ur |
| Rated current | ≤ 2 A Ir |
| Lifecycle | Discontinued — archived by Pepperl+Fuchs |
Indicators/settings
| Configuration | via internal wire jumpers |
| Labeling | space for labeling at the front |
Conformity
| Degree of protection | IEC 60529 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 120 g |
| Dimensions | 20 x 93 x 115 mm (0.8 x 3.7 x 4.5 inch) (W x H x D) , housing type B1 |
| Height | 93 mm |
| Width | 20 mm |
| Depth | 115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
Data for application in connection with hazardous areas
| Certificate | PF 08 CERT 1214 X |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-15:2010 |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
KFD0-LGH: frequently asked questions
Can I still buy the KFD0-LGH now that it is discontinued?
Yes. Pepperl Fuchs has discontinued the KFD0-LGH, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can KFD0-LGH be shipped?
KFD0-LGH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KFD0-LGH in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KFD0-LGH and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KFD0-LGH, subject to availability and destination.
