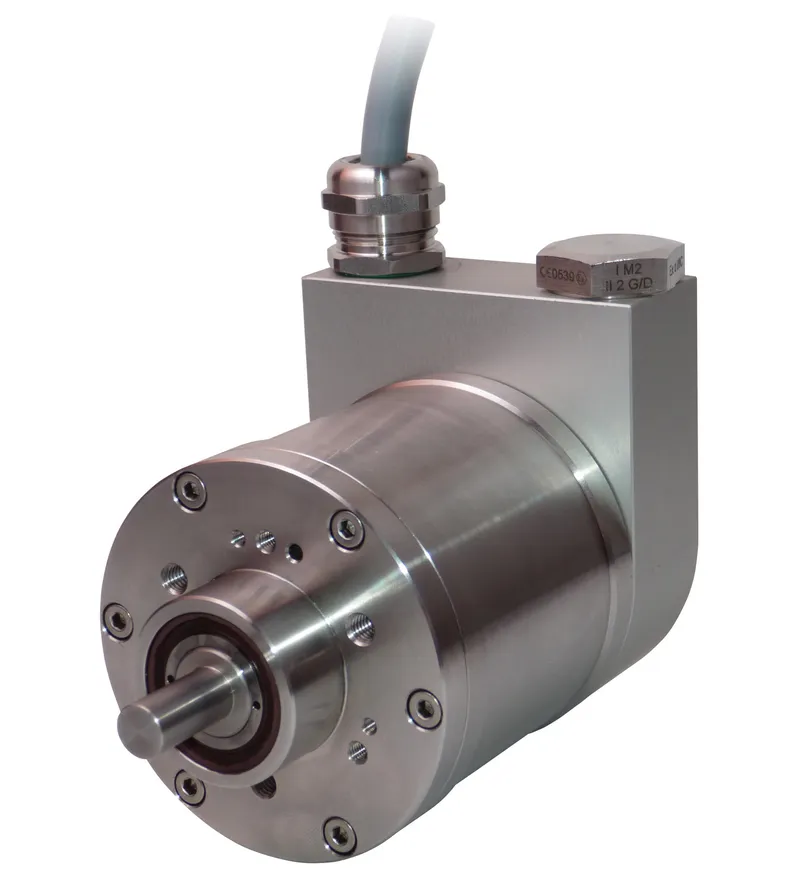

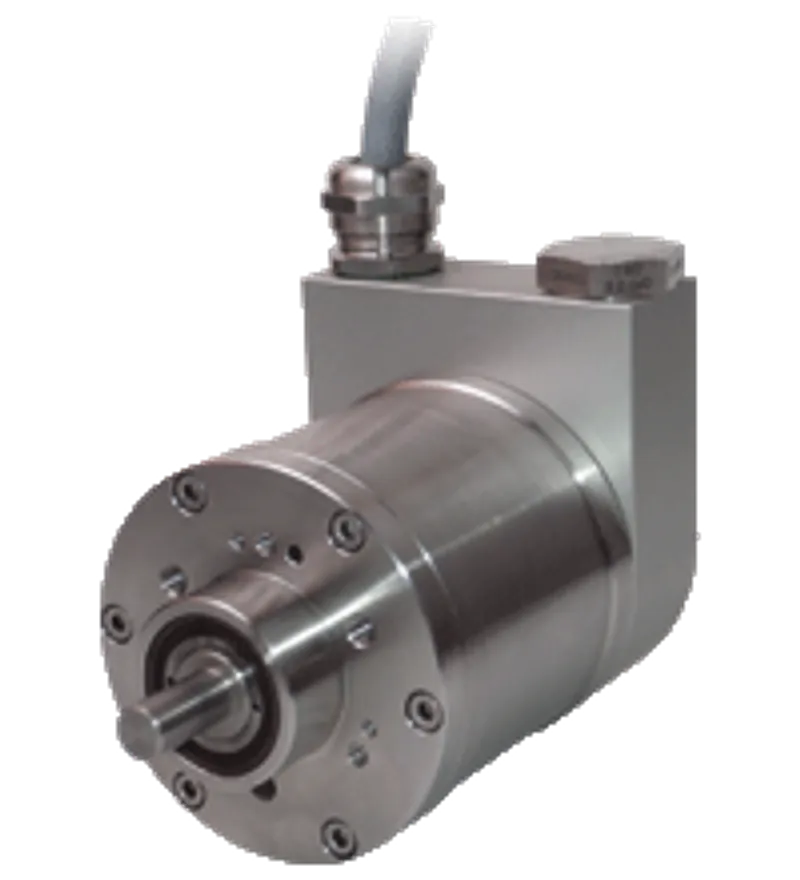

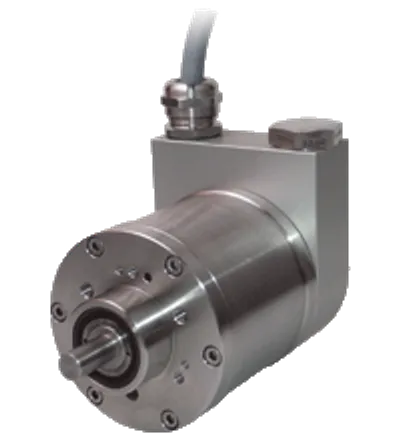

What is the Pepperl Fuchs CVM78E Mining?

Up to 30 Bit multiturn

ATEX-approval for mining

IECEx approval

Flameproof enclosure

Removable connection cap

Up to 30 Bit multiturn, ATEX-approval for mining, IECEx approval, Flameproof enclosure, Removable connection cap, Enclosure type: 78 mm, Type of shaft: Solid shaft, Interface: CANopen, Application: Ex protection, Detection type: photoelectric sampling, Interface type: CANopen

Specifications

General specifications

Order code (Pepperl+Fuchs part number)T162848
Detection typephotoelectric sampling
Device typeMultiturn absolute rotary encoder
LifecycleActive (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd25 a
L107.7 E+9 at 3000 rpm

Electrical specifications

Operating voltage10 ... 30 V DC UB
No-load supply currentmax. 350 mA I0
Time delay before availability< 250 ms tv
Linearity± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
Output codebinary code
Code course (counting direction)cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending)

Interface

Interface typeCANopen
Resolution: Single turnup to 16 Bit
Resolution: Multiturn14 Bit
Resolution: Overall resolutionup to 30 Bit
Transfer ratemax. 1 MBit/s
Standard conformitycommunication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2

Connection

Terminal compartmentwith 2 threads for cable glands: each M20 x 1.5 6H, 17 mm thread depth

Standard conformity

Degree of protectionDIN EN 60529, IP66
Climatic testingDIN EN 60068-2-78 , no moisture condensation
Emitted interferenceEN 61000-6-4:2007/A1:2011
Noise immunityEN 61000-6-2:2005
Shock resistanceDIN EN 60068-2-27, 100 g, 3 ms
Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 2000 Hz

Approvals and certificates

IECEx approval: Equipment protection level MbIECEx ITS 15.0060X
ATEX approval: Equipment protection level MbITS 15 ATEX 18371X
ANZEx20.3002X

Ambient conditions

Operating temperature-40 ... 70 °C (-40 ... 158 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)

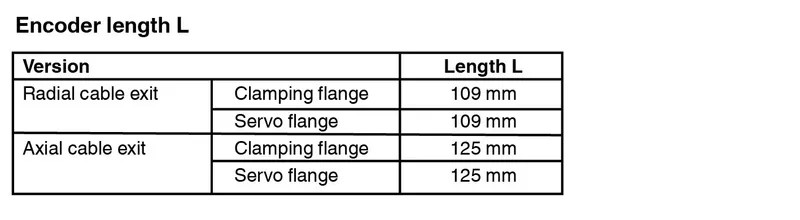

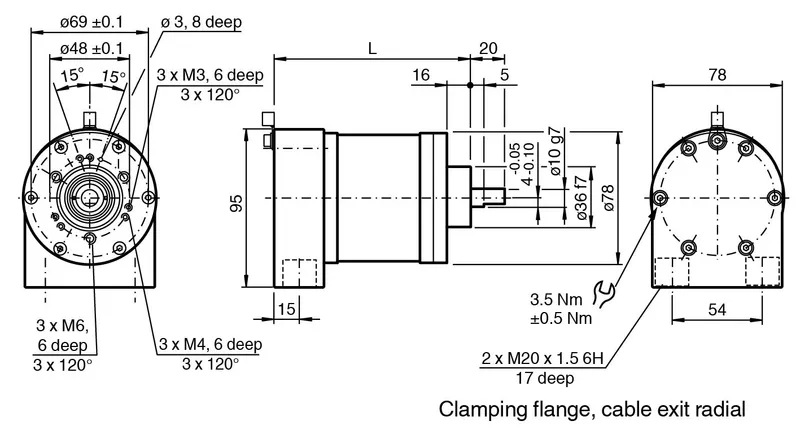

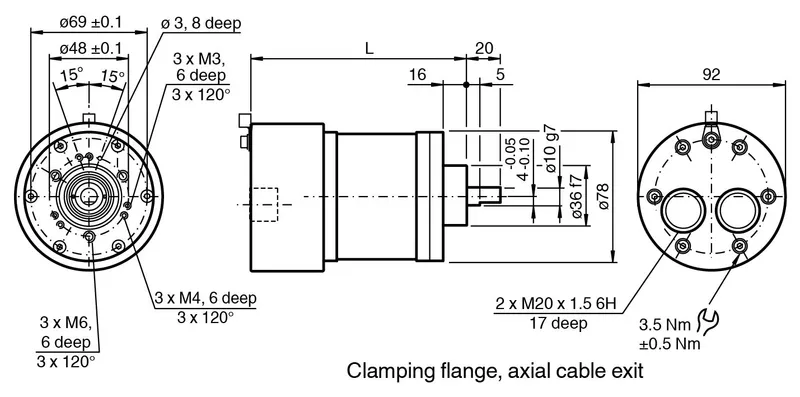

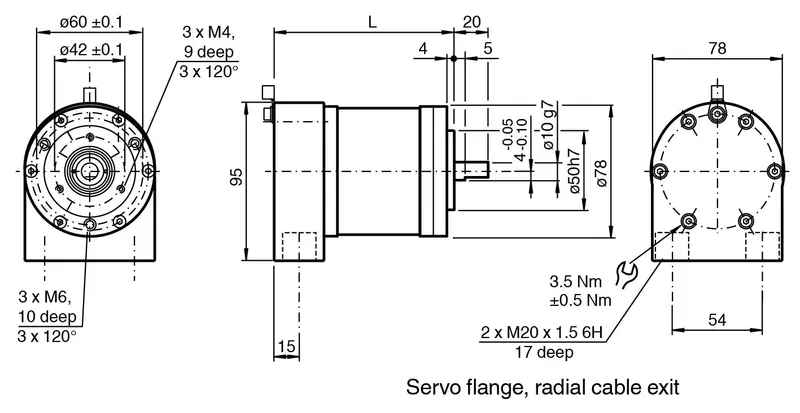

Mechanical specifications

Material: HousingStainless steel 1.4404 / AISI 316L
Material: FlangeStainless steel 1.4404 / AISI 316L
Material: ShaftStainless steel 1.4404 / AISI 316L
Massapprox. 3900 g
Rotational speedmax. 3000 min -1
Moment of inertia180 gcm2
Starting torque≤ 4 Ncm
Shaft load: Axial60 N
Shaft load: Radial80 N

General information

Use in the hazardous areasee instruction manuals

CVM78E Mining: frequently asked questions

When can CVM78E Mining be shipped?

CVM78E Mining is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CVM78E Mining in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CVM78E Mining and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CVM78E Mining, subject to availability and destination.
