Pepperl Fuchs CSS58
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Absolute Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CSS58 be shipped?
CSS58 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CSS58 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CSS58 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CSS58, subject to availability and destination.

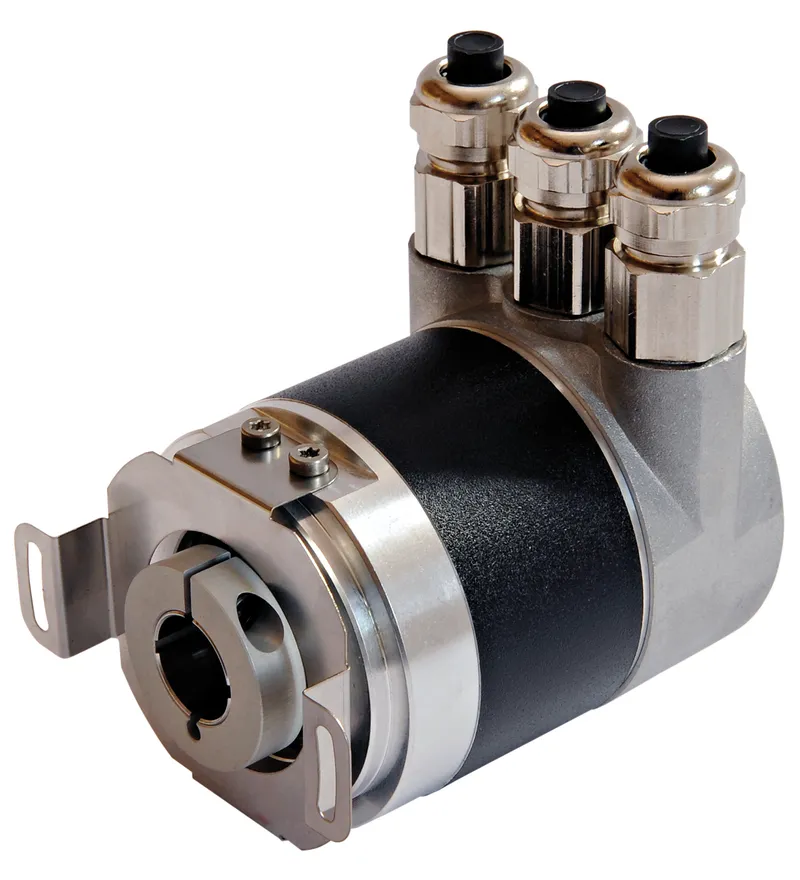

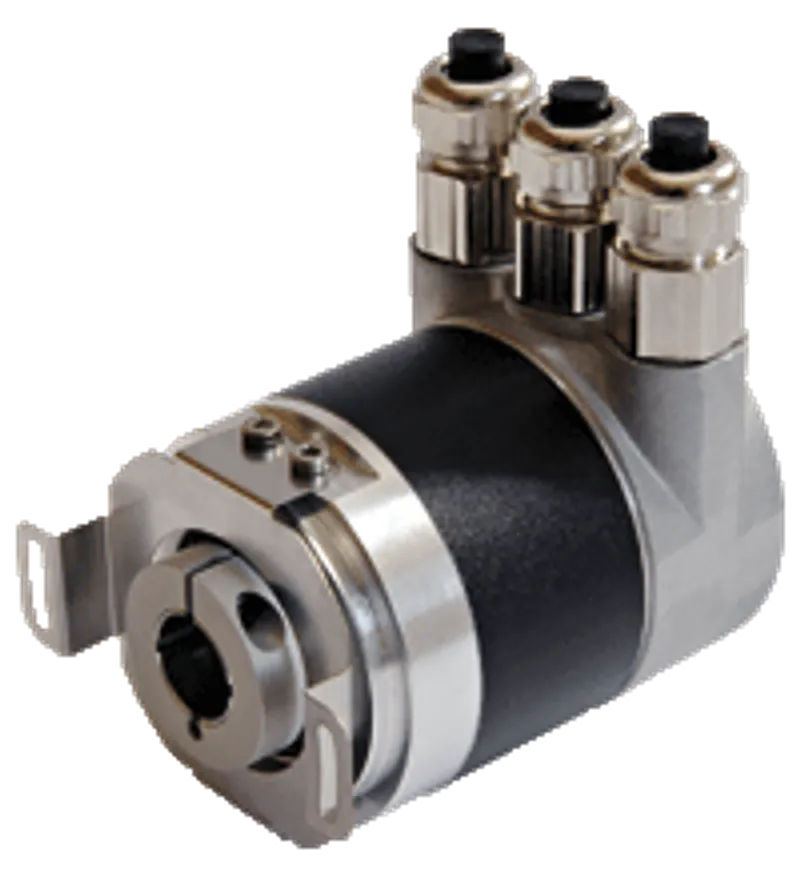

Singleturn absolute rotary encoder. Industrial standard housing ∅58 mm, Recessed hollow shaft, 16 Bit singleturn, Galvanically isolated CAN interface, 2 limit switches, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface: CANopen, Detection type: photoelectric sampling, Interface type: CANopen. Detection type: photoelectric sampling. Device type: Singleturn absolute rotary encoder. Operating voltage: 10 ... 30 V DC. No-load supply current: max. 230 mA at 10 V DC max. 100 mA at 24 V DC. Time delay before availability: < 250 ms. Linearity: ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit. Output code: binary code. Code course (counting direction): cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending). Interface type: CANopen. Resolution: . Single turnup to 16 BitOverall resolutionup to 16 Bit: . Single turn: up to 16 Bit. Overall resolution: up to 16 Bit. Transfer rate: max. 1 MBit/s. Standard conformity: communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2. Terminal compartment: in removable housing cover. Degree of protection: DIN EN 60529, IP65 IP66 (with shaft seal). Climatic testing: DIN EN 60068-2-30 , no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source. Operating temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Material: . Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 2 (Inox)housing: stainless steelflange: stainless steelshaft: stainless steel: . Combination 1: housing: powder coated aluminumflange: aluminumshaft: stainless steel. Combination 2 (Inox): housing: stainless steelflange: stainless steelshaft: stainless steel. Mass: approx. 550 g (combination 1) approx. 1100 g (combination 2). Rotational speed: max. 12000 min -1. Moment of inertia: 30 gcm2. Starting torque: ≤ 3 Ncm (version without shaft seal). Tightening torque, fastening screws: max. 1.8 Nm. Shaft load: . Angle offset± 0.9 °Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mmRadial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm: . Angle offset: ± 0.9 °. Axial offset: static: ± 0.3 mm, dynamic: ± 0.1 mm. Radial offset: static: ± 0.5 mm, dynamic: ± 0.2 mm. Dimensions: . Length87 mmDiameter59 mm: . Length: 87 mm. Diameter: 59 mm
Specifications
General specifications
| Detection type | photoelectric sampling |
| Device type | Singleturn absolute rotary encoder |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | max. 230 mA at 10 V DC max. 100 mA at 24 V DC I0 |
| Time delay before availability | < 250 ms tv |
| Linearity | ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit |
| Output code | binary code |
| Code course (counting direction) | cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | CANopen |
| Resolution | |
| Single turnup to 16 BitOverall resolutionup to 16 Bit | Single turn |
| Single turn | up to 16 Bit |
| Overall resolution | up to 16 Bit |
| Transfer rate | max. 1 MBit/s |
| Standard conformity | communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2 |
Connection
| Terminal compartment | in removable housing cover |
Standard conformity
| Degree of protection | DIN EN 60529, IP65 IP66 (with shaft seal) |
| Climatic testing | DIN EN 60068-2-30 , no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Material | |
| Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 2 (Inox)housing: stainless steelflange: stainless steelshaft: stainless steel | Combination 1 |
| Combination 1 | housing: powder coated aluminumflange: aluminumshaft: stainless steel |
| Combination 2 (Inox) | housing: stainless steelflange: stainless steelshaft: stainless steel |
| Mass | approx. 550 g (combination 1) approx. 1100 g (combination 2) |
| Rotational speed | max. 12000 min -1 |
| Moment of inertia | 30 gcm2 |
| Starting torque | ≤ 3 Ncm (version without shaft seal) |
| Tightening torque, fastening screws | max. 1.8 Nm |
| Shaft load | |
| Angle offset± 0.9 °Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mmRadial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm | Angle offset |
| Angle offset | ± 0.9 ° |
| Axial offset | static: ± 0.3 mm, dynamic: ± 0.1 mm |
| Radial offset | static: ± 0.5 mm, dynamic: ± 0.2 mm |

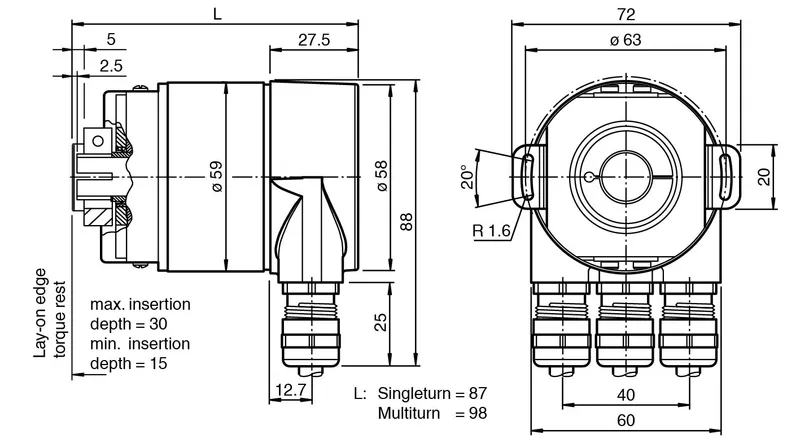

| Dimensions | |
| Length87 mmDiameter59 mm | Length |
| Length | 87 mm |
| Diameter | 59 mm |
