Absolute Rotary Encoders Parts
Compare Absolute Rotary Encoders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Resolution: Single turn | Transfer rate | Vibration resistance | Shaft load: Axial |
|---|---|---|---|---|---|
| IGEL-OS12-APP-WEDGE | T231506 | — | — | — | — |
| CVS78E Mining | T162849 | up to 16 Bit | max. 1 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | 60 N |
| CVM78E Mining | T162848 | up to 16 Bit | max. 1 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | 60 N |
| ESM78E-E | T187109 | up to 16 Bit | 10 ... 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | 60 N |
| EVM58N-011IZR0BY-1213 | 233235 | 13 Bit | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | 40 N |

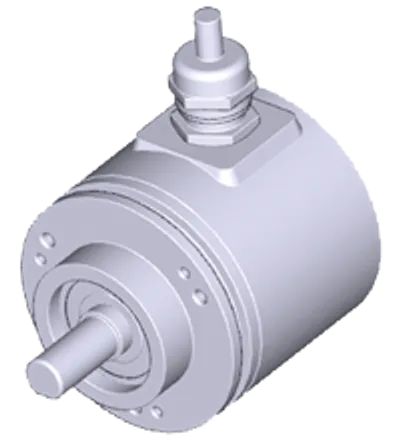

| ENA58IL-S10CA5-0012SY1-RC5:01 | 70177706 | 12 Bit | 0.1 ... 2 MBit/s | DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz | 40 N |

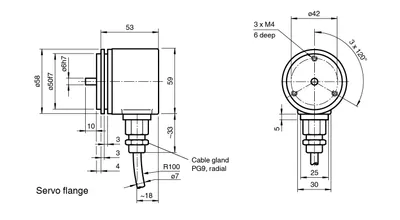

| AVM58W-032K1R0G5-1212 | 70168580 | up to 12 Bit | 0.1 ... 2 MBit/s | DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz | 40 N |

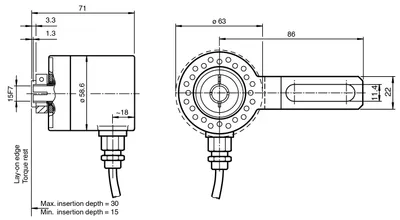

| ENA58IL-R15YY5-1212SI2-RAY:01 | 70170701 | 12 Bit | 0.1 ... 2 MBit/s | DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz | 24 N |

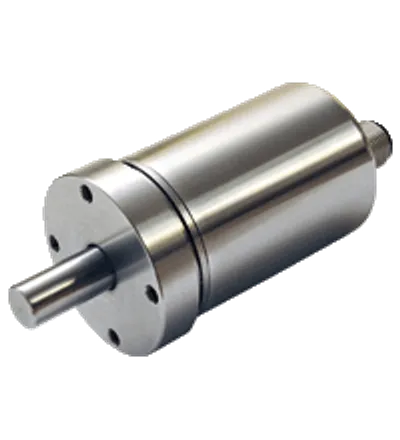

| ENA42HT-S***-IO-Link | T218606 | up to 16 Bit programmable | COM3 (230.4 kbits/s) | DIN EN 60068-2-6, 30 g, 10 ... 1000 Hz | 270 N |

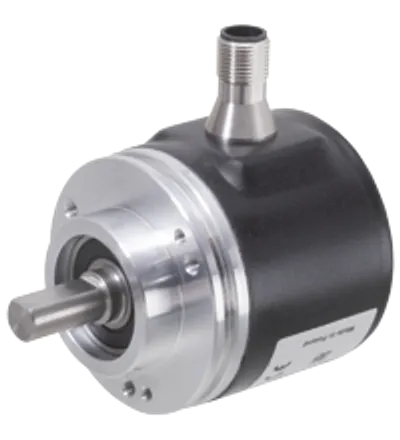

| ENA58IL-S***-IO-Link | T214148 | up to 16 Bit programmable | COM3 (230.4 kbits/s) | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 40 N |

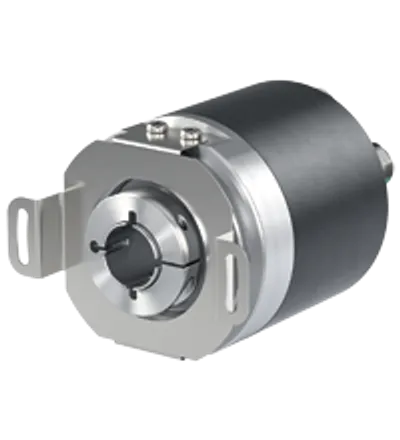

| ENA58IL-R***-IO-Link | T214147 | up to 16 Bit programmable | COM3 (230.4 kbits/s) | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 24 N |

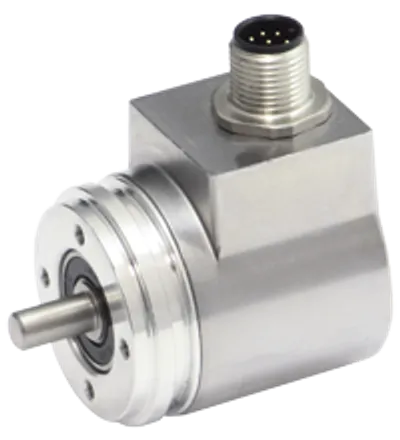

| ENA36IL-S***-IO-Link | T214146 | up to 16 Bit programmable | COM3 (230.4 kbits/s) | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 40 N |

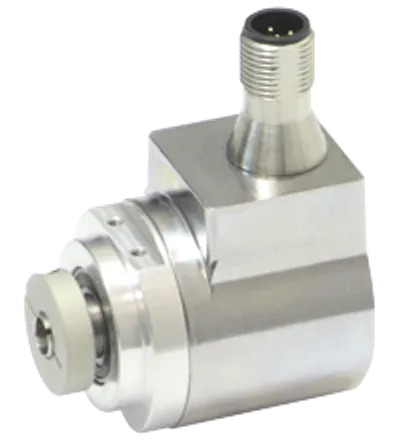

| ENA36IL-R***-IO-Link | T214145 | up to 16 Bit programmable | COM3 (230.4 kbits/s) | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 19 N |
| ENA58IL-R15YY5-1212SG1-RBY:01 | 70161915 | 12 Bit | 0.1 ... 2 MBit/s | DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz | 24 N |
| ESM78E-P | T191933 | up to 16 Bit | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | 60 N |

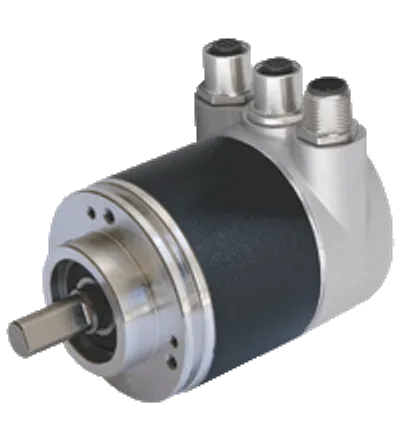

| ENA58PL-S***-B17 | T209829 | up to 16 Bit | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 40 N |

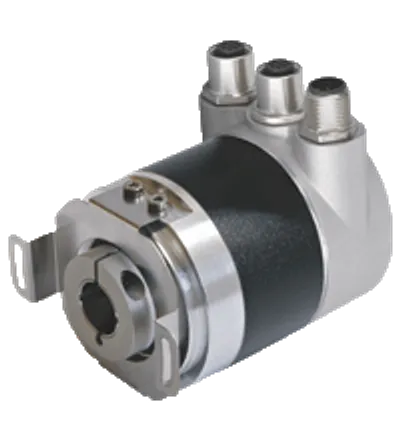

| ENA58PL-R***-B17 | T209828 | up to 16 Bit | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 24 N |

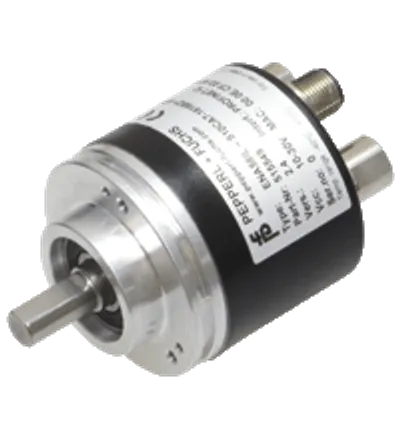

| ENA58IL-S***-B17 | T209827 | up to 16 Bit | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 40 N |

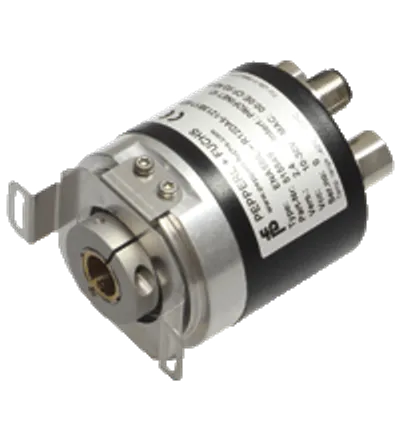

| ENA58IL-R***-B17 | T209826 | up to 16 Bit | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz | 24 N |

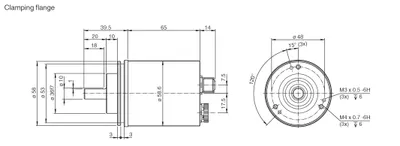

| ENA58PL-S***-CANopen redundant | T209188 | up to 16 Bit | min. 20 kBit/s , max. 1 MBit/s | DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz | 40 N |

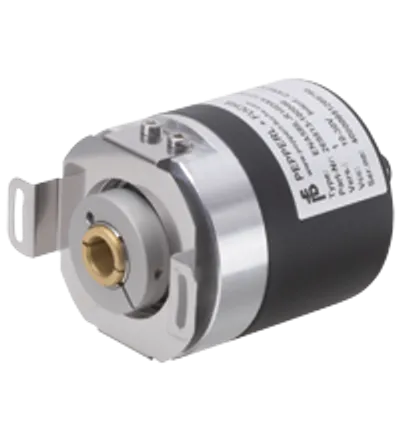

| ENA58PL-R***-CANopen redundant | T209187 | up to 16 Bit | min. 20 kBit/s , max. 1 MBit/s | DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz | 24 N |
| ESM58N-F1AIZR0BY-1213:01 | — | — | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | — |
| EVM58N-032IZR0BY-1213:01 | — | — | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | — |
| EVS58N-011IZR0BY-0013:01 | — | — | 100 MBit/s | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | — |
