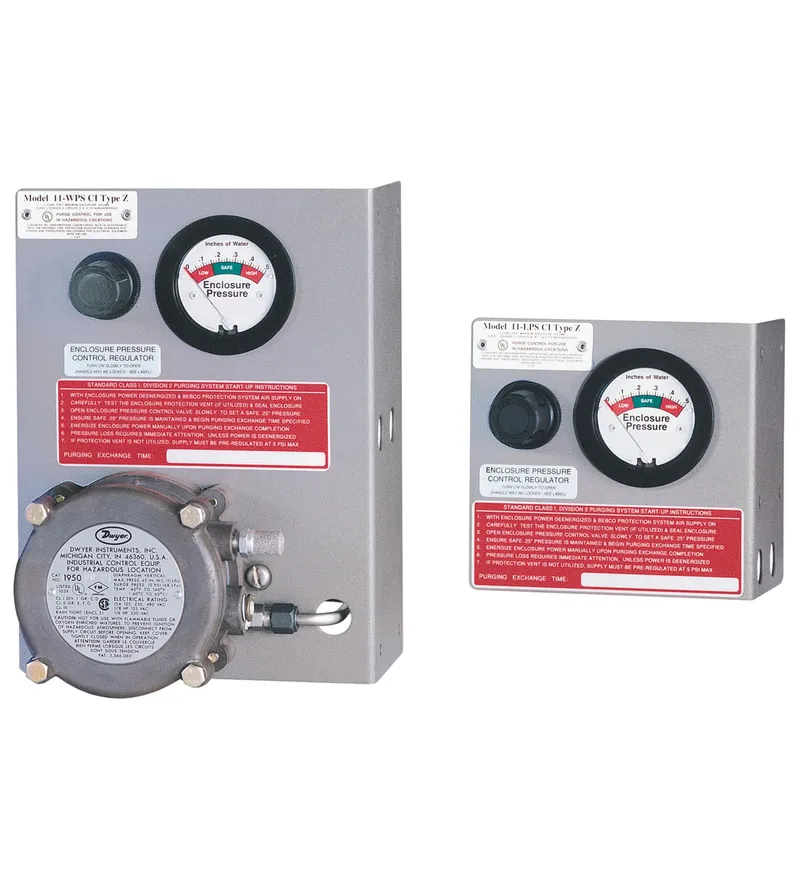

Pepperl Fuchs 11

Series control unit, Type Y and Z

MPN: 11
Category: Purge and Pressurization System (Type Z)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs 11?

NFPA 70, NFPA 496, ISA 12.4 standards

Optional alarm output indicates air lock failure

Type Y system certified for Class I and Class II, Division 1 to Division 2

Type Z system certified for Class I and Class II, Division 2 to nonhazardous area

Class I enclosure volume up to 2 ft3

Class II enclosure volume up to 10 ft3

Type Y & Z pressurization system for Class I and II areas

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T156443
Series	11
System	Type Y Purge , Type Z Purge
Hazardous environment	gas
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Connection

Terminal blocks

Output

Output I	-WPS-
Output type	Switch contacts
Contact loading	120 VAC @ 15 A

Pneumatic parameters

Protective gas supply	instrument grade air or inert gas
Pressure requirement	5 - 120 psi (With EPV-1 vent. Systems installed without vent must be equipped with redundant regulator set to 5 psi max.)
Safe pressure	Setpoint: Class I: 0.25" (6.35 mm); Class II: 1.0" (25.4 mm) Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr)

Ambient conditions

Ambient temperature

4.4 ... 49 °C (39.9 ... 120.2 °F)

Mechanical specifications

Connection type	System supply fitting: 1/4" tube fitting Enclosure supply fitting: 1/4" tube fitting Enclosure reference fitting: 1/4" tube fitting Switch conduit port size: 1/2" FPT
Material	Regulator body: zinc w/enamel finish Regulator handle: polycarbonate Enclosure pressure gauge: ABS plastic Tube fittings: 316 ss forged body Tubing: 316 ss 1/4" .035 welded System nameplate: silk screened Lexan® & ss Fastener hardware: alum. & stainless steel Mounting plate: 316 14 ga #3 brush ss EXP pressure switch body: anodized cast aluminum Enclosure warning nameplate: silk screened ss
Mass	11-LPS-* 2.3 kg (5 lb) 11-WPS-* 4.5 kg (10 lb)

International approvals

FM approval	Type Y LPS: Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups F, G WPS: Class I, Division 1, Groups C, D; Class II, Division 1, Groups F, G Type Z LPS: Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G WPS: Class I, Division 2, Groups C, D; Class II, Division 2, Groups F, G
UL approval: cULus	Type Y LPS: Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups F, G WPS: Class I, Division 1, Groups C, D; Class II, Division 1, Groups F, G Type Z LPS: Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G WPS: Class I, Division 2, Groups C, D; Class II, Division 2, Groups F, G

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Installation and Operation Manual: Model 11 Type Y or Z Purge/Pressurization SystemPDF · 2.9 MB

Certificates (1)

UL Hazardous Location (E184741 (RFPW, RFPW7))PDF · 197 kB
