Pepperl Fuchs 10E-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Enviro-Line) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10E-* be shipped?
10E-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10E-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10E-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10E-*, subject to availability and destination.

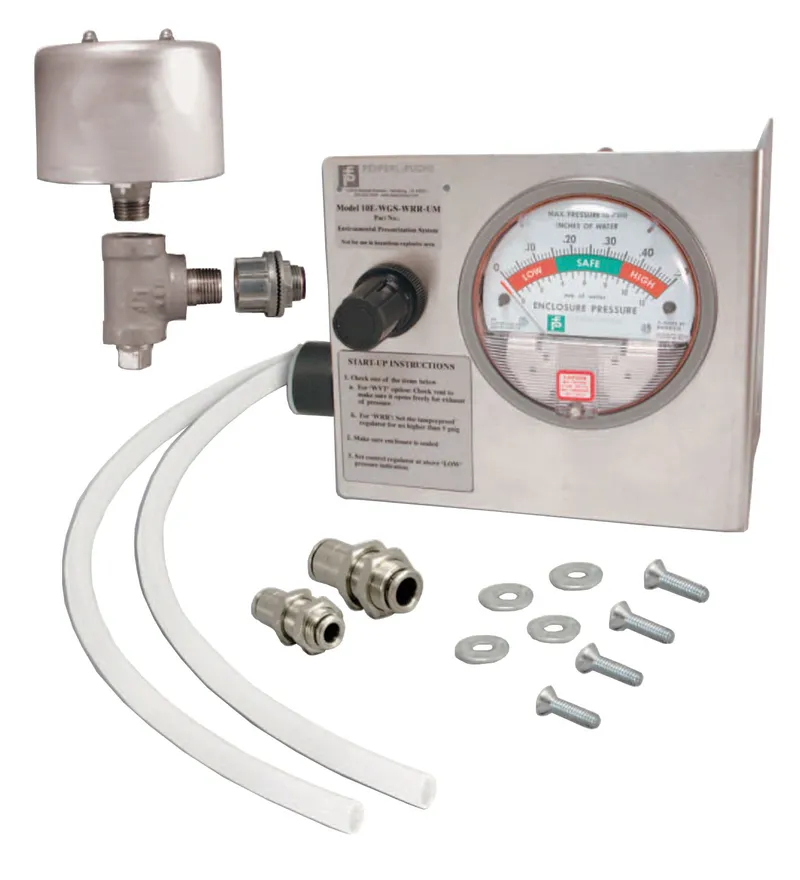

10E Series control unit, Enviro-Line environmental purge. Environmental purge for nonhazardous dusty/dirty areas. Series: Enviro-Line. System: Enviro-Line. Connection: Terminal blocks. Output I: -WGS-. Output typeSwitch contactsContact loading15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC: . Output type: Switch contacts. Contact loading: 15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC. Protective gas supply: instrument grade air or inert gas. Pressure requirement: 5 ... 120 psi (.34 ... 8.3 bar) (34 ... 827 kPa). Enclosure pressure: 0.5" wc (12.5 mm wc) (1.25 mbar) (125 Pa). Flow rate for leakage compensation: 0.1 ... 3.5 SCFH (2.83 ... 99.12 l/hr). Ambient temperature: -28.9 ... 48.9 °C (-20 ... 120 °F). Connection type: System supply fitting: GBC-6, 3/8 inch bulkhead fitting System supply tubing: 3/8 inch nylon or Polyethylene tubing Reference fitting: GBC-4, 1/4 inch bulkhead fitting Reference tubing: 1/4 inch nylon or Polyethylene tubing. Material: Regulator body: zinc w/enamel finishRegulator handle: polycarbonateEnclosure pressure gauge: aluminum w/enamel finishTube fittings, GBC-: nickel plated brassTubing: nylon or polyethyleneFastener hardware: aluminum & stainless steelMounting plate: 316L, 14 ga. stainless steel. Mass: 10E-WGS-WRR-_: 4.54 kg (10 lb) 10E-LGS-WRR-_: 3.18 kg (7 lb) 10E-WGS-WVT-_: 6.35 kg (14 lb) 10E-LGS-WVT-_: 4.99 kg (11 lb)
Specifications
General specifications
| Series | Enviro-Line |
| System | Enviro-Line |
Electrical specifications
| Connection | Terminal blocks |
Output
| Output I | -WGS- |
| Output typeSwitch contactsContact loading15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC | Output type |
| Output type | Switch contacts |
| Contact loading | 15 A @ 120 - 480 VAC, 60 Hz resistive load; 1/8 HP @ 125 VAC |
Pneumatic parameters
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 5 ... 120 psi (.34 ... 8.3 bar) (34 ... 827 kPa) |
| Enclosure pressure | 0.5" wc (12.5 mm wc) (1.25 mbar) (125 Pa) |
| Flow rate for leakage compensation | 0.1 ... 3.5 SCFH (2.83 ... 99.12 l/hr) |
Ambient conditions
| Ambient temperature | -28.9 ... 48.9 °C (-20 ... 120 °F) |
Mechanical specifications
| Connection type | System supply fitting: GBC-6, 3/8 inch bulkhead fitting System supply tubing: 3/8 inch nylon or Polyethylene tubing Reference fitting: GBC-4, 1/4 inch bulkhead fitting Reference tubing: 1/4 inch nylon or Polyethylene tubing |
| Material | Regulator body: zinc w/enamel finishRegulator handle: polycarbonateEnclosure pressure gauge: aluminum w/enamel finishTube fittings, GBC-: nickel plated brassTubing: nylon or polyethyleneFastener hardware: aluminum & stainless steelMounting plate: 316L, 14 ga. stainless steel |
| Mass | 10E-WGS-WRR-_: 4.54 kg (10 lb) 10E-LGS-WRR-_: 3.18 kg (7 lb) 10E-WGS-WVT-_: 6.35 kg (14 lb) 10E-LGS-WVT-_: 4.99 kg (11 lb) |
