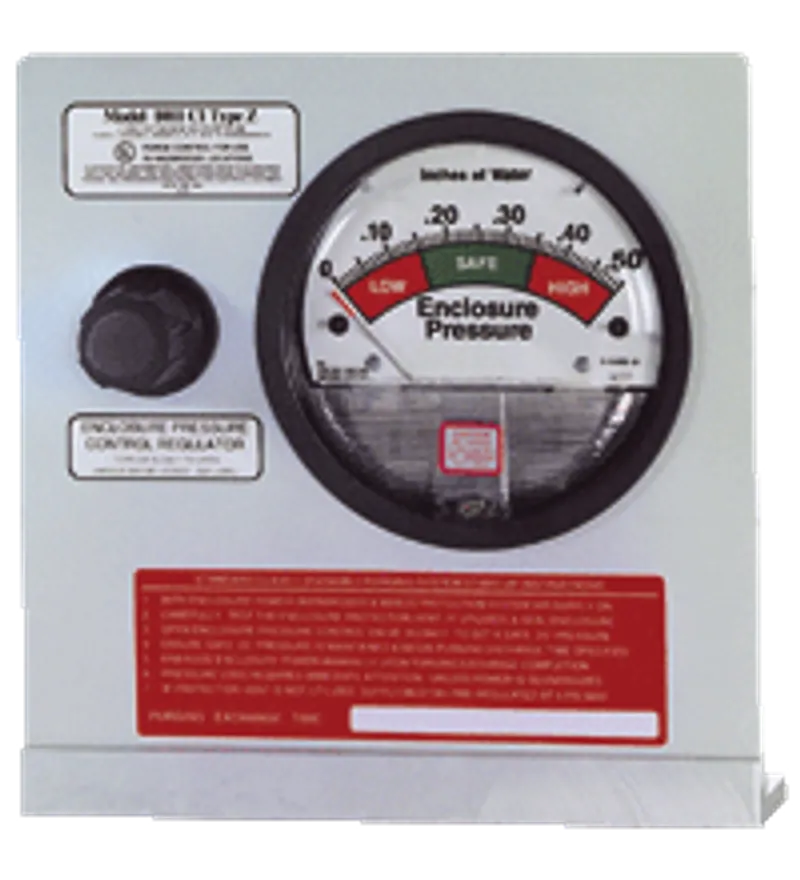

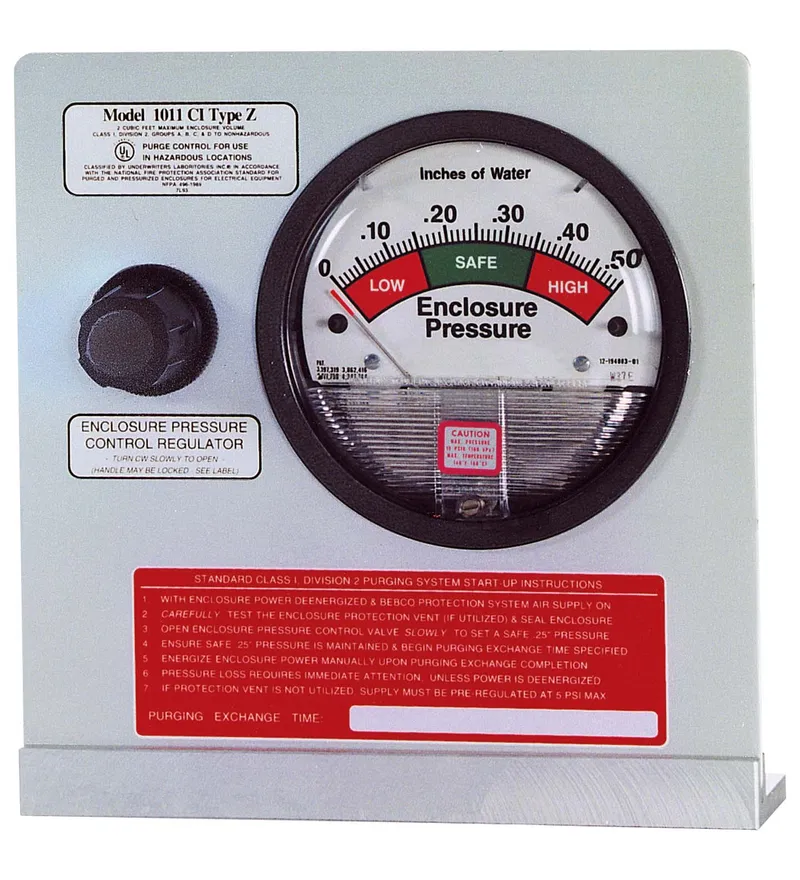

Pepperl Fuchs 1011
Series control unit, Type Y and Z
- MPN
- 1011
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs 1011?
NFPA 70, NFPA 496, ISA 12.4 standards
Optional alarm output indicates air lock failure
Type Z system certified for Class I and Class II, Division 2 to nonhazardous area
Class I enclosure volume up to 2 ft3
Class II enclosure volume up to 10 ft3
Type Z purge and pressurization system for Class I and Class II areas
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T156448 |
| Series | 1011 |
| System | Type Y Purge , Type Z Purge |
| Hazardous environment | gas |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Pneumatic parameters
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 5 - 120 psi (With EPV-1 vent. Systems installed without vent must be equipped with redundant regulator set to 5 psi max.) |
| Safe pressure | Setpoint: Class I: 0.25" (6.35 mm); Class II: 1.0" (25.4 mm) Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr) |
Ambient conditions
| Ambient temperature | -29 ... 49 °C (-20.2 ... 120.2 °F) |
Mechanical specifications
| Connection type | System supply fitting: 1/4" tube fitting Enclosure supply fitting: 1/4" tube fitting Enclosure reference fitting: 1/4" tube fitting |
| Material | Regulator body: brass, zinc w/enamel finish Regulator handle: polycarbonate Enclosure pressure gauge: alum w/ enamel finish Tube fittings: 316 ss forged body Tubing: 316 ss 1/4" .035 welded System nameplate: silk screened Lexan® Fastener hardware: alum. & stainless steel Mounting plate & bracket: anodized aluminum Enclosure warning nameplate: silk screened ss |
| Mass | 3.2 kg (7 lb) |
International approvals
| UL approval: cULus | Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups F, G |
