Pepperl Fuchs 1012
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Type Y) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1012 be shipped?
1012 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1012 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1012 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1012, subject to availability and destination.

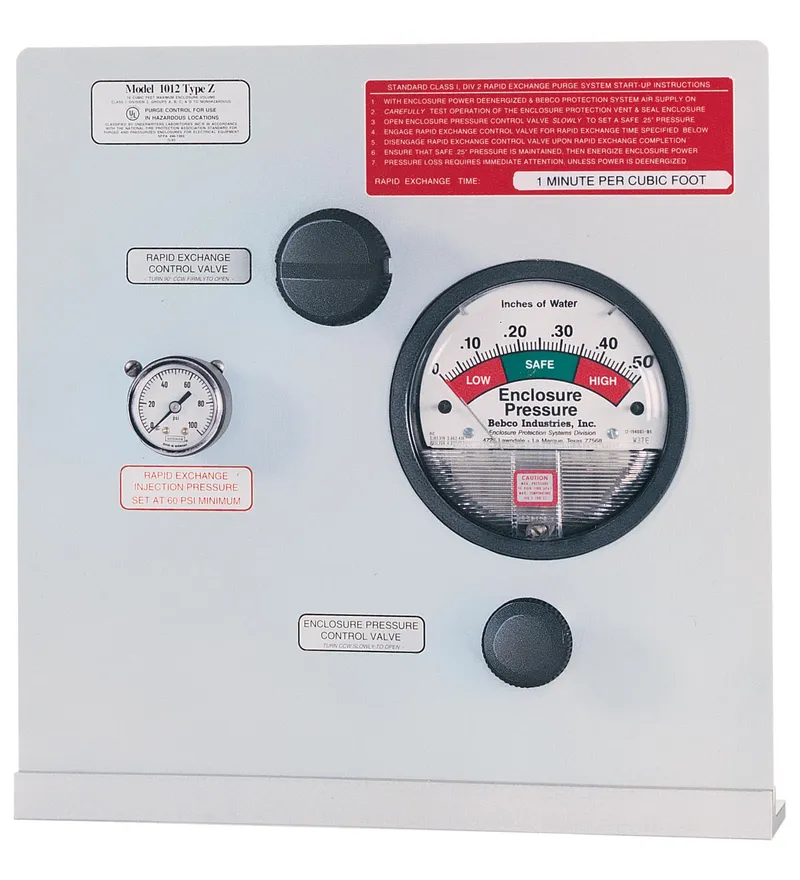

1012 Series control unit, Type Y and Z. Type Z purge and pressurization system for Class I areas. Series: 1012. System: Type Y Purge , Type Z Purge. Hazardous environment: gas. Protective gas supply: instrument grade air or inert gas. Pressure requirement: 80 - 120 psi. Safe pressure: Setpoint: 0.25" (6.35 mm)Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr). Process conditions: . Capacity and filtration1.5 oz @ 20 µExchange pressure3" - 5"Exchange flow rate4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange)Exchange time1 min / ft3: . Capacity and filtration: 1.5 oz @ 20 µ. Exchange pressure: 3" - 5". Exchange flow rate: 4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange). Exchange time: 1 min / ft3. Ambient temperature: -29 ... 49 °C (-20.2 ... 120.2 °F). Connection type: System supply port: 1/4" FTPEnclosure supply fitting: 1/4" tube fittingEnclosure reference fitting: 1/4" tube fitting. Material: Filter regulator body: zinc w/enamel finishRegulator handle & bowl: polycarbonateEnclosure pressure gauge: alum. w/enamel finishRapid Exchange® gauge: poly case and brass tubeTube fittings & valves: 316 ss forged body Tubing: 316 ss 1/4" .035 weldedSystem nameplate: silk-screened Lexan® & 6061 aluminumFastener hardware: alum. & stainless steelMounting plate: 6061 AluminumEnclosure warning nameplate: silk-screened stainless steel. Mass: 4.5 kg (10 lb). UL approval: . cULusClass I, Division 2, Groups A, B, C, D: . cULus: Class I, Division 2, Groups A, B, C, D
Specifications
General specifications
| Series | 1012 |
| System | Type Y Purge , Type Z Purge |
| Hazardous environment | gas |
Pneumatic parameters
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 80 - 120 psi |
| Safe pressure | Setpoint: 0.25" (6.35 mm)Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr) |
Operating conditions
| Process conditions | |
| Capacity and filtration1.5 oz @ 20 µExchange pressure3" - 5"Exchange flow rate4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange)Exchange time1 min / ft3 | Capacity and filtration |
| Capacity and filtration | 1.5 oz @ 20 µ |
| Exchange pressure | 3" - 5" |
| Exchange flow rate | 4 SCFM / 240 SCFH (With regulator set to 60 psi min. during exchange) |
| Exchange time | 1 min / ft3 |
Ambient conditions
| Ambient temperature | -29 ... 49 °C (-20.2 ... 120.2 °F) |
Mechanical specifications
| Connection type | System supply port: 1/4" FTPEnclosure supply fitting: 1/4" tube fittingEnclosure reference fitting: 1/4" tube fitting |
| Material | Filter regulator body: zinc w/enamel finishRegulator handle & bowl: polycarbonateEnclosure pressure gauge: alum. w/enamel finishRapid Exchange® gauge: poly case and brass tubeTube fittings & valves: 316 ss forged body Tubing: 316 ss 1/4" .035 weldedSystem nameplate: silk-screened Lexan® & 6061 aluminumFastener hardware: alum. & stainless steelMounting plate: 6061 AluminumEnclosure warning nameplate: silk-screened stainless steel |
| Mass | 4.5 kg (10 lb) |
International approvals
| UL approval | |
| cULusClass I, Division 2, Groups A, B, C, D | cULus |
| cULus | Class I, Division 2, Groups A, B, C, D |
