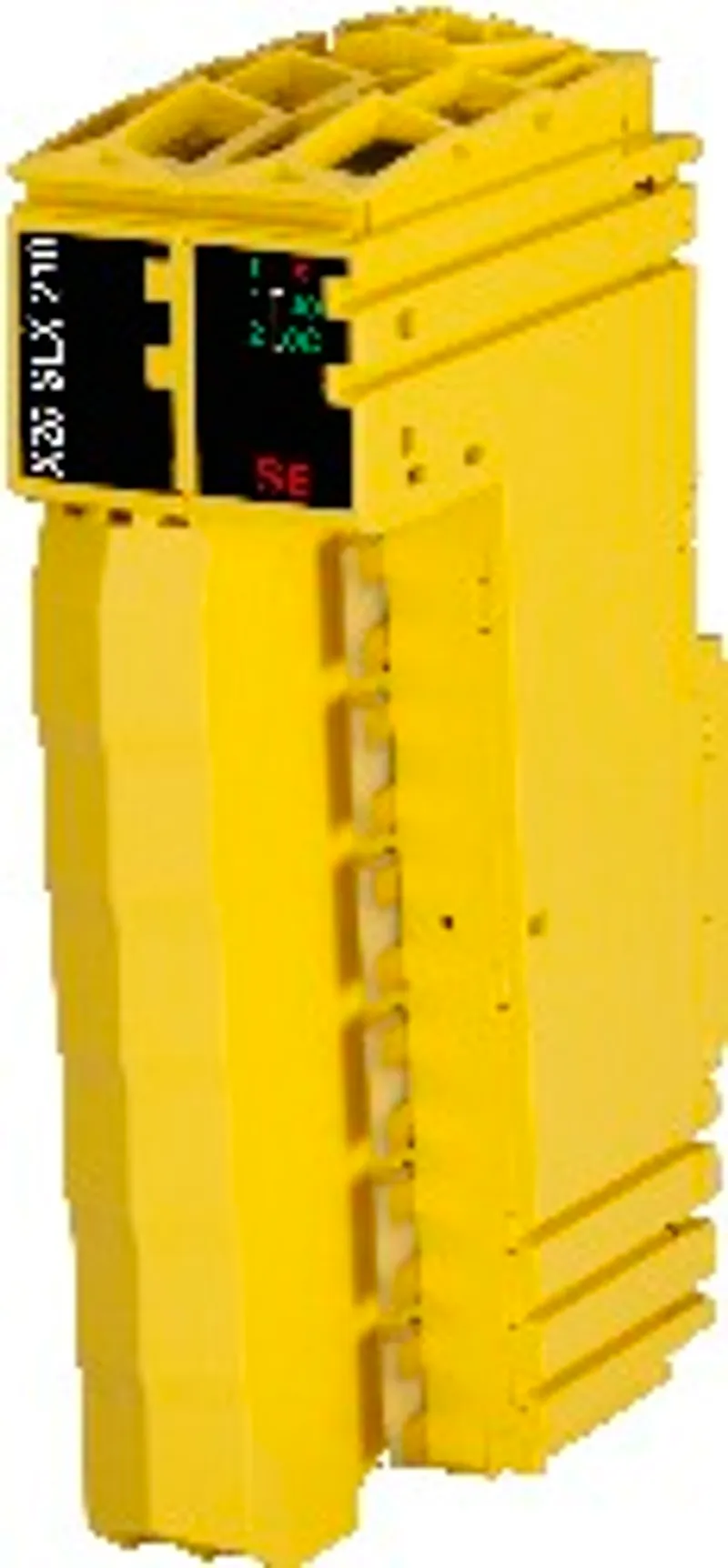

B&R X20SLX210

I/O module, 2 safe type A digital inputs, 2 pulse outputs

MPN: X20SLX210
Category: Intelligent programmable modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20SLX210?

openSAFETY manager for up to 10 SafeNODEs

Flexibly programmable using Automation Studio / SafeDESIGNER

Innovative management of safe machine options (SafeOPTION)

Parameter and configuration management

2 safe digital inputs

2 pulse outputs

Sink circuit

Software input filter configurable for each channel

The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.

In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed in conjunction with Automation Runtime on the standard CPU.

In addition, SafeLOGIC-X products have the same I/O properties as the associated SafeIO products (X20SIx1x0).

Specifications

Short description

I/O module

2 safe type A digital inputs, 2 pulse outputs, 24 VDC, SafeLOGIC-X technology

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Power consumption – Bus	0.25 W
Power consumption – Internal I/O	1 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xC5B0
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	0.3 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)

Safety characteristics

Note	See section "Safety characteristics".

Limit values for SafeDESIGNER application

Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – FB instances	256 (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker memory	5120 bytes (0x1400) (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Stack memory	2048 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe input data	128 bytes, 68 bytes of which are usable for modules (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe output data	64 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard input data	64 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard output data	64 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker count	256 (note: For a parameter description, see section)
Additional SafeDESIGNER limit values – Max. number of function block types	64
Additional SafeDESIGNER limit values – Max. number of force variables	8
Additional SafeDESIGNER limit values – Max. number of variable with variable status	128

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital inputs

Input filter – Hardware	≤150 µs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	2
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 3.28 mA (note: The input current specifications refer to the switched-on state of the input.)
Input resistance	Min. 7.33 kΩ
Error detection time	200 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Pulse outputs

Quantity	2
Variant	Push-Pull
Nominal output current	50 mA
Output protection	Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.)
Peak short-circuit current	25 A for 15 µs
Short-circuit current	100 mA eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	60 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	100 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
