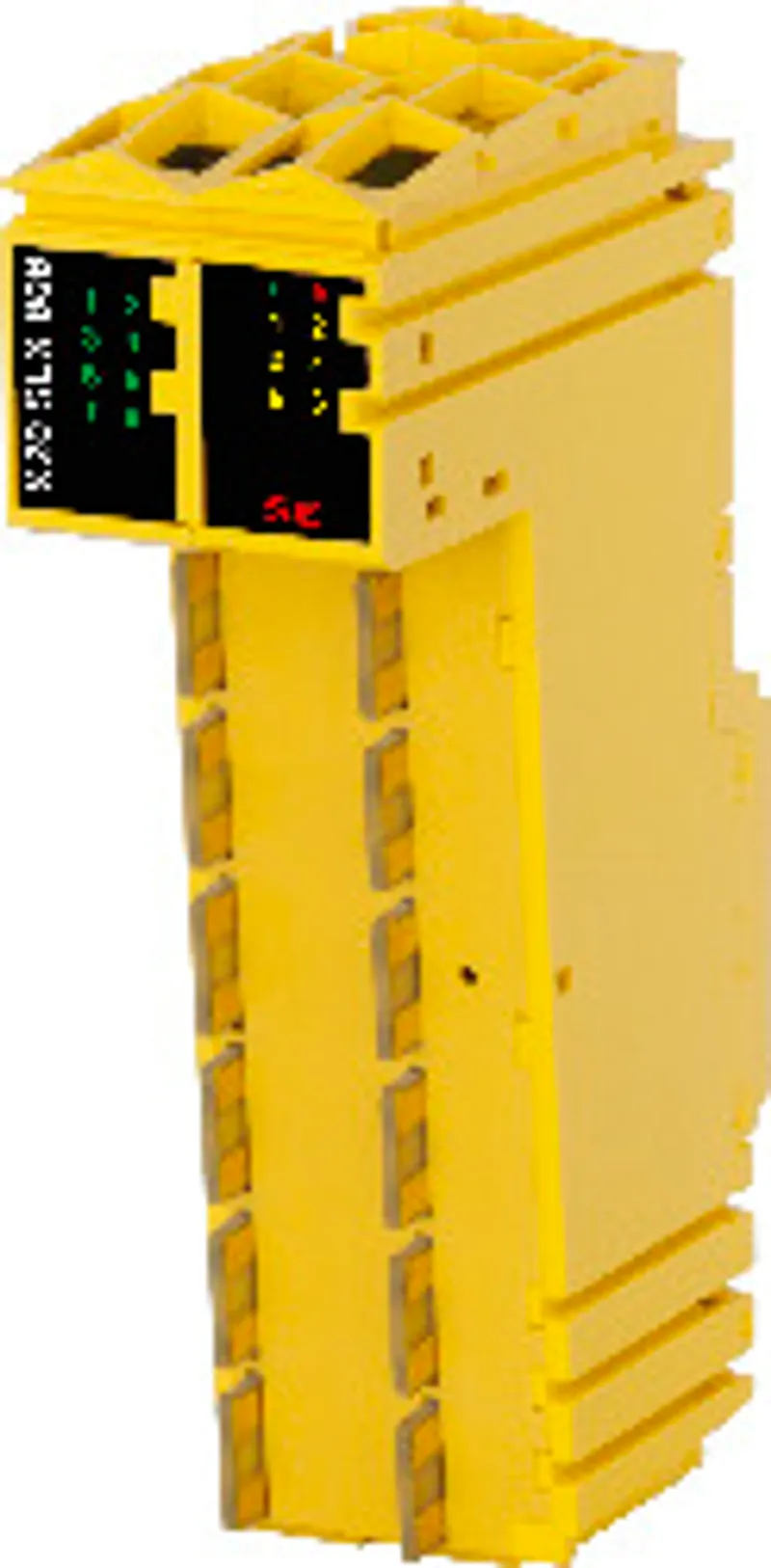

B&R X20SLX806

openSAFETY manager for up to 10 SafeNODEsFlexibly programmable using Automation Studio / SafeDESIGNERInnovative management of safe machine options (SafeOPTION)Parameter and configuration management8 safe digital inputs, sink circuit4 pulse outputsSoftware input filter configurable for each channel6 safe digital outputs, output type B with 0.2 A, source circuitIntegrated output protection The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed in conjunction with Automation Runtime on the standard CPU.In addition, SafeLOGIC-X products have the same I/O properties as the associated SafeIO products (X20SC0xxx).
